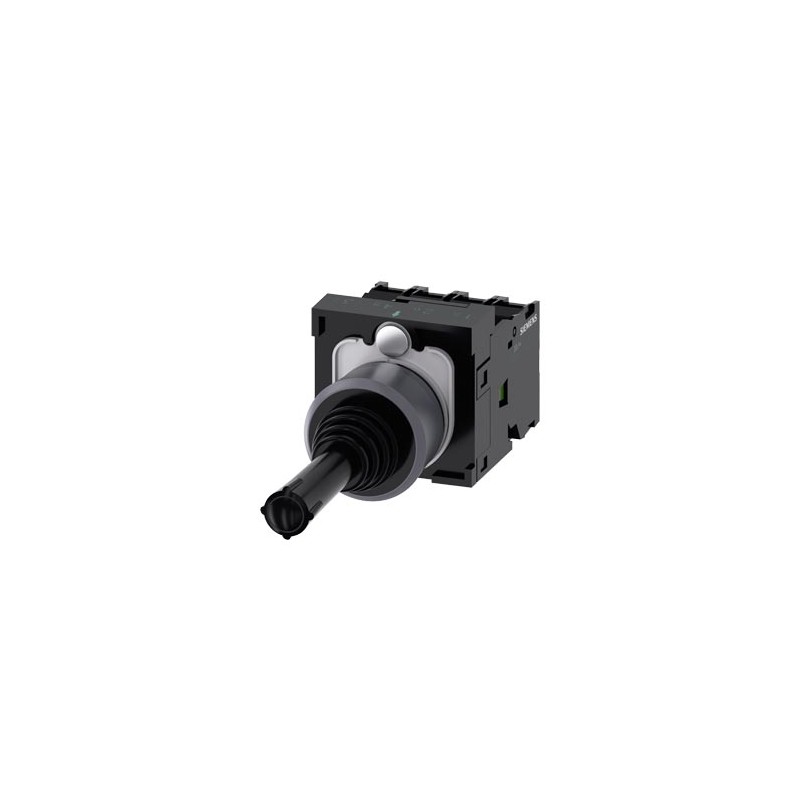

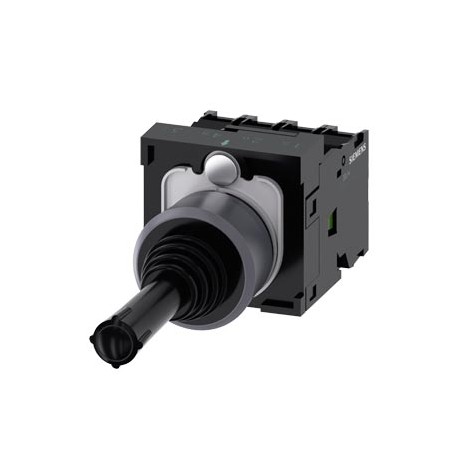

3SU1130-7AF10-3QA0 SIEMENS Coordinate switch, 22 mm, round, plastic with metal front ring, black, 4 switch p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1130-7AF10-3QA0 SIEMENS Coordinate switch, 22 mm, round, plastic with metal front ring, black, 4 switch p..

3SU1130-7AF10-3QA0

SIEMENS

Coordinate switch, 22 mm, round, plastic with metal front ring, black, 4 switch positions, momentary contact type, without mechanical interlocking in O position, with holder, 1 NO, 1 NO, 1 NO, 1 NO, Spring-type terminal

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000632 - Control switch, Joystick

Value Unit
Rated operation current Ie at AC-21, 400 V (EF002417) -A
Centre mounting, hole diameter (EF002424) 22.3mm
Joy stick length (EF006524) 71.3mm
Number of actuation directions (EF002425) 4
Number of switch levels (EF000246) 4
Number of normally open contacts per actuation direction (EF002427) 4
Number of normally closed contacts per actuation direction (EF008263) 0
Number of make-and-break contacts per direction (EF005599) 0
With retraction in 0-position (EF002428) true
Locking in 0-position (EF006283) false
Coder (EF005666) false
Analogue output signal configurable (EF003236) false
With front ring (EF006014) true
Material front ring (EF005972) Other
Colour front ring (EF002429) Other
Degree of protection (IP) (EF005474) IP65/IP67
Degree of protection (NEMA) (EF011959) -


Coordinate switch, 22 mm, round, plastic with metal front ring, black, 4 switch positions, momentary contact type, without mechanical interlocking in O position, with holder, 1 NO, 1 NO, 1 NO, 1 NO, Spring-type terminal
Product brand nameSIRIUS ACT
Product designationCoordinate switches
Design of the productComplete unit
Product type designation3SU1
Product linePlastic with metal front ring, matt, 22 mm
Manufacturer's article number
● 1 of supplied contact module3SU1400-1AA10-1BA0
● 2 of supplied contact module3SU1400-1AA10-1BA0
● 3 of supplied contact module3SU1400-1AA10-1BA0
● 4 of supplied contact module3SU1400-1AA10-1BA0
● of the supplied holder3SU1500-0BA10-0AA0
● of the supplied actuator3SU1030-7AF10-0AA0
Enclosure
Shape of the enclosure frontround
Actuator
Design of the operating mechanismwithout mechanical interlock
Manner of function of the actuating elementmomentary contact type
Direction of actuationhorizontal / vertical
Product extension optional Light sourceNo
Color
● of the actuating elementblack
Material of the actuating elementplastic
Shape of the actuating elementExtended handle
Outer diameter of the actuating element30.5 mm
Number of contact modules4
Number of switching positions4
Maximum deflection angle [°]30°
Front ring
Product component front ringYes
Design of the front ringhigh
Material of the front ringMetal, matt
Color of the front ringsand gray
Holder
Material of the holderPlastic
General technical data
Product function
● positive openingNo
Insulation voltage
● rated value500 V
Degree of pollution3
Type of voltage
● of the operating voltageAC/DC
Surge voltage resistance rated value6 kV
Protection class IPIP65, IP67
● of the terminalIP20
Shock resistance
● acc. to IEC 60068-2-27Sinusoidal half-wave 50 g / 11 ms
● for railway applications acc. to DIN EN 61373Category 1, Class B
Vibration resistance
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications acc. to DIN EN 61373Category 1, Class B
Operating frequency maximum3 600 1/h
Mechanical service life (switching cycles)
● as operating period per direction of actuation typical500 000
Electrical endurance (switching cycles)
● typical10 000 000
Electrical endurance (switching cycles) with contactors 3RT1015 to 3RT1026 typical10 000 000
Thermal current10 A
Reference code acc. to DIN EN 81346-2S
Reference code acc. to DIN EN 61346-2S
Continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
Continuous current of the quick DIAZED fuse link10 A
Continuous current of the DIAZED fuse link gG10 A
Operating voltage
● at AC
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC
— rated value5 ... 500 V
Power Electronics
Contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
Design of the contact of auxiliary contactsSilver alloy
Number of NC contacts for auxiliary contacts0
Number of NO contacts for auxiliary contacts4
Connections/ Terminals
Type of electrical connection
● of modules and accessoriesSpring-type terminal
Type of connectable conductor cross-sections
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG conductors2x (18 ... 14)
Tightening torque of the screws in the bracket1 ... 1.2 N·m
Tightening torque
● for auxiliary contacts with screw-type terminals0.8 ... 1 N·m
Safety related data
B10 value
● with high demand rate acc. to SN 31920250 000
Proportion of dangerous failures
● with low demand rate acc. to SN 3192020 %
● with high demand rate acc. to SN 3192020 %
Failure rate [FIT]
● with low demand rate acc. to SN 31920100 FIT
T1 value for proof test interval or service life acc. to IEC 6150820 y
Ambient conditions
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
Mounting typefront panel mounting
● of modules and accessoriesFront plate mounting
Height40 mm
Width40 mm
Shape of the installation openinground
Mounting diameter22.3 mm
Positive tolerance of installation diameter0.4 mm
Mounting height71.3 mm
Installation width30.5 mm
Installation depth53.7 mm
Certificates/ approvals
General Product ApprovalDeclaration of Conformity

CCC

CSA

UL

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/20/2020


Product
Article Number (Market Facing Number)3SU1130-7AF10-3QA0
Product DescriptionCoordinate switch, 22 mm, round, plastic with metal front ring, black, 4 switch positions, momentary contact type, without mechanical interlocking in O position, with holder, 1 NO, 1 NO, 1 NO, 1 NO, Spring-type terminal
Product familyActuators and indicators, 22 mm, plastic with metal front ring, matte
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group41J
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,115 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension80,00 x 130,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621046532
UPC804766475498
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originSwitzerland
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-04
eClass7.127-37-14-04
eClass827-37-14-04
eClass927-37-14-04
eClass9.127-37-14-04
ETIM5EC000632
ETIM6EC000632
ETIM7EC000632
IDEA45280
UNSPSC1539-12-22-27
