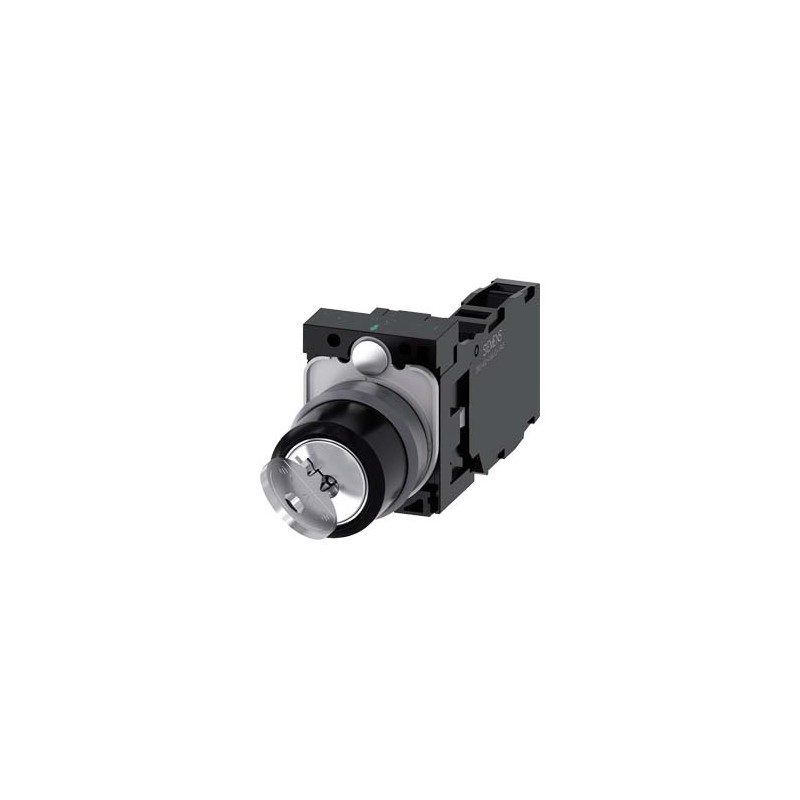

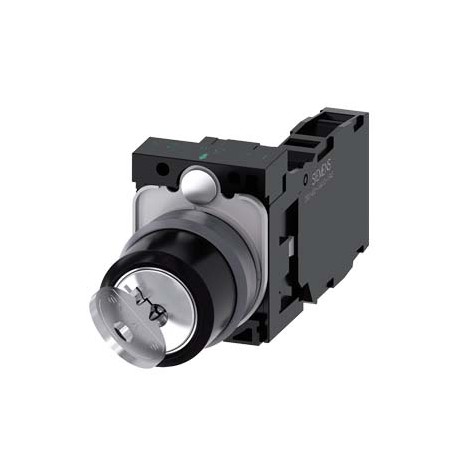

3SU1130-4BF11-1FA0 SIEMENS RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock numb.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1130-4BF11-1FA0 SIEMENS RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock numb..

3SU1130-4BF11-1FA0

SIEMENS

RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I, with holder, 1 NO+1 NC, screw terminal

More details


Low-voltage industrial components > Selector switch, complete

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


ETIM: EC001029 - Selector switch, complete

Value Unit
Type of control element (EF006976) -
Degree of protection (IP) (EF005474) -
Type of electric connection (EF003961) -
Supply voltage (EF004127) -V
Number of switch positions (EF000231) 2
Suitable for illumination (EF001142) false
With light source (EF005905) false
Colour button (EF000190) Silver
Hole diameter (EF000079) 22.3mm
Width opening (EF004565) 29.5mm
Height opening (EF004778) 49.4mm
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
Degree of protection (NEMA) (EF011959) NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 1
With front ring (EF006014) true
Material front ring (EF005972) Other
Colour front ring (EF002429) Other


RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I, with holder, 1 NO+1 NC, screw terminal
Product brand nameSIRIUS ACT
Product designationKey-operated switches
Design of the productComplete unit
Product type designation3SU1
Product linePlastic with metal front ring, matt, 22 mm
Manufacturer's article number
● of included key3SU1950-0FB80-0AA0
● of supplied contact module3SU1400-1AA10-1FA0
● 1 of supplied contact module3SU1400-1AA10-1FA0
● of the supplied holder3SU1500-0AA10-0AA0
● of the supplied actuator3SU1030-4BF11-0AA0
Enclosure
Shape of the enclosure frontround
Number of command points1
Actuator
Manner of function of the actuating elementlatching, 90° (10:30 h/13:30 h)
Product extension optional Light sourceNo
Color
● of the actuating elementsilver
Material of the actuating elementmetal
Shape of the actuating elementKey
Outer diameter of the actuating element29.5 mm
Number of contact modules1
Number of switching positions2
Switch position for key distractionO+I
Actuating angle
● clockwise90°
Lock makeRONIS
Key numberSB30
Front ring
Product component front ringYes
Design of the front ringStandard
Material of the front ringMetal, matt
Color of the front ringsand gray
Holder
Material of the holderPlastic
General technical data
Product function
● positive openingYes
Product component
● Light sourceNo
Insulation voltage
● rated value500 V
Degree of pollution3
Type of voltage
● of the operating voltageAC/DC
Surge voltage resistance rated value6 kV
Protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
Degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
Shock resistance
● acc. to IEC 60068-2-27Sinusoidal half-wave 50 g / 11 ms
● for railway applications acc. to DIN EN 61373Category 1, Class B
Vibration resistance
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications acc. to DIN EN 61373Category 1, Class B
Operating frequency maximum1 800 1/h
Mechanical service life (switching cycles)
● typical300 000
Electrical endurance (switching cycles)
● typical10 000 000
Thermal current10 A
Reference code acc. to DIN EN 81346-2S
Reference code acc. to DIN EN 61346-2S
Continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
Continuous current of the quick DIAZED fuse link10 A
Continuous current of the DIAZED fuse link gG10 A
Operating voltage
● at AC
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC
— rated value5 ... 500 V
Power Electronics
Contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
Design of the contact of auxiliary contactsSilver alloy
Number of NC contacts for auxiliary contacts1
Number of NO contacts for auxiliary contacts1
Connections/ Terminals
Type of electrical connection
● of modules and accessoriesScrew-type terminal
Type of connectable conductor cross-sections
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG conductors2x (18 ... 14)
Tightening torque of the screws in the bracket1 ... 1.2 N·m
Tightening torque
● for auxiliary contacts with screw-type terminals0.8 ... 0.9 N·m
Ambient conditions
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
Mounting type
● of modules and accessoriesFront plate mounting
Height40 mm
Width30 mm
Shape of the installation openinground
Mounting diameter22.3 mm
Positive tolerance of installation diameter0.4 mm
Mounting height49.4 mm
Installation width29.5 mm
Installation depth71.7 mm
Certificates/ approvals
General Product ApprovalDeclaration of Conformity

CCC

CSA

UL

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/20/2020


Product
Article Number (Market Facing Number)3SU1130-4BF11-1FA0
Product DescriptionRONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I, with holder, 1 NO+1 NC, screw terminal
Product familyActuators and indicators, 22 mm, plastic with metal front ring, matte
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group41J
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,100 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension70,00 x 130,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209971660
UPC804766475276
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-43
eClass7.127-37-12-43
eClass827-37-12-43
eClass927-37-12-43
eClass9.127-37-12-43
ETIM4EC001029
ETIM5EC001029
ETIM6EC001029
ETIM7EC001029
IDEA45208
UNSPSC1539-12-22-14
