3SU1102-6AA20-1AA0
SIEMENS
1

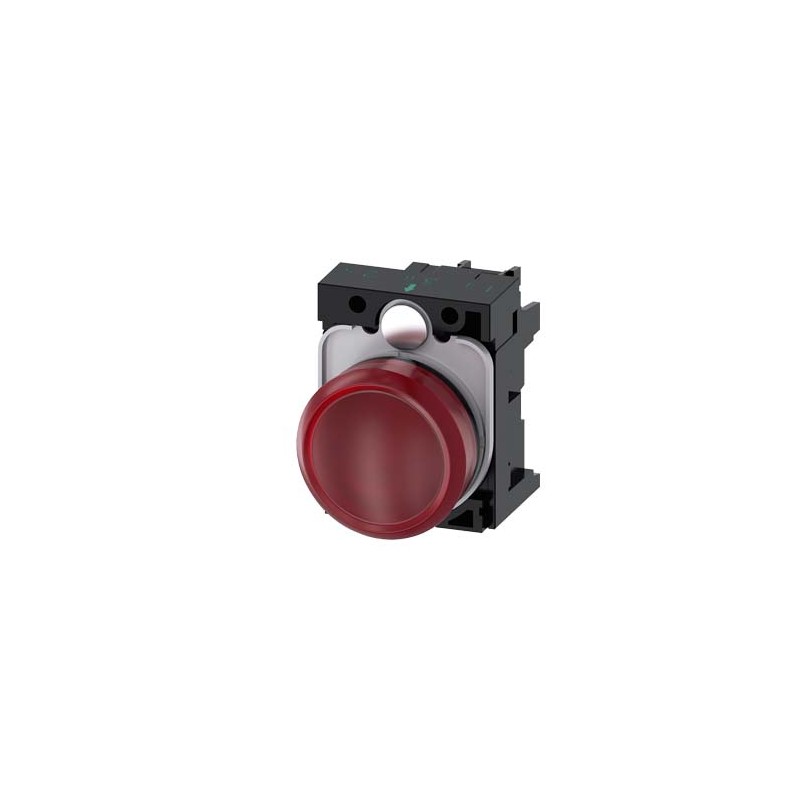

Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, screw terminal
Low-voltage industrial components > Indicator light complete
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, screw terminal | ||||||||||||||||||||||||||||||||||||||
product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
product designation | Indicator lights | |||||||||||||||||||||||||||||||||||||
design of the product | Complete unit | |||||||||||||||||||||||||||||||||||||
product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
product line | Plastic, black, 22 mm | |||||||||||||||||||||||||||||||||||||
manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
● of supplied LED module | 3SU1401-1BB20-1AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of supplied repeater | 3SU1001-6AA20-0AA0 | |||||||||||||||||||||||||||||||||||||
Enclosure | ||||||||||||||||||||||||||||||||||||||
number of command points | 1 | |||||||||||||||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||||||||||||||
product extension optional light source | Yes | |||||||||||||||||||||||||||||||||||||
color | ||||||||||||||||||||||||||||||||||||||
● of the actuating element | red | |||||||||||||||||||||||||||||||||||||
material of the actuating element | plastic | |||||||||||||||||||||||||||||||||||||
shape of the actuating element | round | |||||||||||||||||||||||||||||||||||||
outer diameter of the actuating element | 29.45 mm | |||||||||||||||||||||||||||||||||||||
Front ring | ||||||||||||||||||||||||||||||||||||||
product component front ring | No | |||||||||||||||||||||||||||||||||||||
Holder | ||||||||||||||||||||||||||||||||||||||
material of the holder | Plastic | |||||||||||||||||||||||||||||||||||||
Display | ||||||||||||||||||||||||||||||||||||||
number of LED modules | 1 | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
product component light source | Yes | |||||||||||||||||||||||||||||||||||||
insulation voltage rated value | 320 V | |||||||||||||||||||||||||||||||||||||
degree of pollution | 3 | |||||||||||||||||||||||||||||||||||||
surge voltage resistance rated value | 4 kV | |||||||||||||||||||||||||||||||||||||
protection class IP | IP66, IP67, IP69(IP69K) | |||||||||||||||||||||||||||||||||||||
● of the terminal | IP20 | |||||||||||||||||||||||||||||||||||||
degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 | |||||||||||||||||||||||||||||||||||||
shock resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
vibration resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
reference code according to IEC 81346-2 | P | |||||||||||||||||||||||||||||||||||||
Substance Prohibitance (Date) | 10/01/2014 | |||||||||||||||||||||||||||||||||||||
Supply voltage | ||||||||||||||||||||||||||||||||||||||
type of voltage of the supply voltage of the light source | AC/DC | |||||||||||||||||||||||||||||||||||||
supply voltage of the light source at AC | ||||||||||||||||||||||||||||||||||||||
● at 50 Hz rated value | 24 V | |||||||||||||||||||||||||||||||||||||
● at 60 Hz rated value | 24 V | |||||||||||||||||||||||||||||||||||||
● at 60 Hz rated value | 24 ... 24 V | |||||||||||||||||||||||||||||||||||||
supply voltage of the light source at DC | ||||||||||||||||||||||||||||||||||||||
● rated value | 24 V | |||||||||||||||||||||||||||||||||||||
● rated value | 24 ... 24 V | |||||||||||||||||||||||||||||||||||||
relative negative tolerance of the supply voltage | 20 % | |||||||||||||||||||||||||||||||||||||
relative positive tolerance of the supply voltage | 20 % | |||||||||||||||||||||||||||||||||||||
Control circuit/ Control | ||||||||||||||||||||||||||||||||||||||
inrush current maximum | 2 A | |||||||||||||||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
type of electrical connection | other | |||||||||||||||||||||||||||||||||||||
● of modules and accessories | Screw-type terminal | |||||||||||||||||||||||||||||||||||||
type of connectable conductor cross-sections | ||||||||||||||||||||||||||||||||||||||
● solid with core end processing | 2x (0.5 ... 0.75 mm²) | |||||||||||||||||||||||||||||||||||||
● solid without core end processing | 2x (1.0 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) | |||||||||||||||||||||||||||||||||||||
● at AWG cables | 2x (18 ... 14) | |||||||||||||||||||||||||||||||||||||
tightening torque of the screws in the bracket | 1 ... 1.2 N·m | |||||||||||||||||||||||||||||||||||||
tightening torque with screw-type terminals | 0.8 ... 0.9 N·m | |||||||||||||||||||||||||||||||||||||
Lamp | ||||||||||||||||||||||||||||||||||||||
type of light source | LED | |||||||||||||||||||||||||||||||||||||
color of the light source | red | |||||||||||||||||||||||||||||||||||||
light intensity | 450 ... 1 120 mcd | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
fastening method | front plate mounting | |||||||||||||||||||||||||||||||||||||
● of modules and accessories | Front plate mounting | |||||||||||||||||||||||||||||||||||||
height | 40 mm | |||||||||||||||||||||||||||||||||||||
width | 30 mm | |||||||||||||||||||||||||||||||||||||
shape of the installation opening | round | |||||||||||||||||||||||||||||||||||||
mounting diameter | 22.3 mm | |||||||||||||||||||||||||||||||||||||
positive tolerance of installation diameter | 0.4 mm | |||||||||||||||||||||||||||||||||||||
mounting height | 11.8 mm | |||||||||||||||||||||||||||||||||||||
installation width | 29.5 mm | |||||||||||||||||||||||||||||||||||||
installation depth | 49.7 mm | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 1/26/2022 | |||||||||||||||||||||||||||||||||||||
Date 5/12/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1102-6AA20-1AA0 | ||||||||||||||||||||||||||||||||||||
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, screw terminal | ||||||||||||||||||||||||||||||||||||
Product family | Actuators and indicators, 22 mm, round, plastic, black | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | L-O----- | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,042 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 60,00 x 100,00 x 30,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209957909 | ||||||||||||||||||||||||||||||||||||
UPC | 804766070655 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85318070 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 5452 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Czech Republic | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Type of electric connection (EF003961) | - | |
Degree of protection (IP) (EF005474) | - | |
Voltage type (EF000187) | - | |
Number of indicator lights (EF001965) | 1 | |
Colour lens (EF000207) | - | |
Type of lamp socket (EF008229) | - | |
With light source (EF005905) | true | |
Rated operating voltage Ue (EF002418) | ['-', '-'] | V |
Construction type lens (EF006253) | Round | |
Type of lens (EF008343) | Flat | |
Hole diameter (EF000079) | 22.3 | mm |
Width opening (EF004565) | 29.5 | mm |
Height opening (EF004778) | 11.8 | mm |
With front ring (EF006014) | false | |
Material front ring (EF005972) | - | |
Colour front ring (EF002429) | - | |
Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
