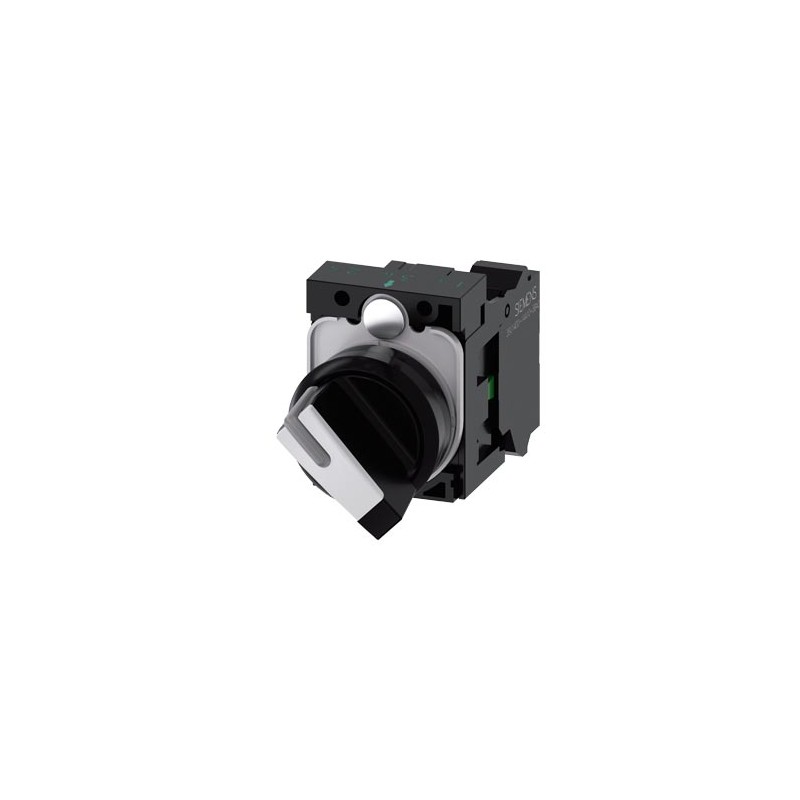

3SU1100-2BF60-3BA0 SIEMENS Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, shor.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1100-2BF60-3BA0 SIEMENS Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, shor..

3SU1100-2BF60-3BA0

SIEMENS

Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions O-I, latching, 10:30h/13:30h, with holder, 1 NO, Spring-type terminal

SELECTOR, ILLUMINABLE, 22MM, ROUND, PLASTIC, BLACK, WHITE, HANDLE, SHORT, 2 POSITIONS O-I, SUSTAINED, 10:30H/13:30H, WITH SUPPORT, 1NA, SPRING TERMINALS

More details


Low-voltage industrial components > Selector switch, complete

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $24.53
Unit price: $24.53
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions O-I, latching, 10:30h/13:30h, with holder, 1 NO, Spring-type terminal
product brand nameSIRIUS ACT
product designationSelector switches
design of the productComplete unit
product type designation3SU1
product linePlastic, black, 22 mm
manufacturer's article number
● of supplied contact module at position 13SU1400-1AA10-3BA0
● of the supplied holder3SU1550-0AA10-0AA0
● of the supplied actuator3SU1002-2BF60-0AA0
Enclosure
number of command points1
Actuator
design of the actuating elementSelector, short
principle of operation of the actuating elementlatching, 90° (10:30 h/13:30 h)
product extension optional light sourceYes
color of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element32.3 mm
number of contact modules1
number of switching positions2
actuating angle
● clockwise90°
Front ring
product component front ringYes
design of the front ringstandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Display
number of LED modules0
General technical data
product function positive openingNo
product component light sourceNo
insulation voltage rated value500 V
degree of pollution3
type of voltage of the operating voltageAC/DC
surge voltage resistance rated value6 kV
protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating frequency maximum1 800 1/h
mechanical service life (switching cycles) typical1 000 000
electrical endurance (switching cycles) typical10 000 000
thermal current10 A
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (Date)10/01/2014
operating voltage
● at AC
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC rated value5 ... 500 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
Connections/ Terminals
type of electrical connectionspring-loaded terminals
● of modules and accessoriesSpring-type terminal
type of connectable conductor cross-sections
● solid without core end processing2x (0.25 ... 1.5 mm²)
● finely stranded with core end processing2x (0.25 ... 0.75 mm²)
● finely stranded without core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables2x (24 ... 16)
tightening torque of the screws in the bracket1 ... 1.2 N·m
Safety related data
B10 value with high demand rate according to SN 31920100 000
proportion of dangerous failures
● with low demand rate according to SN 3192020 %
● with high demand rate according to SN 3192020 %
failure rate [FIT] with low demand rate according to SN 31920100 FIT
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening method
● of modules and accessoriesFront plate mounting
height40 mm
width32.3 mm
shape of the installation openinground
mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height28.8 mm
installation width32.3 mm
installation depth49.7 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

CCC

UL

EAC

EC/EU-Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

Marine / Shippingother

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1100-2BF60-3BA0
Product DescriptionSelector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions O-I, latching, 10:30h/13:30h, with holder, 1 NO, Spring-type terminal
Product familyActuators and indicators, 22 mm, round, plastic, black
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,058 Kg
Packaging Dimension50,00 x 100,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209957572
UPC804766070433
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-43
eClass7.127-37-12-43
eClass827-37-12-43
eClass927-37-12-43
eClass9.127-37-12-43
ETIM5EC001029
ETIM6EC001029
ETIM7EC001029
ETIM8EC001029
IDEA45208
UNSPSC1539-12-22-14

ETIM data

ETIM: EC001029 - Selector switch, complete

Value Unit
Degree of protection (IP) (EF005474) -
Supply voltage (EF004127) -V
Type of electric connection (EF003961) -
Number of switch positions (EF000231) 2
Type of control element (EF006976) Toggle
Suitable for illumination (EF001142) true
With light source (EF005905) false
Colour button (EF000190) White
Hole diameter (EF000079) 22.3mm
Width opening (EF004565) 32.3mm
Height opening (EF004778) 28.8mm
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
Degree of protection (NEMA) (EF011959) NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
With front ring (EF006014) true
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
