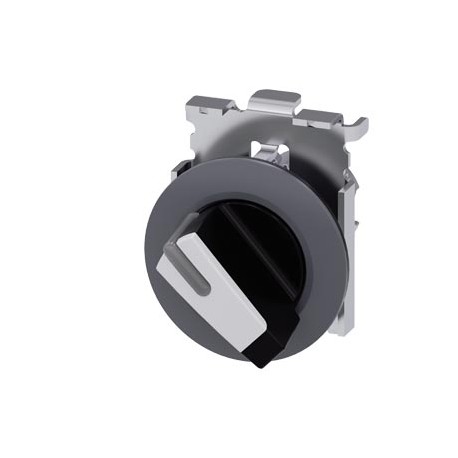

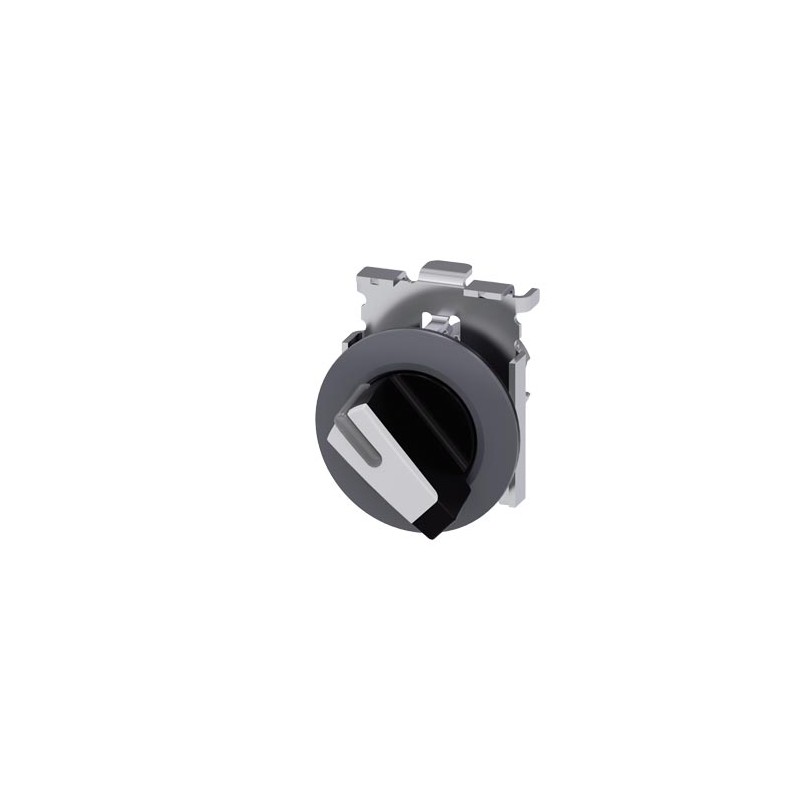

3SU1062-2DC60-0AA0 SIEMENS Selector switch, illuminable, 30 mm, round, metal, matte, white, selector switch,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1062-2DC60-0AA0 SIEMENS Selector switch, illuminable, 30 mm, round, metal, matte, white, selector switch,..

3SU1062-2DC60-0AA0

SIEMENS

Selector switch, illuminable, 30 mm, round, metal, matte, white, selector switch, short, front ring for flush installation, 2 switch positions O

More details


Low-voltage industrial components > Front element for selector switch

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $36.15
Unit price: $36.15

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Selector switch, illuminable, 30 mm, round, metal, matte, white, selector switch, short, front ring for flush installation, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30h/12h
product brand nameSIRIUS ACT
product designationSelector switches
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, matt, flat, 30 mm
Enclosure
number of command points1
Actuator
design of the actuating elementSelector, short
principle of operation of the actuating elementmomentary contact, 45° (10:30 h/12 h), return from center to left
product extension optional
● light sourceYes
● contact moduleYes
color of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementHandle
outer diameter of the actuating element38 mm
number of switching positions2
actuating angle
● clockwise45°
Front ring
product component front ringYes
design of the front ringFlat
material of the front ringMetal, matt
color of the front ringsand gray
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating frequency maximum1 800 1/h
mechanical service life (switching cycles) typical300 000
reference code according to IEC 81346-2S
Substance Prohibitance (Date)10/01/2014
Safety related data
B10 value with high demand rate according to SN 31920500 000
proportion of dangerous failures
● with low demand rate according to SN 3192020 %
● with high demand rate according to SN 3192020 %
failure rate [FIT] with low demand rate according to SN 31920100 FIT
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)
Installation/ mounting/ dimensions
height44.8 mm
width38 mm
shape of the installation openinground
mounting diameter30.5 mm
positive tolerance of installation diameter0.5 mm
mounting height22.1 mm
installation width38 mm
installation depth32.1 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1062-2DC60-0AA0
Product DescriptionSelector switch, illuminable, 30 mm, round, metal, matte, white, selector switch, short, front ring for flush installation, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30h/12h
Product familyActuators and indicators, flat, 30 mm, metal, matte
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,080 Kg
Packaging Dimension40,00 x 80,00 x 40,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209967434
UPC804766069925
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-13
eClass7.127-37-12-13
eClass827-37-12-13
eClass927-37-12-13
eClass9.127-37-12-13
ETIM5EC000222
ETIM6EC000222
ETIM7EC000222
ETIM8EC000222
IDEA45247
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000222 - Front element for selector switch

Value Unit
Type of control element (EF006976) -
Number of switch positions (EF000231) 2
Suitable for illumination (EF001142) true
Colour control element (EF007167) White
Colour indicator light cap (EF007165) White
Construction type lens (EF006253) Rectangular
Hole diameter (EF000079) 30.5mm
Width opening (EF004565) 38.0mm
Height opening (EF004778) 22.1mm
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
With front ring (EF006014) true
Material front ring (EF005972) Metal
Colour front ring (EF002429) Grey
Degree of protection (IP), front side (EF003118) IP68
Degree of protection (NEMA) (EF011959) 4X
