3SU1030-4BF21-0AA0
SIEMENS
1

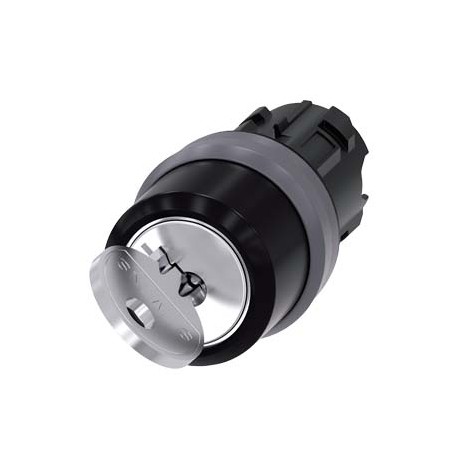

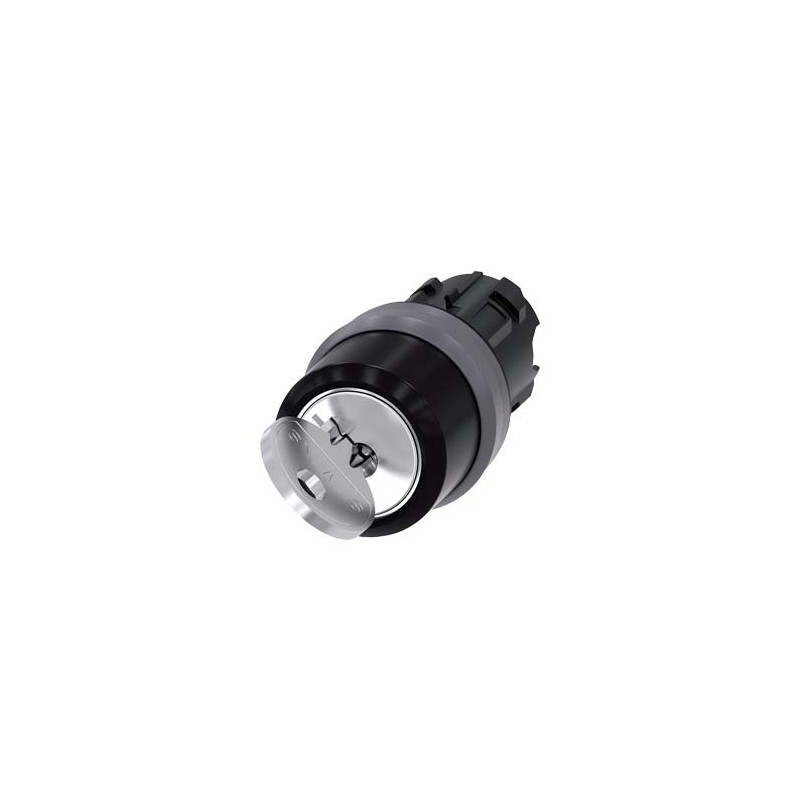

RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal I, possible special locks: SB31, 421, 455
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Value | Unit | |
---|---|---|
Type of control element (EF006976) | - | |
Colour indicator light cap (EF007165) | - | |
Number of switch positions (EF000231) | 2 | |
Suitable for illumination (EF001142) | false | |
Colour control element (EF007167) | Silver | |
Construction type lens (EF006253) | Rectangular | |
Hole diameter (EF000079) | 22.3 | mm |
Width opening (EF004565) | 29.5 | mm |
Height opening (EF004778) | 49.4 | mm |
Switching function latching (EF007447) | FALSE | |
Spring-return (EF001407) | FALSE | |
With front ring (EF006014) | true | |
Material front ring (EF005972) | Metal | |
Colour front ring (EF002429) | Grey | |
Degree of protection (IP), front side (EF003118) | IP68 | |
Degree of protection (NEMA) (EF011959) | 4X |
RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal I, possible special locks: SB31, 421, 455 | ||||||||||||||||||||||||||||||||||||||
Product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
Product designation | Key-operated switches | |||||||||||||||||||||||||||||||||||||
Design of the product | Actuating/signaling element | |||||||||||||||||||||||||||||||||||||
Product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
Product line | Plastic with metal front ring, matt, 22 mm | |||||||||||||||||||||||||||||||||||||
Manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
● of included key | 3SU1950-0FB80-0AA0 | |||||||||||||||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||||||||||||||
Manner of function of the actuating element | latching, 90° (10:30 h/13:30 h) | |||||||||||||||||||||||||||||||||||||
Product extension optional Light source | No | |||||||||||||||||||||||||||||||||||||
Color | ||||||||||||||||||||||||||||||||||||||
● of the actuating element | silver | |||||||||||||||||||||||||||||||||||||
Material of the actuating element | metal | |||||||||||||||||||||||||||||||||||||
Shape of the actuating element | Key | |||||||||||||||||||||||||||||||||||||
Outer diameter of the actuating element | 29.5 mm | |||||||||||||||||||||||||||||||||||||
Number of switching positions | 2 | |||||||||||||||||||||||||||||||||||||
Switch position for key distraction | I | |||||||||||||||||||||||||||||||||||||
Actuating angle | ||||||||||||||||||||||||||||||||||||||
● clockwise | 90° | |||||||||||||||||||||||||||||||||||||
Lock make | RONIS | |||||||||||||||||||||||||||||||||||||
Key number | SB30 | |||||||||||||||||||||||||||||||||||||
Front ring | ||||||||||||||||||||||||||||||||||||||
Product component front ring | Yes | |||||||||||||||||||||||||||||||||||||
Design of the front ring | Standard | |||||||||||||||||||||||||||||||||||||
Material of the front ring | Metal, matt | |||||||||||||||||||||||||||||||||||||
Color of the front ring | sand gray | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
Protection class IP | IP66, IP67, IP69(IP69K) | |||||||||||||||||||||||||||||||||||||
● of the terminal | IP20 | |||||||||||||||||||||||||||||||||||||
Degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 | |||||||||||||||||||||||||||||||||||||
Shock resistance | ||||||||||||||||||||||||||||||||||||||
● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms | |||||||||||||||||||||||||||||||||||||
● for railway applications acc. to DIN EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
Vibration resistance | ||||||||||||||||||||||||||||||||||||||
● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
● for railway applications acc. to DIN EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
Operating frequency maximum | 1 800 1/h | |||||||||||||||||||||||||||||||||||||
Mechanical service life (switching cycles) | ||||||||||||||||||||||||||||||||||||||
● typical | 1 000 000 | |||||||||||||||||||||||||||||||||||||
Reference code acc. to DIN EN 81346-2 | S | |||||||||||||||||||||||||||||||||||||
Reference code acc. to DIN EN 61346-2 | S | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
Ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
Height | 29.5 mm | |||||||||||||||||||||||||||||||||||||
Width | 29.5 mm | |||||||||||||||||||||||||||||||||||||
Shape of the installation opening | round | |||||||||||||||||||||||||||||||||||||
Mounting diameter | 22.3 mm | |||||||||||||||||||||||||||||||||||||
Positive tolerance of installation diameter | 0.4 mm | |||||||||||||||||||||||||||||||||||||
Mounting height | 49.4 mm | |||||||||||||||||||||||||||||||||||||
Installation width | 29.5 mm | |||||||||||||||||||||||||||||||||||||
Installation depth | 25.4 mm | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 08/06/2020 |
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1030-4BF21-0AA0 | ||||||||||||||||||||||||||||||||||||
Product Description | RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal I, possible special locks: SB31, 421, 455 | ||||||||||||||||||||||||||||||||||||
Product family | Actuators and indicators, 22 mm, plastic with metal front ring, matte | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Price Group | 41J | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | None | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 3 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,020 Kg | ||||||||||||||||||||||||||||||||||||
Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 30,00 x 100,00 x 30,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209961692 | ||||||||||||||||||||||||||||||||||||
UPC | 804766065163 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85389099 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 5452 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Czech Republic | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
