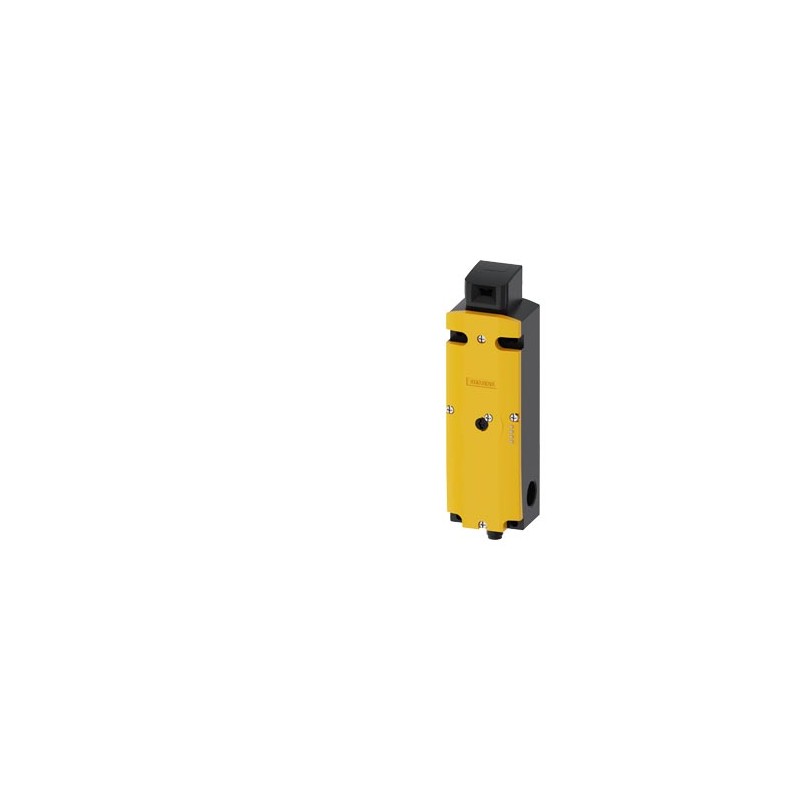

3SF1324-1SD21-1BA4 SIEMENS Safety position switch with tumbler Locking force 1300 N 5 directions of approach..
3SF1324-1SD21-1BA4
SIEMENS
safety position switch with tumbler, locking force 1300 N, 5 directions of approaches, plastic enclosure, M12 plug, ASIsafe integrated, channel 1=actuator 2 NC according to principle of 2v2 evaluation channel 2=magnet 1 NC, spring-locked, auxiliary release on front, magnet voltage 24 V AC/DC; no additional 24 V supply required. monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO the matching separate actuator 3SE5000-0AV0./-0AW5. must be ordered separately.
POS. SECURITY WITH RETENTION FORCE RETENC.1300N,5 DIRECTION ATAQ. PLAST. BOX, M12 CONNECTOR, INTEGRATED ASISAFE CAN1 = 2OE ACTUATOR ACCORDING TO EVALUATION PRINCIPLE 2V2 CAN2 = ELECTROMAGNET ENCLAV. OF SPRING DESENCLAV. AUX. FRONT VOLTAGE ELECTROMAGNET 24V DC/AC, ACTUATOR 2NC/1NA SURVEILLANCE ELECTROMAGNET 2NC/1NA, THE CORRESPONDING SEPARATE ACTUATOR 3SE5000-0AV0. IT IS REQUESTED SEPARATELY. Manufactured to order. Non-Cancelable Non-Returnable.
Sensors > Position switch with guard locking
CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SF1324-1SD21-1BA4 | ||||||||||||||||||||||||||||||||||||||||||
| Product Description | safety position switch with tumbler, locking force 1300 N, 5 directions of approaches, plastic enclosure, M12 plug, ASIsafe integrated, channel 1=actuator 2 NC according to principle of 2v2 evaluation channel 2=magnet 1 NC, spring-locked, auxiliary release on front, magnet voltage 24 V AC/DC; no additional 24 V supply required. monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO the matching separate actuator 3SE5000-0AV0./-0AW5. must be ordered separately. | ||||||||||||||||||||||||||||||||||||||||||
| Product family | 3SF1, plastic enclosures with locking force greater than 1 000 N | ||||||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42A / 42A | ||||||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | ||||||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,530 Kg | ||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 61,50 x 213,00 x 84,00 | ||||||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209866560 | ||||||||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85365019 | ||||||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||||||||
| Product Group | 3758 | ||||||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 | ||||||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SF1324-1SD21-1BA4 3SF1324-1SD21-1BA4 EN_3SF1324-1SD21-1BA4.pdf | 296 Kbytes |
|
