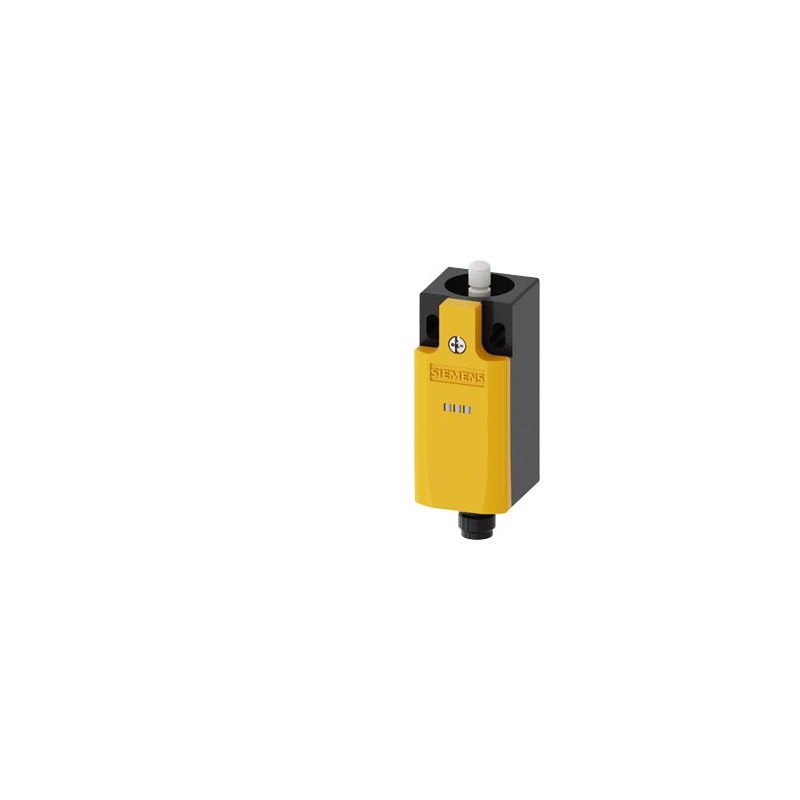

3SF1234-1LC05-1BA1 SIEMENS Basic switch without actuator head Plastic enclosure, EN 50047 ASIsafe integrated.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SF1234-1LC05-1BA1 SIEMENS Basic switch without actuator head Plastic enclosure, EN 50047 ASIsafe integrated..

3SF1234-1LC05-1BA1

SIEMENS

Basic switch without actuator head Plastic enclosure, EN 50047 ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Snap-action contacts 2 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to NC

CONN. BASE WITHOUT CABEZ. ACTION. PLASTIC BOX,ACCORDING TO EN50047 ASISAFE INTEGRATED STATE AS-I:1:F-IN1 , 2:F-IN2 3:AS-I/FAULTSIRIUS Contactor ACC. BRUSCA 2NC, WITH CONEC. M12 4 poles CHANNEL 1 IN NC, CHANNEL 2 IN NC. Manufactured to order. Non-Cancelable Non-Returnable.

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $289.22
Unit price: $289.22
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Basic switch without actuator head Plastic enclosure, EN 50047 ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Snap-action contacts 2 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to NC
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SF12
manufacturer's article number
● of the supplied basic switch3SF1234-1LC05-1BA1
suitability for use safety switchYes
General technical data
product function positive openingYes
insulation voltage rated value30 V
degree of pollutionclass 3
surge voltage resistance rated value0.8 kV
protection class IPIP65
shock resistance according to IEC 60068-2-2730g / 11 ms
vibration resistance according to IEC 60068-2-60.35 mm/5g
mechanical service life (switching cycles) typical15 000 000
reference code according to IEC 81346-2B
active principlemechanical
repeat accuracy0.1 mm
Substance Prohibitance (Date)03/01/2017
minimum actuating force in directions of actuation20 N
length of the sensor89.7 mm
width of the sensor31 mm
design of the switching contactmechanical
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts0
design of the interface for safety-related communicationASIsafe via M12 plug
Enclosure
design of the housingblock, narrow
material of the enclosureplastic
design of the housing according to standardYes
Drive Head
design of the actuating elementOther, without, ASi_basic switch with plug
design of the switching functionpositive opening
circuit principlesnap-action contacts
number of switching contacts safety-related2
Connections/ Terminals
type of electrical connectionM12 plug, fixed, 4-pole
design of plug-in connectionM12 plug, 4-pole: Pin 1 = ASI+ , Pin 2 = not assigned, Pin 3= ASI-, Pin 4 = not assigned
AS-Interface slave profile0.B.F
ID1 codeF (hex, variable 0...F)
Ambient conditions
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
Supply voltage
type of voltage of the supply voltage of the optional LED displayDC
supply voltage
● of LED24 V
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Certificates/ approvals

Downloads and manuals

General Product ApprovalFunctional Safety/Safety of MachineryDeclaration of ConformityTest Certificates

UL

EAC

Type Examination Certificate

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Test Certificatesother

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SF1234-1LC05-1BA1
Product DescriptionBasic switch without actuator head Plastic enclosure, EN 50047 ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Snap-action contacts 2 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to NC
Product family3SF1, plastic enclosures
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42A / 42A
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,107 Kg
Packaging Dimension56,00 x 166,50 x 77,50
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209695290
UPC754554955988
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group3758
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.03.2017
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Imidazolidine-2-thione (2-imidazoline-2-thiol)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-27-06-01
eClass7.127-27-06-01
eClass827-27-06-01
eClass927-27-06-01
eClass9.127-27-06-01
ETIM5EC000030
ETIM6EC000030
ETIM7EC000030
ETIM8EC000030
IDEA45202
UNSPSC1439-12-22-13
UNSPSC1539-12-22-13

ETIM data

ETIM: EC000030 - End switch

Value Unit
Degree of protection (NEMA) (EF011959) -
Width sensor (EF007094) 31.0mm
Height of sensor (EF007283) 33.0mm
Length of sensor (EF007334) 89.7mm
Rated operation current Ie at AC-15, 24 V (EF007084) -A
Rated operation current Ie at AC-15, 125 V (EF007082) -A
Rated operation current Ie at AC-15, 230 V (EF001385) -A
Rated operation current Ie at DC-13, 24 V (EF007087) -A
Rated operation current Ie at DC-13, 125 V (EF007085) -A
Rated operation current Ie at DC-13, 230 V (EF001386) -A
Switching function (EF000189) Quick-break switch
Switching function latching (EF007447) false
Output electronic (EF006987) FALSE
Forced opening (EF006694) true
Number of safety auxiliary contacts (EF006940) 2
Number of contacts as normally closed contact (EF008255) 2
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) Other
Construction type housing (EF004008) Cuboid
Material housing (EF001596) Plastic
Coating housing (EF001601) Other
Type of control element (EF006976) None
Alignment of the control element (EF008793) Roller cam straight
Type of electric connection (EF003961) Plug-in connection M12
With status indication (EF001602) true
Suitable for safety functions (EF001597) true
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Ambient temperature during operating (EF007515) ['-25', '60']°C
Degree of protection (IP) (EF005474) IP65
