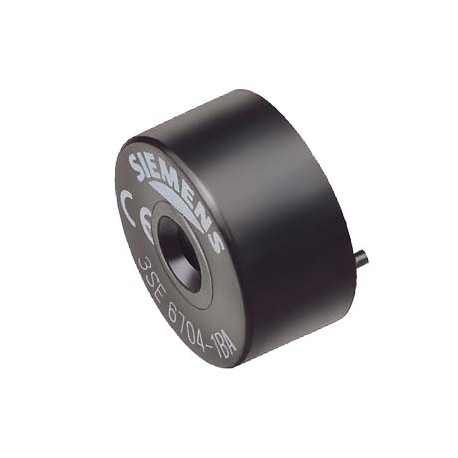

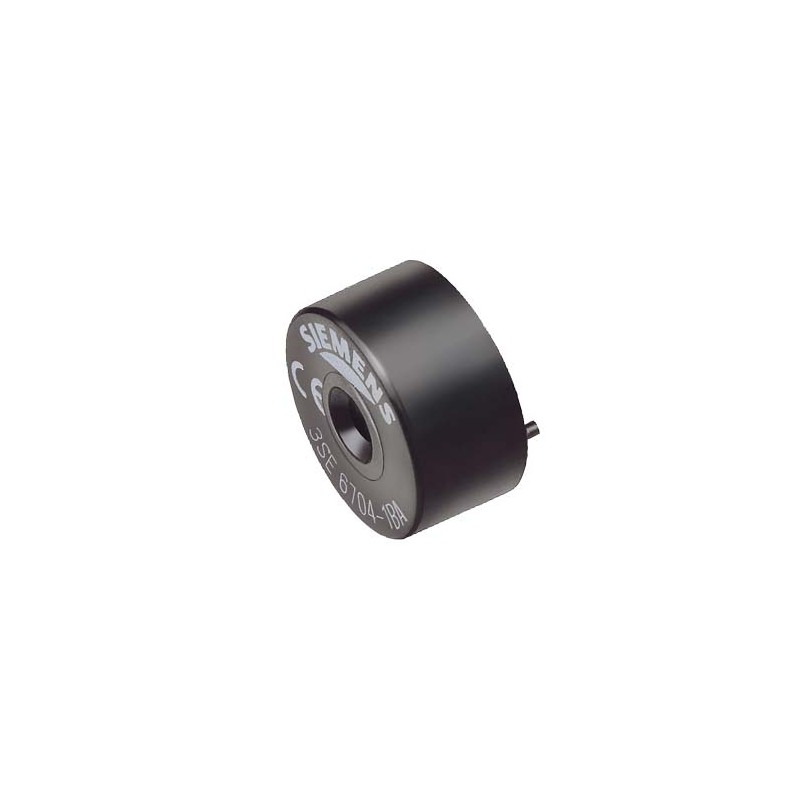

3SE6704-1BA SIEMENS Solenoid round M30
3SE6704-1BA
SIEMENS
Solenoid round M30
CONTROL AND CONTACTORS > Limit Switches and safety relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Often bought together
▲Best sellers
▲More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SE6704-1BA | |||||||||||||||||||||||||||||||||||||||
| Product Description | Solenoid round M30 | |||||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3SE66, 3SE67 non-contact safety switches, magnet | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 60 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,035 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 30,00 x 30,00 x 16,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209407183 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554620534 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85051990 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 3750 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | China | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002544 - Magnetic proximity switch
| Value | Unit | |
|---|---|---|
| Voltage type (EF000187) | - | |
| Type of switching output (EF003962) | - | |
| Type of electric connection (EF003961) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Type of actuation (EF006949) | - | |
| With status indication (EF001602) | - | |
| Type of interface for safety communication (EF003956) | - | |
| Number of semiconductor outputs with signalling function (EF003945) | - | |
| Number of contact energized outputs with signalling function (EF003946) | - | |
| Number of protected semiconductor outputs (EF003951) | - | |
| Number of protected contact energized outputs (EF003952) | - | |
| Length of sensor (EF007334) | 15.0 | mm |
| Diameter sensor (EF007111) | 30.0 | mm |
| Explosion safety category for gas (EF003997) | None | |
| Explosion safety category for dust (EF003998) | None | |
| Construction type housing (EF004008) | Cylinder, screw-thread | |
| Material housing (EF001596) | Plastic | |
| Coating housing (EF001601) | - | |
| Category according to EN 954-1 (EF006782) | 4 | |
| SIL according to IEC 61508 (EF009889) | None | |
| Performance level according to EN ISO 13849-1 (EF007399) | None | |
| Ambient temperature (EF002386) | ['-25', '70'] | °C |
| Mechanical mounting condition for sensor (EF004041) | Not flat | |
| Rated supply voltage at AC 50 Hz (EF007076) | ['-', '-'] | V |
| Rated supply voltage at AC 60 Hz (EF007077) | ['-', '-'] | V |
| Rated supply voltage at DC (EF007078) | ['-', '-'] | V |
| Cross-/short circuit identification possible (EF004093) | - | |
| With monitoring function downstream switching devices (EF004052) | - | |
| Suitable for safety functions (EF001597) | - | |
| Degree of protection (IP) (EF005474) | IP67 | |
| Min. output current (EF004045) | - | mA |
| Protected switch distance OFF (EF004011) | - | mm |
| Protected switch distance ON (EF004012) | - | mm |
| Max. output current at protected output (EF004035) | - | mA |
| Width sensor (EF007094) | - | mm |
| Switching distance (EF003647) | - | mm |
| Height of sensor (EF007283) | - | mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SE6704-1BA 3SE6704-1BA EN_3SE6704-1BA.pdf | 217 Kbytes |
|
