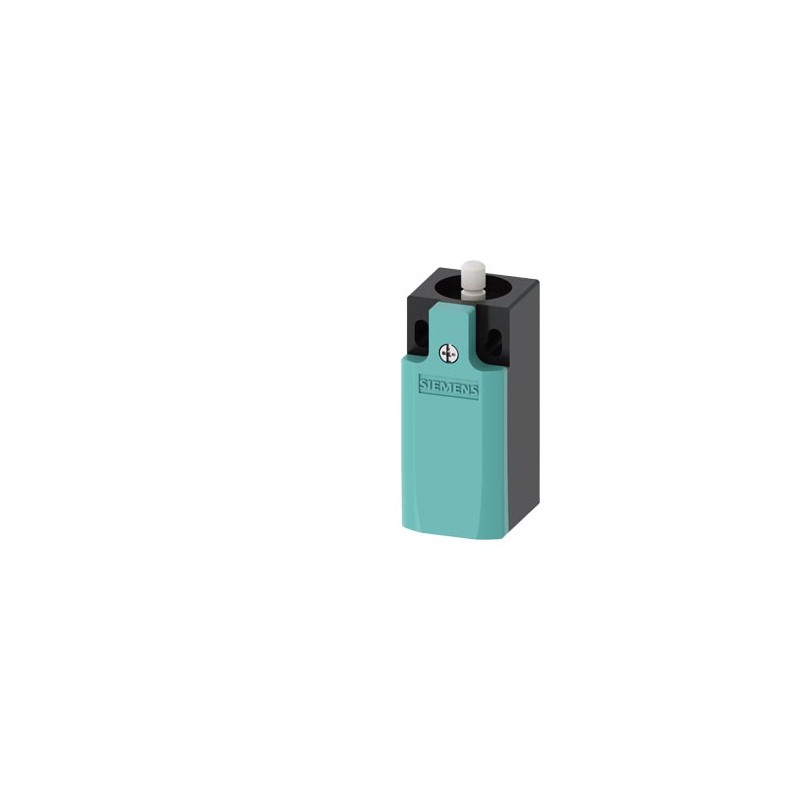

3SE5232-0AC05-1CA0 SIEMENS Enclosure for position switch with increased corrosion protection Plastic enclosu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE5232-0AC05-1CA0 SIEMENS Enclosure for position switch with increased corrosion protection Plastic enclosu..

3SE5232-0AC05-1CA0

SIEMENS

Enclosure for position switch with increased corrosion protection Plastic enclosure according to EN 50047, 31 mm M20 x 1.5, with cover Color turquoise and plunger

SIRIUS Int. position, plastic box 31mm, connection 1X (M20X1,5), Teflon stem, empty box, with anti-corrosion protection. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Sensors > Accessories/spare parts for position switches

CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $9.71
Unit price: $9.71
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Enclosure for position switch with increased corrosion protection Plastic enclosure according to EN 50047, 31 mm M20 x 1.5, with cover Color turquoise and plunger
product designationempty enclosure EKS, EN 50047, cover turquoise
General technical data
protection class IPIP65
shock resistance
● according to IEC 60068-2-2730g / 11 ms
vibration resistance
● according to IEC 60068-2-60.35 mm/5g
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2U
repeat accuracy0.05 mm
Substance Prohibitance (Date)07/01/2006
minimum actuating force in directions of actuation20 N
length of the sensor75.7 mm
width of the sensor31 mm
design of the interface for safety-related communicationwithout
Enclosure
design of the housingblock, narrow
material of the enclosureplastic
coating of the enclosureOther types
design of the housing according to standardYes
Drive Head
design of the actuating elementRounded plunger, plastic plunger
standard-compliant actuator headEN 50047, design B
shape of the switch headrounded
design of the switching functionPositive opening with appropriate positive opening actuator head and switching element
Connections/ Terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● at AWG cables solid1x (20 ... 16), 2x (20 ... 18)
● at AWG cables stranded1x (20 ... 16), 2x (20 ... 18)
cable entry type1x (M20 x 1.5)
Communication/ Protocol
design of the interfacewithout
Ambient conditions
ambient temperature
● during operation-25 ... +85 °C
● during storage-40 ... +90 °C
explosion protection category for dustnone
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Certificates/ approvals

Downloads and manuals

General Product Approval

CSA

CCC

Confirmation

UL

KC

EAC

General Product ApprovalFunctional Safety/Safety of MachineryDeclaration of ConformityTest Certificatesother

EAC

Type Examination Certificate

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:7/14/2021
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE5232-0AC05-1CA0
Product DescriptionEnclosure for position switch with increased corrosion protection Plastic enclosure according to EN 50047, 31 mm M20 x 1.5, with cover Color turquoise and plunger
Product familyAccessories and spare parts
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,047 Kg
Packaging Dimension45,00 x 42,00 x 97,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209693999
UPC662643931129
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Imidazolidine-2-thione (2-imidazoline-2-thiol)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-27-06-91
eClass7.127-27-06-91
eClass827-27-06-91
eClass927-27-06-91
eClass9.127-27-06-91
ETIM5EC002594
ETIM6EC002594
ETIM7EC002594
ETIM8EC002594
IDEA45229
UNSPSC1439-12-22-13
UNSPSC1539-12-22-21

ETIM data

ETIM: EC002594 - Accessories/spare parts for position switches

Value Unit
Type of accessory/spare part (EF000215) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SE5232-0AC05-1CA0 3SE5232-0AC05-1CA0 EN_3SE5232-0AC05-1CA0.pdf 245 Kbytes 3SE5232-0AC05-1CA0 3SE5232-0AC05-1CA0 EN_3SE5232-0AC05-1CA0.pdf
