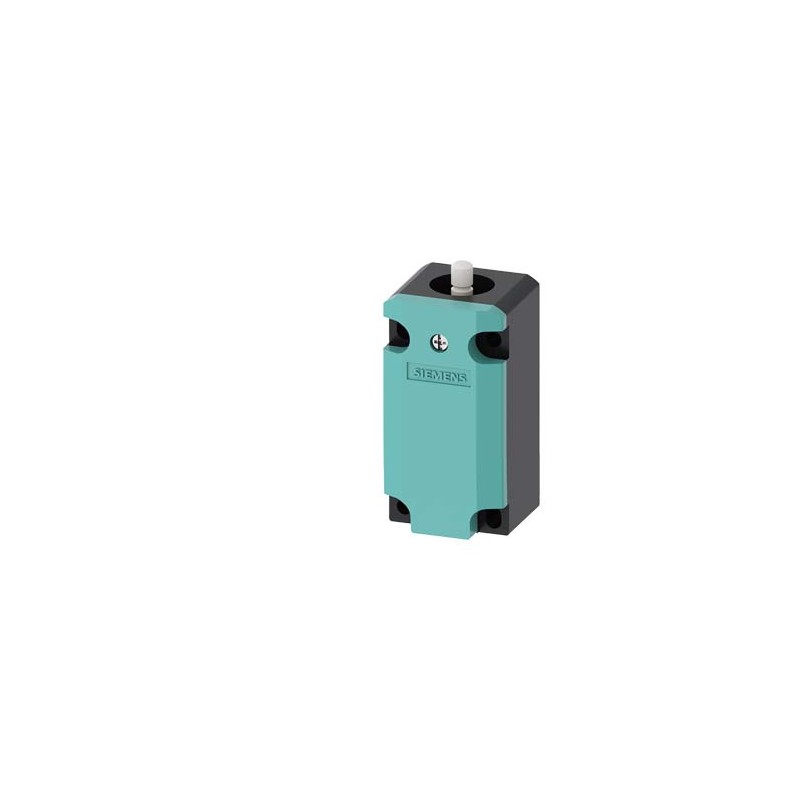

3SE5132-0KA00-1AJ0 SIEMENS Position switch Basic switch plastic 40 mm according to EN 50041 Increased corros.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE5132-0KA00-1AJ0 SIEMENS Position switch Basic switch plastic 40 mm according to EN 50041 Increased corros..

3SE5132-0KA00-1AJ0

SIEMENS

Position switch Basic switch plastic 40 mm according to EN 50041 Increased corrosion protection Device connection 1 x (M20 x 1.5) 1 NO/2 NC slow-action contacts functional at -40 °C Shock and vibration test according to EN 61373, Category 1B

position switch 40 mm plastic body according to DIN EN 50041 improved corrosion protection Appliance connection 1x (M20 x 1.5) 1NA/2NC normal-acting contacts operating at -40 °C shock and vibration resistance test according to DIN EN 61373, category 1B. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Sensors > End switch

CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $51.24
Unit price: $51.24
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Position switch Basic switch plastic 40 mm according to EN 50041 Increased corrosion protection Device connection 1 x (M20 x 1.5) 1 NO/2 NC slow-action contacts functional at -40 °C Shock and vibration test according to EN 61373, Category 1B
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
manufacturer's article number
● of the supplied basic switch3SE5132-0KA00-1AJ0
● of the supplied switching contacts3SE5000-0KA00
suitability for use safety switchYes
General technical data
product function positive openingYes
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP66/IP67
shock resistance
● according to IEC 60068-2-2730g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance according to IEC 60068-2-60.35 mm/5g
mechanical service life (switching cycles) typical15 000 000
electrical endurance (switching cycles) at AC-15 at 230 V typical100 000
electrical endurance (switching cycles) with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 typical10 000 000
Electrical operating cycles in one hour with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT10266 000
thermal current10 A
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0.05 mm
Substance Prohibitance (Date)07/01/2006
minimum actuating force in directions of actuation20 N
length of the sensor85.7 mm
width of the sensor40 mm
design of the switching contactmechanical
operating frequency rated value50 ... 60 Hz
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
operational current at AC-15
● at 24 V rated value6 A
● at 125 V rated value6 A
● at 240 V rated value6 A
● at 400 V rated value4 A
operational current at DC-13
● at 24 V rated value3 A
● at 125 V rated value0.55 A
● at 250 V rated value0.27 A
● at 400 V rated value0.12 A
design of the interface for safety-related communicationwithout
Enclosure
design of the housingblock, narrow
material of the enclosureplastic
coating of the enclosureOther types
design of the housing according to standardYes
Drive Head
design of the actuating elementOther, without, basic switch
design of the switching functionPositive opening with appropriate positive opening actuator head
circuit principleslow-action contacts
number of switching contacts safety-related2
Connections/ Terminals
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● at AWG cables solid1x (20 ... 16), 2x (20 ... 18)
● at AWG cables stranded1x (20 ... 16), 2x (20 ... 18)
cable entry type1x (M20 x 1.5)
Communication/ Protocol
design of the interfacewithout
Ambient conditions
ambient temperature
● during operation-40 ... +85 °C
● during storage-40 ... +90 °C
explosion protection category for dustnone
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Certificates/ approvals

Downloads and manuals

General Product Approval

CSA

Confirmation

CCC

UL

EAC

EAC

Functional Safety/Safety of MachineryDeclaration of Conformityother

Type Examination Certificate

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:2/3/2022
Date
5/2/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE5132-0KA00-1AJ0
Product DescriptionPosition switch Basic switch plastic 40 mm according to EN 50041 Increased corrosion protection Device connection 1 x (M20 x 1.5) 1 NO/2 NC slow-action contacts functional at -40 °C Shock and vibration test according to EN 61373, Category 1B
Product family3SE5, plastic enclosures
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,091 Kg
Packaging Dimension45,00 x 42,00 x 97,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209911284
UPC195125287518
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-27-06-01
eClass7.127-27-06-01
eClass827-27-06-01
eClass927-27-06-01
eClass9.127-27-06-01
ETIM5EC000030
ETIM6EC000030
ETIM7EC000030
ETIM8EC000030
IDEA45202
UNSPSC1539-12-22-13

ETIM data

ETIM: EC000030 - End switch

Value Unit
Degree of protection (NEMA) (EF011959) -
Width sensor (EF007094) 40.0mm
Height of sensor (EF007283) 37.3mm
Length of sensor (EF007334) 85.7mm
Rated operation current Ie at AC-15, 24 V (EF007084) 6A
Rated operation current Ie at AC-15, 125 V (EF007082) 6A
Rated operation current Ie at AC-15, 230 V (EF001385) -A
Rated operation current Ie at DC-13, 24 V (EF007087) 3A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.55A
Rated operation current Ie at DC-13, 230 V (EF001386) -A
Switching function (EF000189) Slow-action switch
Switching function latching (EF007447) false
Output electronic (EF006987) FALSE
Forced opening (EF006694) true
Number of safety auxiliary contacts (EF006940) 2
Number of contacts as normally closed contact (EF008255) 2
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 1
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cuboid
Material housing (EF001596) Plastic
Coating housing (EF001601) Other
Type of control element (EF006976) None
Alignment of the control element (EF008793) Roller cam straight
Type of electric connection (EF003961) Cable entry metrical
With status indication (EF001602) false
Suitable for safety functions (EF001597) true
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Ambient temperature during operating (EF007515) ['-40', '85']°C
Degree of protection (IP) (EF005474) IP66/IP67
Diameter sensor (EF007111) -mm
