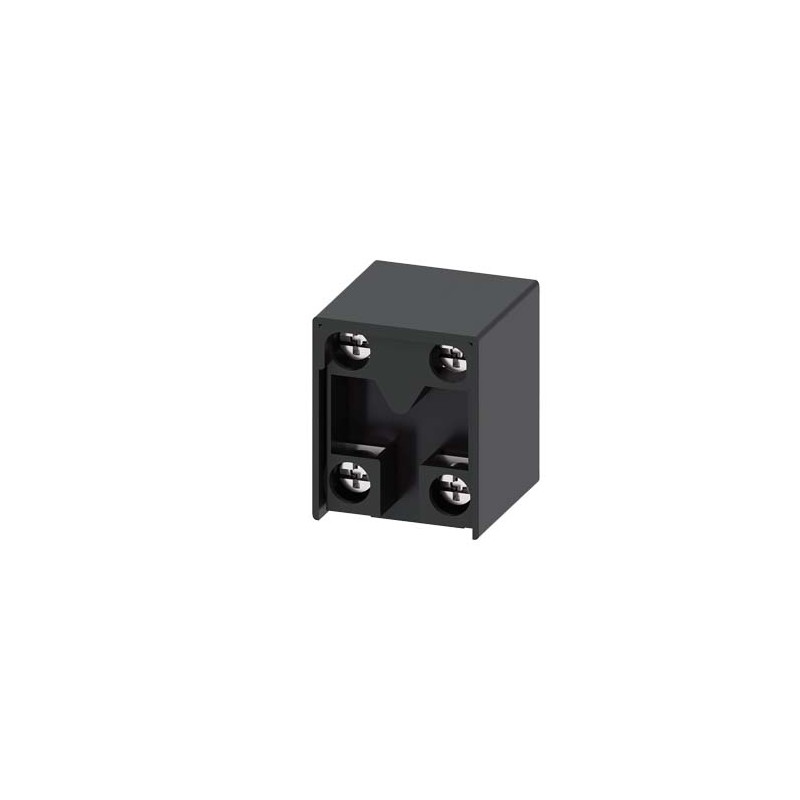

3SE5060-0CA00 SIEMENS Contact block for position switch 3SE5162 Mounting position on the right in the switch.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE5060-0CA00 SIEMENS Contact block for position switch 3SE5162 Mounting position on the right in the switch..

3SE5060-0CA00

SIEMENS

Contact block for position switch 3SE5162 Mounting position on the right in the switch 1 NO/1 NC quick action contact

CONTACT BLOCK FOR POSITION INT. 3SE5162, MOUNTED ON THE RIGHT CONTACTS QUICK ACTION 1NA/1NC. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Sensors > Accessories/spare parts for position switches

CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $19.45
Unit price: $19.45
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Contact block for position switch 3SE5162 Mounting position on the right in the switch 1 NO/1 NC quick action contact
product brand nameSIRIUS
product designationcontact
product type designation3SE5
General technical data
product function positive openingYes
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP00
shock resistance
● according to IEC 60068-2-2730g / 11 ms
vibration resistance
● according to IEC 60068-2-60.35 mm/5g
mechanical service life (switching cycles) typical15 000 000
electrical endurance (switching cycles) at AC-15 at 230 V typical100 000
electrical endurance (switching cycles) with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 typical10 000 000
Electrical operating cycles in one hour with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT10266 000
thermal current10 A
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0.1 mm
Substance Prohibitance (Date)07/01/2006
width of the sensor25 mm
operating frequency rated value50 ... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
operational current at AC-15
● at 24 V rated value6 A
● at 125 V rated value6 A
● at 240 V rated value6 A
● at 400 V rated value4 A
operational current at DC-13
● at 24 V rated value3 A
● at 125 V rated value0.55 A
● at 250 V rated value0.27 A
● at 400 V rated value0.12 A
design of the interface for safety-related communicationwithout
Enclosure
coating of the enclosureOther types
Drive Head
design of the switching functionpositive opening
circuit principlesnap-action contacts
number of switching contacts safety-related1
Connections/ Terminals
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● at AWG cables solid1x (20 ... 16), 2x (20 ... 18)
● at AWG cables stranded1x (20 ... 16), 2x (20 ... 18)
Communication/ Protocol
design of the interfacewithout
Ambient conditions
ambient temperature
● during operation-25 ... +85 °C
● during storage-40 ... +90 °C
explosion protection category for dustnone
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
Certificates/ approvals

Downloads and manuals

General Product Approval

CSA

CCC

Confirmation

UR

UL

EAC

General Product ApprovalDeclaration of Conformityother

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/6/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE5060-0CA00
Product DescriptionContact block for position switch 3SE5162 Mounting position on the right in the switch 1 NO/1 NC quick action contact
Product familyAccessories and spare parts
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,022 Kg
Packaging Dimension20,00 x 20,00 x 20,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209894396
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-27-06-91
eClass7.127-27-06-91
eClass827-27-06-91
eClass927-27-06-91
eClass9.127-27-06-91
ETIM5EC002594
ETIM6EC002594
ETIM7EC002594
ETIM8EC002594
IDEA45229
UNSPSC1539-12-22-21

ETIM data

ETIM: EC002594 - Accessories/spare parts for position switches

Value Unit
Type of accessory/spare part (EF000215) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SE5060-0CA00 3SE5060-0CA00 EN_3SE5060-0CA00.pdf 258 Kbytes 3SE5060-0CA00 3SE5060-0CA00 EN_3SE5060-0CA00.pdf
