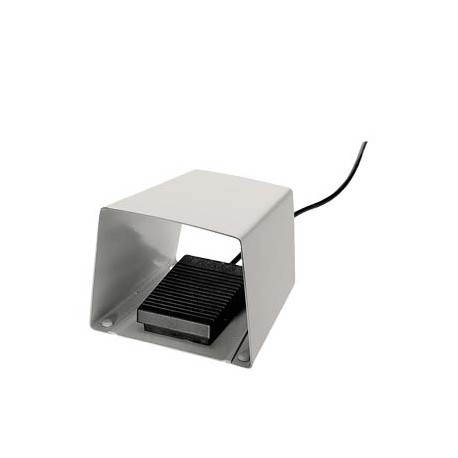

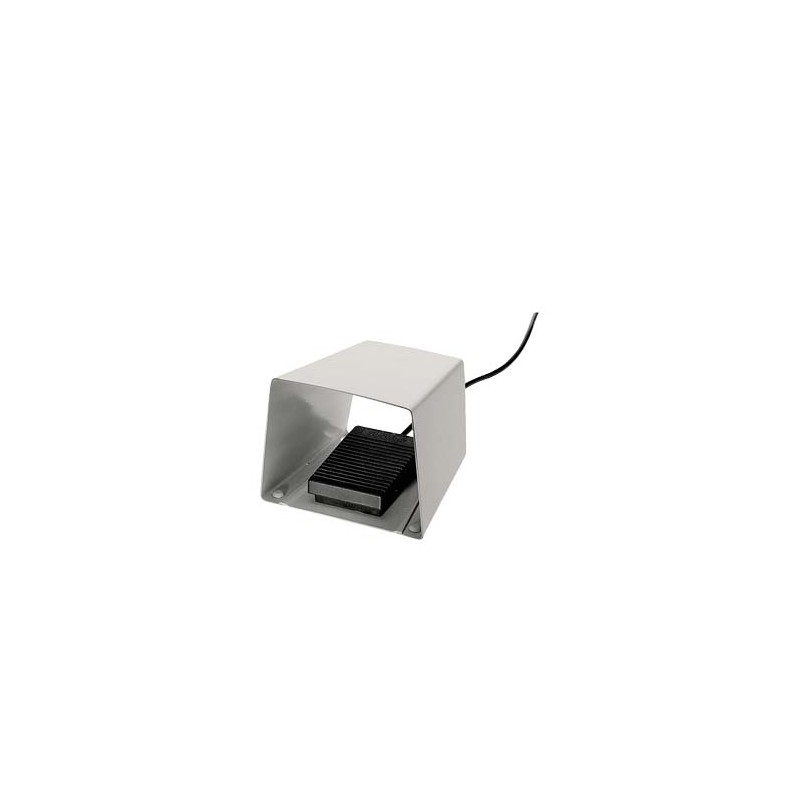

3SE3902-4CA20 SIEMENS Foot switch molded-plastic enclosure Pedal switch 1-pedal with cover, 1 change-over co..
3SE3902-4CA20
SIEMENS
plastic foot switch, pedal pushbutton, 1-pedal with metal cover, 1 changeover contact
CONTROL AND CONTACTORS > Limit Switches and safety relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Technical data
Additional data
| Product | ||
| Article Number (Market Facing Number) | 3SE3902-4CA20 | |
| Product Description | plastic foot switch, pedal pushbutton, 1-pedal with metal cover, 1 changeover contact | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM490:Start of final year of support | |
| PLM Effective Date | Product discontinued since: 30.01.2022 | |
| Notes | Product is no longer available Sucessor:3SE2 902-0AA20 metal with cover or 3SE3902-4CB20 plastic without cover If you need assistance please contact our local Siemens office | |
| Price data | ||
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K | |
| Surcharge for Raw Materials | None | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 10 Day/Days | |
| Net Weight (kg) | 1,045 Kg | |
| Packaging Dimension | 160,00 x 180,00 x 140,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209391765 | |
| UPC | 040892824759 | |
| Commodity Code | 85365080 | |
| LKZ_FDB/ CatalogID | CC-IC10 | |
| Product Group | 3750 | |
| Group Code | R711 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
ETIM data
ETIM: EC001258 - Foot switch
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Type of command (EF002399) | On or off | |
| With protection hood (EF002400) | true | |
| With interlocking (EF002401) | false | |
| Material (EF002169) | Plastic | |
| With protective insulation (EF006523) | FALSE | |
| Colour (EF000007) | Grey | |
| Number of switch levels (EF000246) | 1 | |
| Number of contacts as normally closed contact (EF008255) | 0 | |
| Number of contacts as normally open contact (EF008256) | 0 | |
| Number of contacts as change-over contact (EF008257) | 1 | |
| Switching function latching (EF007447) | false | |
| Suitable for safety functions (EF001597) | false | |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 5 | A |
| Degree of protection (IP) (EF005474) | IP65 | |
| Width (EF000008) | 155.0 | mm |
| Height (EF000040) | 152.0 | mm |
| Depth (EF000049) | 115.0 | mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SE3902-4CA20 3SE3902-4CA20 EN_3SE3902-4CA20.pdf | 186 Kbytes |
|
