> SIEMENS>CONTROL AND CONTACTORS>Limit Switches and safety relays>3SE2902-0AA20 SIEMENS Momentary-contact foot switch, 1-pedal With cover, without latching Metal enclosure IP..
Previous Product Next Product

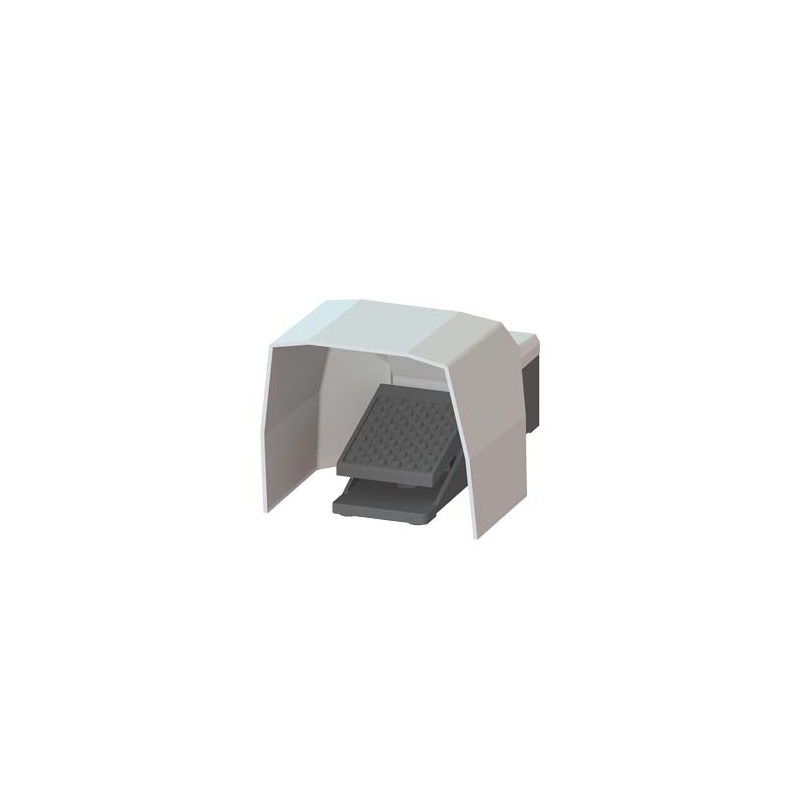

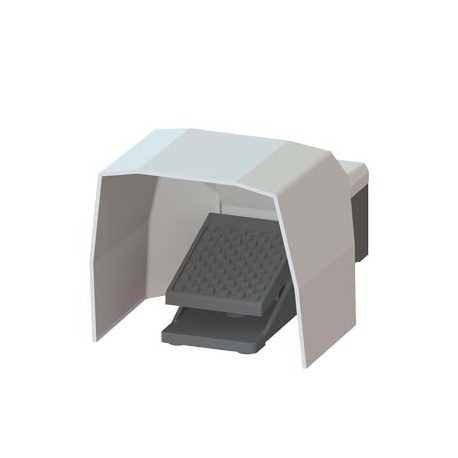

3SE2902-0AA20 SIEMENS Momentary-contact foot switch, 1-pedal With cover, without latching Metal enclosure IP.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE2902-0AA20 SIEMENS Momentary-contact foot switch, 1-pedal With cover, without latching Metal enclosure IP..

3SE2902-0AA20

SIEMENS

Momentary-contact foot switch, 1-pedal With cover, without latching Metal enclosure IP65, 1 NO+1 NC, cable entry M20 x 1.5

More details


Low-voltage industrial components > Foot switch

CONTROL AND CONTACTORS > Limit Switches and safety relays

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $160.19
Unit price: $160.19

Quantity Price
1+$160.19
2+$141.88
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Technical data

Momentary-contact foot switch, 1-pedal With cover, without latching Metal enclosure IP65, 1 NO+1 NC, cable entry M20 x 1.5
product brand nameSIRIUS
product designationmomentary-contact foot switch
product type designation3SE29
suitability for use safety switchNo
General technical data
protection class IPIP65
reference code according to IEC 81346-2S
Substance Prohibitance (Date)07/01/2006
number of switching steps1
number of the actuation pedals1
minimum actuating force in directions of actuation15 N
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
operational current at AC-15
● at 230 V rated value16 A
● at 400 V rated value16 A
operational current at DC-13
● at 24 V rated value3 A
● at 250 V rated value0.25 A
Enclosure
material of the enclosuremetal
color
● of the enclosureblack
● of the enclosure top partgrey
Actuator
product feature
● interlockNo
● latchingNo
Safety related data
B10 value with high demand rate according to SN 319201 000 000
proportion of dangerous failures
● with low demand rate according to SN 3192050 %
● with high demand rate according to SN 3192050 %
failure rate [FIT] with low demand rate according to SN 31920100 FIT
T1 value for proof test interval or service life according to IEC 6150820 y
cable entry typeM20 x 1.5
Ambient conditions
ambient temperature during operation-25 ... +80 °C
Installation/ mounting/ dimensions
height138 mm
width156 mm
depth265 mm
Certificates/ approvals

Downloads and manuals

General Product Approval

UL

CSA

Confirmation

CCC

EAC

EAC

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

Marine / Shippingother

RINA / Registro Italiano Navale

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:2/12/2021
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE2902-0AA20
Product DescriptionMomentary-contact foot switch, 1-pedal With cover, without latching Metal enclosure IP65, 1 NO+1 NC, cable entry M20 x 1.5
Product familySIRIUS 3SE2, 3SE3 foot switches
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works60 Day/Days
Net Weight (kg)1,425 Kg
Packaging Dimension347,00 x 299,00 x 149,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209576575
UPC754554949826
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group3750
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-18
eClass7.127-37-12-18
eClass827-37-12-18
eClass927-37-12-18
eClass9.127-37-12-18
ETIM5EC001258
ETIM6EC001258
ETIM7EC001258
ETIM8EC001258
IDEA45275
UNSPSC1539-12-22-22

ETIM data

ETIM: EC001258 - Foot switch

Value Unit
Type of command (EF002399) -
Degree of protection (NEMA) (EF011959) -
With protection hood (EF002400) true
With interlocking (EF002401) false
Material (EF002169) Metal
With protective insulation (EF006523) FALSE
Colour (EF000007) Grey
Number of switch levels (EF000246) 1
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) -
Switching function latching (EF007447) false
Suitable for safety functions (EF001597) false
Rated operation current Ie at AC-15, 230 V (EF001385) 16A
Degree of protection (IP) (EF005474) IP65
Width (EF000008) 156.0mm
Height (EF000040) 265.0mm
Depth (EF000049) 138.0mm


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG SIEMENS SIRIUS INDUSTRIAL CONTROLS EN.pdf 279 Mbytes
3SE2902-0AA20 3SE2902-0AA20 EN_3SE2902-0AA20.pdf 206 Kbytes 3SE2902-0AA20 3SE2902-0AA20 EN_3SE2902-0AA20.pdf
