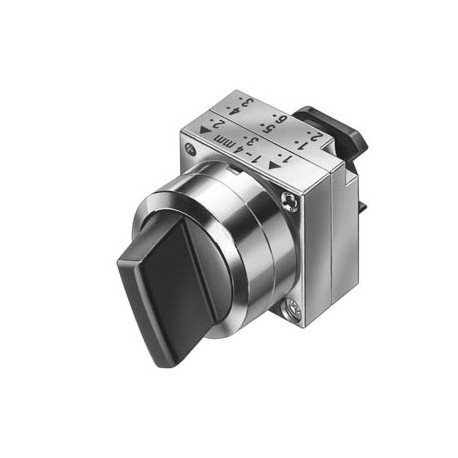

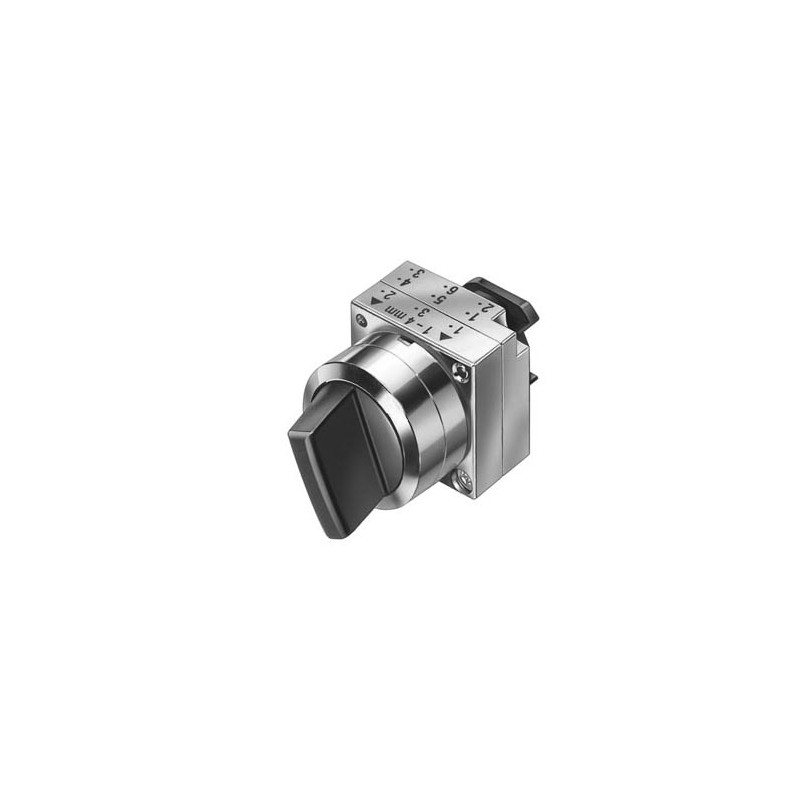

3SB3501-2FA51 SIEMENS 22MM METAL ROUND ACTUATOR: SELECTOR SWITCH LEFT LATCH.,RI.MOMEN.CONT.TYPE 3 SWITCH PO..
3SB3501-2FA51
SIEMENS
22MM METAL ROUND ACTUATOR: SELECTOR SWITCH LEFT LATCH.,RI.MOMEN.CONT.TYPE 3 SWITCH POSITIONS I-O-II ILLUMINATED WITH HOLDER BLUE !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor
CONTROL AND CONTACTORS > Commanding and signaling devices
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Design of the product | Single device round | |
| Enclosure: | ||
| Number of command points | 1 | |
| Actuator: | ||
| Design of the operating mechanism | selector switch | |
| Manner of function of the actuating element | Latching (left), momentary contact (right) | |
| Product extension optional Light source | Yes | |
| Color | ||
| ● of the actuating element | Blue | |
| Material of the actuating element | plastic | |
| Outer diameter of the actuating element | 28.5 mm | |
| Type of unlocking device | rotate-to-unlatch mechanism | |
| Number of switching positions | 3 | |
| Actuating angle | ||
| ● clockwise | 50° | |
| ● anticlockwise | 50° | |
| Front ring: | ||
| Product component front ring | Yes | |
| Design of the front ring | Standard | |
| Material of the front ring | metal | |
| Color of the front ring | silver | |
| Holder: | ||
| Material of the holder | Metal | |
| General technical data: | ||
| Product function | ||
| ● EMERGENCY OFF function | No | |
| ● EMERGENCY STOP function | No | |
| Protection class IP | IP67 | |
| Vibration resistance | ||
| ● acc. to IEC 60068-2-6 | 20 ... 200 Hz: 5g | |
| Operating frequency maximum | 1 000 1/h | |
| Mechanical service life (switching cycles) | ||
| ● typical | 300 000 | |
| Equipment marking | ||
| ● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | S | |
| ● acc. to DIN EN 61346-2 | S | |
| ● acc. to DIN EN 81346-2 | S | |
| Connections/ Terminals: | ||
| Tightening torque of the screws in the bracket | 1.4 ... 1.6 N·m | |
| Ambient conditions: | ||
| Ambient temperature | ||
| ● during operation | -25 ... +70 °C | |
| ● during storage | -40 ... +80 °C | |
| Environmental category during operation acc. to IEC 60721 | 3K6 | |
| Installation/ mounting/ dimensions: | ||
| Mounting type | front mounting | |
| Shape of the installation opening | round | |
| Mounting diameter | 22 mm | |
| Mounting height | 24 mm | |
| Installation width | 28.5 mm | |
| Installation depth | 29 mm | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SB3501-2FA51 SIEMENS 22MM METAL ROUND ACTUATOR: SELECTOR SWITCH LEFT LATCH.,RI.MOMEN.CONT.TYPE 3 SWITCH | 66 Kbytes |
|
