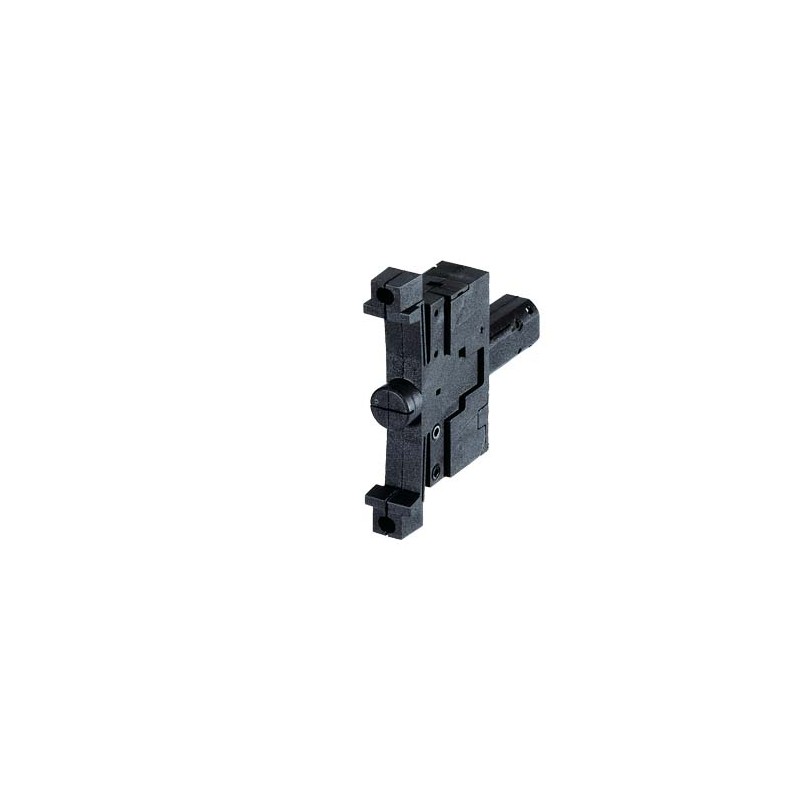

3SB3423-1RD SIEMENS COMPONENT FOR ENCLOSURE, 22MM LAMP HOLDER WITH INTEGRATED LED 230V AC RATED VOLTAGE 230..
3SB3423-1RD
SIEMENS
COMPONENT FOR ENCLOSURE, 22MM LAMP HOLDER WITH INTEGRATED LED 230V AC RATED VOLTAGE 230V AC SPRING-LOADED TERMINAL BLUE !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is >>3SU1401-2BF50-3AA0<<
CONTROL AND CONTACTORS > Commanding and signaling devices
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product designation | lampholder | |
| Contact block/ lampholder: | ||
| Mounting type | integrated | |
| Number of lampholders | 1 | |
| General technical data: | ||
| Product function | ||
| ● positive opening | No | |
| Product component | ||
| ● diode | Yes | |
| ● lamp transformer | No | |
| ● Light source | Yes | |
| ● series resistor | No | |
| Insulation voltage | ||
| ● rated value | 400 V | |
| Degree of pollution | class 3 | |
| Type of voltage | ||
| ● of the operating voltage | AC | |
| Surge voltage resistance rated value | 4 kV | |
| Protection class IP | ||
| ● of the enclosure | IP40 | |
| ● of the terminal | IP20 | |
| Equipment marking | ||
| ● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | H | |
| ● acc. to DIN EN 61346-2 | P | |
| ● acc. to DIN EN 81346-2 | P | |
| Operating voltage 1 | ||
| ● at AC | ||
| — at 50 Hz rated value | 230 V | |
| — at 60 Hz rated value | 230 V | |
| Supply voltage: | ||
| Type of voltage of the supply voltage | ||
| ● of the light source | AC | |
| Supply voltage 1 of the light source at AC | ||
| ● at 50 Hz rated value | 230 V | |
| ● at 60 Hz rated value | 230 V | |
| Relative negative tolerance of the supply voltage | -15 % | |
| Relative positive tolerance of the supply voltage | 10 % | |
| Auxiliary circuit: | ||
| Number of NC contacts | ||
| ● for auxiliary contacts | 0 | |
| Number of NO contacts | ||
| ● for auxiliary contacts | 0 | |
| Number of CO contacts | ||
| ● for auxiliary contacts | 0 | |
| Consumed current for rated value of supply voltage maximum | 17 mA | |
| Connections/ Terminals: | ||
| Type of electrical connection | spring-loaded terminals | |
| Type of connectable conductor cross-sections | ||
| ● for auxiliary contacts | ||
| — solid | 2x (0.25 ... 1.5 mm²) | |
| — finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) | |
| — finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) | |
| ● at AWG conductors for auxiliary contacts | 2x (24 ... 16) | |
| Lamp: | ||
| Type of light source | LED | |
| Color of the light source | blue | |
| Ambient conditions: | ||
| Ambient temperature | ||
| ● during operation | -25 ... +70 °C | |
| ● during storage | -25 ... +80 °C | |
| Installation/ mounting/ dimensions: | ||
| Mounting type | floor mounting | |
| Height | 49 mm | |
| Width | 10 mm | |
| Depth | 28 mm | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SB3423-1RD SIEMENS COMPONENT FOR ENCLOSURE, 22MM LAMP HOLDER WITH INTEGRATED LED 230V AC RATED VOLTAGE 2 | 70 Kbytes |
|
