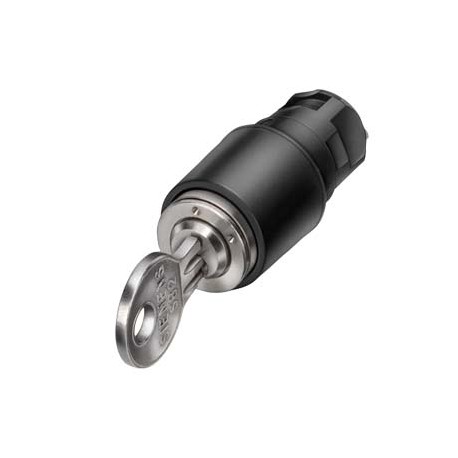

3SB2000-4QA01 SIEMENS Key-operated switch, 16 mm, round, plastic, CES, SB2, 3 switch positions I O II, momen.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SB2000-4QA01 SIEMENS Key-operated switch, 16 mm, round, plastic, CES, SB2, 3 switch positions I O II, momen..

3SB2000-4QA01

SIEMENS

Key-operated switch, 16 mm, round, plastic, CES, SB2, 3 switch positions I>O

Drive element, 16mm, CES lock, I-0-II, as pushbutton, removable key in 0. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Front element for selector switch

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $63.09
Unit price: $63.09

Quantity Price
1+$63.09
2+$57.15
3+$52.43
4+$49.76
5+$48.38
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Key-operated switch, 16 mm, round, plastic, CES, SB2, 3 switch positions I>O<II, momentary contact type, Retraction from left and right, Actuating angle 2 x 50 degree, key removal O, possible special locks: SB3, SB4, SB5
product brand nameSIRIUS
product designationKey-operated switches
design of the productSingle device round
product type designation3SB2
Enclosure
number of command points1
Actuator
design of the actuating elementKey-operated switch
principle of operation of the actuating elementmomentary contact type
product extension optional light sourceNo
material of the actuating elementplastic
outer diameter of the actuating element19 mm
type of unlocking devicewithout
number of switching positions3
switch position for key distractionO
actuating angle
● clockwise50°
● anticlockwise50°
lock makeCES
Front ring
product component front ringYes
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
General technical data
product function
● EMERGENCY OFF functionNo
● EMERGENCY STOP functionNo
protection class IPIP65
vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5g
operating frequency maximum1 000 1/h
mechanical service life (switching cycles) typical300 000
reference code according to IEC 81346-2S
Substance Prohibitance (Date)07/01/2006
Connections/ Terminals
tightening torque of the screws in the bracket0.4 N·m
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213K6
Installation/ mounting/ dimensions
fastening methodfront plate mounting
shape of the installation openinground
mounting diameter16 mm
mounting height20 mm
installation width19 mm
installation depth50 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

CSA

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Special Test Certificate

Test Certificatesother

Miscellaneous

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SB2000-4QA01
Product DescriptionKey-operated switch, 16 mm, round, plastic, CES, SB2, 3 switch positions I>O<II, momentary contact type, Retraction from left and right, Actuating angle 2 x 50 degree, key removal O, possible special locks: SB3, SB4, SB5
Product familyActuating and signaling elements
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,040 Kg
Packaging Dimension47,00 x 79,00 x 53,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209091832
UPC754554865645
Commodity Code83014090
LKZ_FDB/ CatalogIDCC-IC10
Product Group5834
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-13
eClass7.127-37-12-13
eClass827-37-12-13
eClass927-37-12-13
eClass9.127-37-12-13
ETIM5EC000222
ETIM6EC000222
ETIM7EC000222
ETIM8EC000222
IDEA45247
UNSPSC1439-12-22-24
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000222 - Front element for selector switch

Value Unit
Colour control element (EF007167) -
Degree of protection (NEMA) (EF011959) -
Number of switch positions (EF000231) 3
Type of control element (EF006976) Key
Suitable for illumination (EF001142) false
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 16.0mm
Width opening (EF004565) 19.0mm
Height opening (EF004778) 20.0mm
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
With front ring (EF006014) true
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Degree of protection (IP), front side (EF003118) IP65
