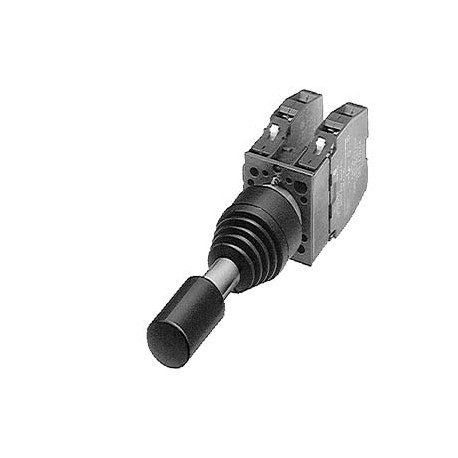

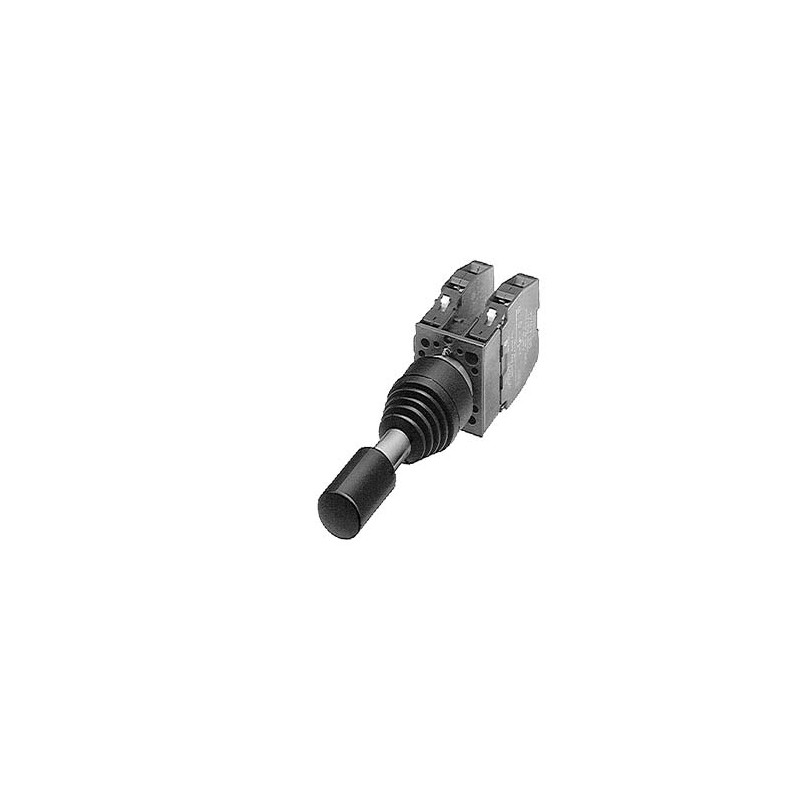

3SB1208-7JW01 SIEMENS COORDINATE SWITCH, 22MM, ROUND, PLASTIC, BLACK, PLASTIC FRONT RING BLACK, 4 SWITCH PO..
3SB1208-7JW01
SIEMENS
Coordinate switch, 22 mm, round, plastic, black, Plastic front ring black, 4 switch positions, momentary contact type, with mechanical interlocking in O position, with holder, 1 NO per direction
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
More info
▲| Enclosure: | ||
| Shape of the enclosure front | round | |
| Material of the enclosure | plastic | |
| Actuator: | ||
| Design of the operating mechanism | joystick | |
| Number of switching positions | 4 | |
| Button: | ||
| Design of the button | raised | |
| Color of the button | black | |
| Front ring: | ||
| Product component front ring | Yes | |
| Material of the front ring | plastic | |
| Color of the front ring | black | |
| General technical data: | ||
| Type of voltage | ||
| ● of the operating voltage | AC/DC | |
| Protection class IP | IP65 | |
| Vibration resistance | ||
| ● acc. to IEC 60068-2-6 | 20 ... 200 Hz: 5g | |
| Operating frequency maximum | 1 000 1/h | |
| Mechanical service life (switching cycles) | ||
| ● typical | 500 000 | |
| Equipment marking | ||
| ● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | S | |
| ● acc. to DIN EN 61346-2 | S | |
| ● acc. to DIN EN 81346-2 | S | |
| Operating voltage | ||
| ● rated value | 5 ... 500 V | |
| Auxiliary circuit: | ||
| Number of NC contacts | ||
| ● for auxiliary contacts | 0 | |
| Number of NO contacts | ||
| ● for auxiliary contacts | 4 | |
| Number of CO contacts | ||
| ● for auxiliary contacts | 0 | |
| Connections/ Terminals: | ||
| Type of electrical connection | screw-type terminals | |
| Tightening torque of the screws in the bracket | 0.8 N·m | |
| Ambient conditions: | ||
| Ambient temperature | ||
| ● during operation | -25 ... +70 °C | |
| ● during storage | -40 ... +80 °C | |
| Installation/ mounting/ dimensions: | ||
| Mounting type | front mounting | |
| Height | 45 mm | |
| Width | 45 mm | |
| Depth | 142 mm | |
| Shape of the installation opening | round | |
| Mounting diameter | 22 mm | |
| Mounting height | 82 mm | |
| Installation width | 30 mm | |
