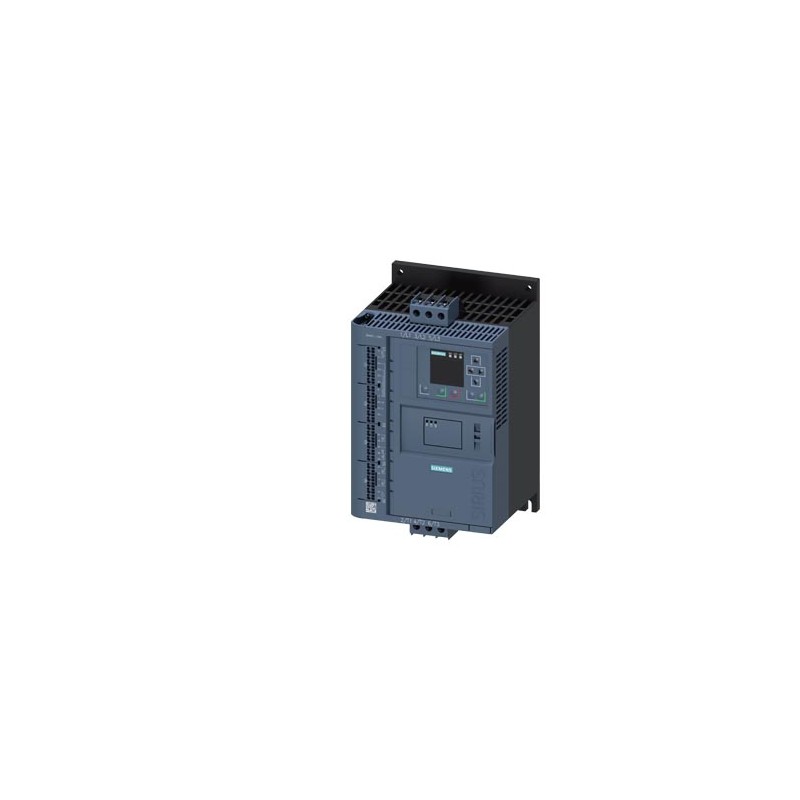

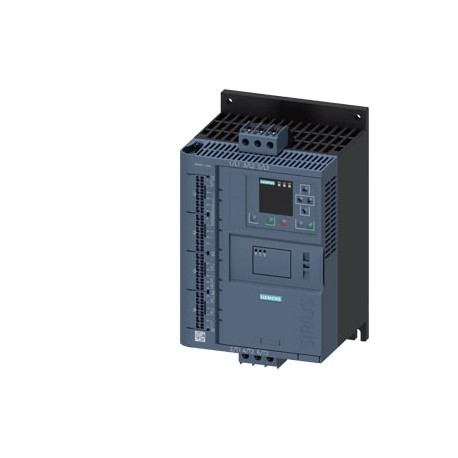

3RW5515-3HA05 SIEMENS SIRIUS soft starter 200-600 V 25 A, 24 V AC/DC spring-type terminals
3RW5515-3HA05
SIEMENS
SIRIUS soft starter 200-600 V 25 A, 24 V AC/DC spring-type terminals
SIRIUS soft starter 200-600 V 25 A, 24 V AC/DC Spring connection. Manufactured to order. Non-Cancelable Non-Returnable.
CONTROL AND CONTACTORS > Soft starters for high-feature applications
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RW5515-3HA05 | ||||||||||||||||||||||||||||||||||||
| Product Description | SIRIUS soft starter 200-600 V 25 A, 24 V AC/DC spring-type terminals | ||||||||||||||||||||||||||||||||||||
| Product family | 3RW55 soft starters | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42S / 42S | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 100 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 3,170 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 287,00 x 392,00 x 285,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4047621039237 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766813528 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 4982 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 15.02.2018 | ||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000640 - Soft starter
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Rated operation current Ie at 40 °C Tu (EF007039) | 25 | A |
| Rated operating voltage Ue (EF002418) | ['200', '600'] | V |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 5.5 | kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 11.0 | kW |
| Rated power three-phase motor, inside delta, at 230 V (EF007055) | 11.0 | kW |
| Rated power three-phase motor, inside delta, at 400 V (EF007056) | 18.5 | kW |
| Function (EF000030) | Single direction | |
| Internal bypass (EF009214) | true | |
| With display (EF000458) | true | |
| Torque control (EF009215) | true | |
| Rated surrounding temperature without derating (EF007074) | 40 °C | °C |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['24', '-'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['24', '-'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['24', '-'] | V |
| Voltage type for actuating (EF008242) | AC/DC | |
| Integrated motor overload protection (EF007297) | Electronic, tripping in the event of thermal overload of the | |
| Release class (EF006668) | Adjustable | |
| Degree of protection (IP) (EF005474) | IP00 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3RW5515-3HA05 3RW5515-3HA05 EN_3RW5515-3HA05.pdf | 1 Mbytes |
|
