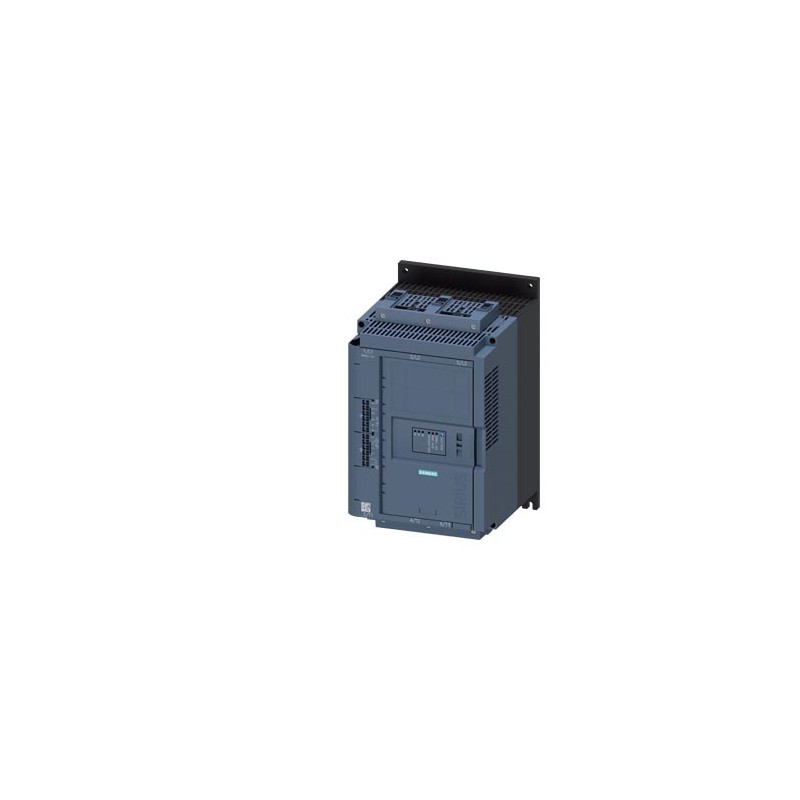

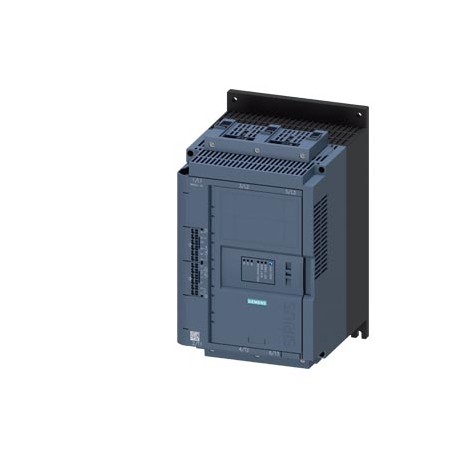

3RW5227-3AC15 SIEMENS SIRIUS soft starter 200-600 V 93 A, 110-250 V AC spring-type terminals Analog output View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RW5227-3AC15 SIEMENS SIRIUS soft starter 200-600 V 93 A, 110-250 V AC spring-type terminals Analog output

3RW5227-3AC15

SIEMENS

SIRIUS soft starter 200-600 V 93 A, 110-250 V AC spring-type terminals Analog output

SIRIUS soft starter 200-600 V 93 A, 110-250 V AC Spring connection Analog output. Manufactured to order. Non-Cancelable Non-Returnable.

More details


CONTROL AND CONTACTORS > Soft starters for high-feature applications

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $2,184.63
Unit price: $2,184.63
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

SIRIUS soft starter 200-600 V 93 A, 110-250 V AC spring-type terminals Analog output
product brand nameSIRIUS
product categoryHybrid switching devices
product designationSoft starter
product type designation3RW52
manufacturer's article number
● of standard HMI module usable3RW5980-0HS00
● of high feature HMI module usable3RW5980-0HF00
● of communication module PROFINET standard usable3RW5980-0CS00
● of communication module PROFIBUS usable3RW5980-0CP00
● of communication module Modbus TCP usable3RW5980-0CT00
● of communication module Modbus RTU usable3RW5980-0CR00
● of communication module Ethernet/IP3RW5980-0CE00
● of circuit breaker usable at 400 V3VA2216-7MN32-0AA0; Type of coordination 1, Iq = 15 kA, CLASS 10
● of circuit breaker usable at 500 V3VA2216-7MN32-0AA0; Type of coordination 1, Iq = 10 kA, CLASS 10
● of circuit breaker usable at 400 V at inside-delta circuit3VA2220-7MN32-0AA0; Type of coordination 1, Iq = 15 kA, CLASS 10
● of circuit breaker usable at 500 V at inside-delta circuit3VA2220-7MN32-0AA0; Type of coordination 1, Iq = 10 kA, CLASS 10
● of the gG fuse usable up to 690 V3NA3136-6; Type of coordination 1, Iq = 65 kA
● of the gG fuse usable at inside-delta circuit up to 500 V3NA3136-6; Type of coordination 1, Iq = 65 kA
● of full range R fuse link for semiconductor protection usable up to 690 V3NE1224-0; Type of coordination 2, Iq = 65 kA
● of back-up R fuse link for semiconductor protection usable up to 690 V3NE4124; Type of coordination 2, Iq = 65 kA
General technical data
starting voltage [%]30 ... 100 %
stopping voltage [%]50 %; non-adjustable
start-up ramp time of soft starter0 ... 20 s
current limiting value [%] adjustable130 ... 700 %
certificate of suitability
● CE markingYes
● UL approvalYes
● CSA approvalYes
product component
● HMI-High FeatureNo
● is supported HMI-StandardYes
● is supported HMI-High FeatureYes
product feature integrated bypass contact systemYes
number of controlled phases3
trip classCLASS 10A (default) / 10E / 20E; acc. to IEC 60947-4-2
buffering time in the event of power failure
● for main current circuit100 ms
● for control circuit100 ms
insulation voltage rated value600 V
degree of pollution3, acc. to IEC 60947-4-2
impulse voltage rated value6 kV
blocking voltage of the thyristor maximum1 800 V
service factor1
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation
● between main and auxiliary circuit600 V
shock resistance15 g / 11 ms, from 12 g / 11 ms with potential contact lifting
vibration resistance15 mm to 6 Hz; 2g to 500 Hz
utilization category according to IEC 60947-4-2AC 53a
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)02/15/2018
product function
● ramp-up (soft starting)Yes
● ramp-down (soft stop)Yes
● Soft TorqueYes
● adjustable current limitationYes
● pump ramp downYes
● intrinsic device protectionYes
● motor overload protectionYes; Electronic motor overload protection
● evaluation of thermistor motor protectionNo
● inside-delta circuitYes
● auto-RESETYes
● manual RESETYes
● remote resetYes; By turning off the control supply voltage
● communication functionYes
● operating measured value displayYes; Only in conjunction with special accessories
● error logbookYes; Only in conjunction with special accessories
● via software parameterizableNo
● via software configurableYes
● PROFIenergyYes; in connection with the PROFINET Standard communication module
● firmware updateYes
● removable terminal for control circuitYes
● torque controlNo
● analog outputYes; 4 ... 20 mA (default) / 0 ... 10 V (parameterizable with High Feature HMI)
Power Electronics
operational current
● at 40 °C rated value93 A
● at 50 °C rated value83 A
● at 60 °C rated value76 A
operational current at inside-delta circuit
● at 40 °C rated value161 A
● at 50 °C rated value143 A
● at 60 °C rated value131 A
operating voltage
● rated value200 ... 600 V
● at inside-delta circuit rated value200 ... 600 V
relative negative tolerance of the operating voltage-15 %
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage at inside-delta circuit-15 %
relative positive tolerance of the operating voltage at inside-delta circuit10 %
operating power for 3-phase motors
● at 230 V at 40 °C rated value22 kW
● at 230 V at inside-delta circuit at 40 °C rated value45 kW
● at 400 V at 40 °C rated value45 kW
● at 400 V at inside-delta circuit at 40 °C rated value90 kW
● at 500 V at 40 °C rated value55 kW
● at 500 V at inside-delta circuit at 40 °C rated value110 kW
Operating frequency 1 rated value50 Hz
Operating frequency 2 rated value60 Hz
relative negative tolerance of the operating frequency-10 %
relative positive tolerance of the operating frequency10 %
adjustable motor current
● at rotary coding switch on switch position 140.5 A
● at rotary coding switch on switch position 244 A
● at rotary coding switch on switch position 347.5 A
● at rotary coding switch on switch position 451 A
● at rotary coding switch on switch position 554.5 A
● at rotary coding switch on switch position 658 A
● at rotary coding switch on switch position 761.5 A
● at rotary coding switch on switch position 865 A
● at rotary coding switch on switch position 968.5 A
● at rotary coding switch on switch position 1072 A
● at rotary coding switch on switch position 1175.5 A
● at rotary coding switch on switch position 1279 A
● at rotary coding switch on switch position 1382.5 A
● at rotary coding switch on switch position 1486 A
● at rotary coding switch on switch position 1589.5 A
● at rotary coding switch on switch position 1693 A
● minimum40.5 A
adjustable motor current
● for inside-delta circuit at rotary coding switch on switch position 170.1 A
● for inside-delta circuit at rotary coding switch on switch position 276.2 A
● for inside-delta circuit at rotary coding switch on switch position 382.3 A
● for inside-delta circuit at rotary coding switch on switch position 488.3 A
● for inside-delta circuit at rotary coding switch on switch position 594.4 A
● for inside-delta circuit at rotary coding switch on switch position 6100 A
● for inside-delta circuit at rotary coding switch on switch position 7107 A
● for inside-delta circuit at rotary coding switch on switch position 8113 A
● for inside-delta circuit at rotary coding switch on switch position 9119 A
● for inside-delta circuit at rotary coding switch on switch position 10125 A
● for inside-delta circuit at rotary coding switch on switch position 11131 A
● for inside-delta circuit at rotary coding switch on switch position 12137 A
● for inside-delta circuit at rotary coding switch on switch position 13143 A
● for inside-delta circuit at rotary coding switch on switch position 14149 A
● for inside-delta circuit at rotary coding switch on switch position 15155 A
● for inside-delta circuit at rotary coding switch on switch position 16161 A
● at inside-delta circuit minimum70.1 A
minimum load [%]15 %; Relative to smallest settable Ie
power loss [W] for rated value of the current at AC
● at 40 °C after startup40 W
● at 50 °C after startup37 W
● at 60 °C after startup35 W
power loss [W] at AC at current limitation 350 %
● at 40 °C during startup1 270 W
● at 50 °C during startup1 077 W
● at 60 °C during startup959 W
Control circuit/ Control
type of voltage of the control supply voltageAC
control supply voltage at AC
● at 50 Hz110 ... 250 V
● at 60 Hz110 ... 250 V
relative negative tolerance of the control supply voltage at AC at 50 Hz-15 %
relative positive tolerance of the control supply voltage at AC at 50 Hz10 %
relative negative tolerance of the control supply voltage at AC at 60 Hz-15 %
relative positive tolerance of the control supply voltage at AC at 60 Hz10 %
control supply voltage frequency50 ... 60 Hz
relative negative tolerance of the control supply voltage frequency-10 %
relative positive tolerance of the control supply voltage frequency10 %
control supply current in standby mode rated value30 mA
holding current in bypass operation rated value75 mA
locked-rotor current at close of bypass contact maximum2.5 A
inrush current peak at application of control supply voltage maximum12.2 A
duration of inrush current peak at application of control supply voltage2.2 ms
design of the overvoltage protectionVaristor
design of short-circuit protection for control circuit4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply
Inputs/ Outputs
number of digital inputs1
number of digital outputs3
● not parameterizable2
digital output version2 normally-open contacts (NO) / 1 changeover contact (CO)
number of analog outputs1
switching capacity current of the relay outputs
● at AC-15 at 250 V rated value3 A
● at DC-13 at 24 V rated value1 A
Installation/ mounting/ dimensions
mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
fastening methodscrew fixing
height306 mm
width185 mm
depth203 mm
required spacing with side-by-side mounting
● forwards10 mm
● backwards0 mm
● upwards100 mm
● downwards75 mm
● at the side5 mm
weight without packaging6.9 kg
Connections/ Terminals
type of electrical connection
● for main current circuitbox terminal
● for control circuitspring-loaded terminals
width of connection bar maximum25 mm
type of connectable conductor cross-sections
● for main contacts for box terminal using the front clamping point solid1x (2.5 ... 16 mm²)
● for main contacts for box terminal using the front clamping point finely stranded with core end processing1x (2.5 ... 50 mm²)
● for main contacts for box terminal using the front clamping point stranded1x (10 ... 70 mm²)
● at AWG cables for main contacts for box terminal using the front clamping point1x (10 ... 2/0)
● for main contacts for box terminal using the back clamping point solid1x (2.5 ... 16 mm²)
● at AWG cables for main contacts for box terminal using the back clamping point1x (10 ... 2/0)
● for main contacts for box terminal using both clamping points solid2x (2.5 ... 16 mm²)
● for main contacts for box terminal using both clamping points finely stranded with core end processing2x (2.5 ... 35 mm²)
● for main contacts for box terminal using both clamping points stranded2x (6 ... 16 mm²), 2x (10 ... 50 mm²)
● for main contacts for box terminal using the back clamping point finely stranded with core end processing1x (2.5 ... 50 mm²)
● for main contacts for box terminal using the back clamping point stranded1x (10 ... 70 mm²)
type of connectable conductor cross-sections
● for control circuit solid2x (0.25 ... 1.5 mm²)
● for control circuit finely stranded with core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables for control circuit solid2x (24 ... 16)
● at AWG cables for control circuit finely stranded with core end processing2x (24 ... 16)
wire length
● between soft starter and motor maximum800 m
● at the digital inputs at AC maximum100 m
tightening torque
● for main contacts with screw-type terminals4.5 ... 6 N·m
● for auxiliary and control contacts with screw-type terminals0.8 ... 1.2 N·m
tightening torque [lbf·in]
● for main contacts with screw-type terminals40 ... 53 lbf·in
● for auxiliary and control contacts with screw-type terminals7 ... 10.3 lbf·in
Ambient conditions
installation altitude at height above sea level maximum5 000 m; Derating as of 1000 m, see catalog
ambient temperature
● during operation-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
● during storage and transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4
● during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)
EMC emitted interferenceacc. to IEC 60947-4-2: Class A
Communication/ Protocol
communication module is supported
● PROFINET standardYes
● EtherNet/IPYes
● Modbus RTUYes
● Modbus TCPYes
● PROFIBUSYes
UL/CSA ratings
manufacturer's article number
● of circuit breaker
— usable for Standard Faults at 460/480 V according to ULSiemens type: 3VA51, max. 125 A; Iq = 10 kA
— usable for High Faults at 460/480 V according to ULSiemens type: 3VA51, max. 125 A; Iq max = 65 kA
— usable for Standard Faults at 460/480 V at inside-delta circuit according to ULSiemens type: 3VA51, max. 125 A; Iq = 10 kA
— usable for High Faults at 460/480 V at inside-delta circuit according to ULSiemens type: 3VA51, max. 125 A; Iq max = 65 kA
— usable for Standard Faults at 575/600 V according to ULSiemens type: 3VA51, max. 125 A; Iq = 10 kA
— usable for Standard Faults at 575/600 V at inside-delta circuit according to ULSiemens type: 3VA51, max. 125 A; Iq = 10 kA
● of the fuse
— usable for Standard Faults up to 575/600 V according to ULType: Class RK5 / K5, max. 300 A; Iq = 10 kA
— usable for High Faults up to 575/600 V according to ULType: Class J / L, max. 250 A; Iq = 100 kA
— usable for Standard Faults at inside-delta circuit up to 575/600 V according to ULType: Class RK5 / K5, max. 300 A; Iq = 10 kA
— usable for High Faults at inside-delta circuit up to 575/600 V according to ULType: Class J / L, max. 250 A; Iq = 100 kA
operating power [hp] for 3-phase motors
● at 200/208 V at 50 °C rated value25 hp
● at 220/230 V at 50 °C rated value30 hp
● at 460/480 V at 50 °C rated value60 hp
● at 575/600 V at 50 °C rated value75 hp
● at 200/208 V at inside-delta circuit at 50 °C rated value40 hp
● at 220/230 V at inside-delta circuit at 50 °C rated value50 hp
● at 460/480 V at inside-delta circuit at 50 °C rated value100 hp
● at 575/600 V at inside-delta circuit at 50 °C rated value125 hp
contact rating of auxiliary contacts according to ULR300-B300
Safety related data
protection class IP on the front according to IEC 60529IP00; IP20 with cover
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with cover
electromagnetic compatibilityin accordance with IEC 60947-4-2
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

Marine / Shippingother

PRS / Polski Rejestr Statkow

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Characteristic: Installation altitude
Simulation Tool for Soft Starters (STS)
last modified:4/10/2022
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RW5227-3AC15
Product DescriptionSIRIUS soft starter 200-600 V 93 A, 110-250 V AC spring-type terminals Analog output
Product family3RW52 soft starters
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42S / 42S
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works100 Day/Days
Net Weight (kg)7,687 Kg
Packaging Dimension303,00 x 402,00 x 331,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621037332
UPC804766688287
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group4981
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 15.02.2018
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecamethylcyclohexasiloxane (D6)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dibutylbis(pentane-2,4-dionato-O,O')tin

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-07
eClass7.127-37-09-07
eClass827-37-09-07
eClass927-37-09-07
eClass9.127-37-09-07
ETIM5EC000640
ETIM6EC000640
ETIM7EC000640
ETIM8EC000640
IDEA44740
UNSPSC1539-12-15-21

ETIM data

ETIM: EC000640 - Soft starter

Value Unit
With display (EF000458) -
Integrated motor overload protection (EF007297) -
Degree of protection (NEMA) (EF011959) -
Rated operation current Ie at 40 °C Tu (EF007039) 93A
Rated operating voltage Ue (EF002418) ['200', '600']V
Rated power three-phase motor, inline, at 230 V (EF007053) 22.0kW
Rated power three-phase motor, inline, at 400 V (EF007054) 45.0kW
Rated power three-phase motor, inside delta, at 230 V (EF007055) 45.0kW
Rated power three-phase motor, inside delta, at 400 V (EF007056) 90.0kW
Function (EF000030) Single direction
Internal bypass (EF009214) true
Torque control (EF009215) false
Rated surrounding temperature without derating (EF007074) 40 °C°C
Rated control supply voltage Us at AC 50HZ (EF003978) ['110', '250']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['110', '250']V
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Release class (EF006668) Adjustable
Degree of protection (IP) (EF005474) IP00



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RW5227-3AC15 3RW5227-3AC15 EN_3RW5227-3AC15.pdf 1 Mbytes 3RW5227-3AC15 3RW5227-3AC15 EN_3RW5227-3AC15.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
