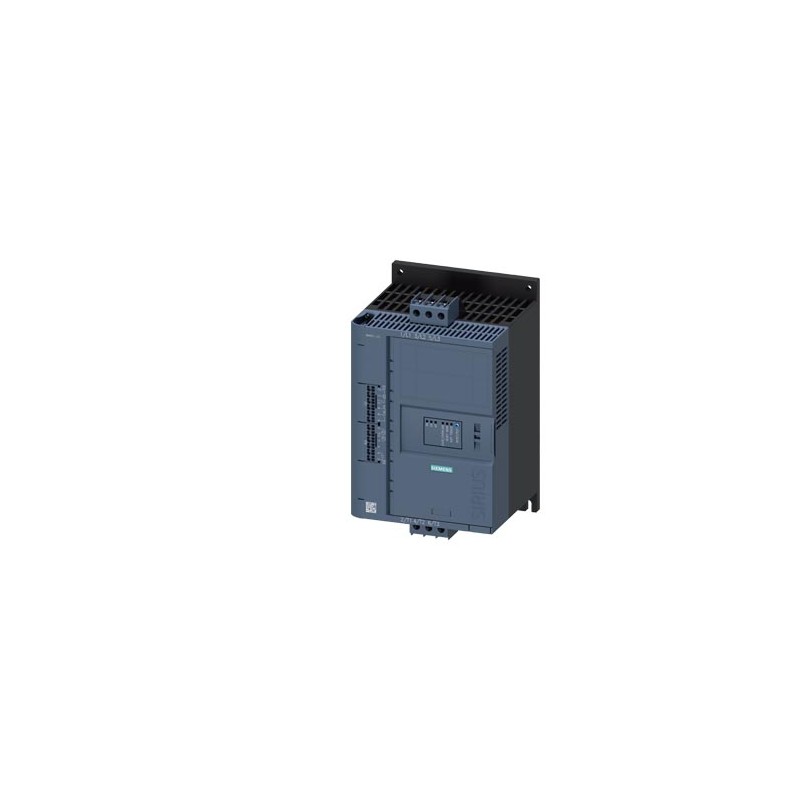

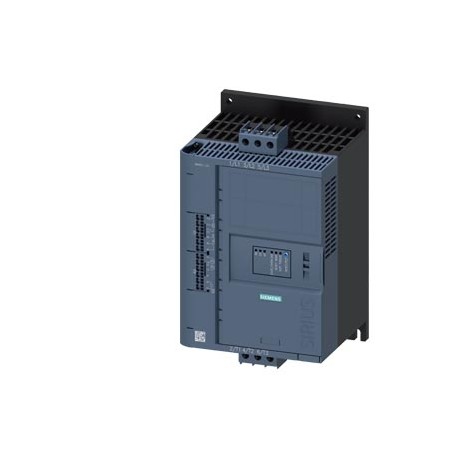

3RW5214-3TC15 SIEMENS SIRIUS soft starter 200-600 V 18 A, 110-250 V AC spring-type terminals Thermistor input View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RW5214-3TC15 SIEMENS SIRIUS soft starter 200-600 V 18 A, 110-250 V AC spring-type terminals Thermistor input

3RW5214-3TC15

SIEMENS

SIRIUS soft starter 200-600 V 18 A, 110-250 V AC spring-type terminals Thermistor input

SIRIUS soft starter 200-600 V 18 A, 110-250 V AC Spring connection Thermistor inlet. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Soft starter

CONTROL AND CONTACTORS > Soft starters for high-feature applications

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $984.80
Unit price: $984.80
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

SIRIUS soft starter 200-600 V 18 A, 110-250 V AC spring-type terminals Thermistor input
product brand nameSIRIUS
product categoryHybrid switching devices
product designationSoft starter
product type designation3RW52
manufacturer's article number
● of standard HMI module usable3RW5980-0HS00
● of high feature HMI module usable3RW5980-0HF00
● of communication module PROFINET standard usable3RW5980-0CS00
● of communication module PROFIBUS usable3RW5980-0CP00
● of communication module Modbus TCP usable3RW5980-0CT00
● of communication module Modbus RTU usable3RW5980-0CR00
● of communication module Ethernet/IP3RW5980-0CE00
● of circuit breaker usable at 400 V3RV2032-4DA10; Type of coordination 1, Iq = 65 kA, CLASS 10
● of circuit breaker usable at 500 V3RV2032-4DA10; Type of coordination 1, Iq = 15 kA, CLASS 10
● of circuit breaker usable at 400 V at inside-delta circuit3RV2032-4EA10; Type of coordination 1, Iq = 65 kA, CLASS 10
● of circuit breaker usable at 500 V at inside-delta circuit3RV2032-4EA10; Type of coordination 1, Iq = 15 kA, CLASS 10
● of the gG fuse usable up to 690 V3NA3820-6; Type of coordination 1, Iq = 65 kA
● of the gG fuse usable at inside-delta circuit up to 500 V3NA3820-6; Type of coordination 1, Iq = 65 kA
● of full range R fuse link for semiconductor protection usable up to 690 V3NE1802-0; Type of coordination 2, Iq = 65 kA
● of back-up R fuse link for semiconductor protection usable up to 690 V3NE8020-1; Type of coordination 2, Iq = 65 kA
General technical data
starting voltage [%]30 ... 100 %
stopping voltage [%]50 %; non-adjustable
start-up ramp time of soft starter0 ... 20 s
current limiting value [%] adjustable130 ... 700 %
certificate of suitability
● CE markingYes
● UL approvalYes
● CSA approvalYes
product component
● HMI-High FeatureNo
● is supported HMI-StandardYes
● is supported HMI-High FeatureYes
product feature integrated bypass contact systemYes
number of controlled phases3
trip classCLASS 10A (default) / 10E / 20E; acc. to IEC 60947-4-2
buffering time in the event of power failure
● for main current circuit100 ms
● for control circuit100 ms
insulation voltage rated value600 V
degree of pollution3, acc. to IEC 60947-4-2
impulse voltage rated value6 kV
blocking voltage of the thyristor maximum1 600 V
service factor1
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation
● between main and auxiliary circuit600 V
shock resistance15 g / 11 ms, from 12 g / 11 ms with potential contact lifting
vibration resistance15 mm to 6 Hz; 2g to 500 Hz
utilization category according to IEC 60947-4-2AC 53a
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)02/15/2018
product function
● ramp-up (soft starting)Yes
● ramp-down (soft stop)Yes
● Soft TorqueYes
● adjustable current limitationYes
● pump ramp downYes
● intrinsic device protectionYes
● motor overload protectionYes; Full motor protection (thermistor motor protection and electronic motor overload protection)
● evaluation of thermistor motor protectionYes; Type A PTC or Klixon / Thermoclick
● inside-delta circuitYes
● auto-RESETYes
● manual RESETYes
● remote resetYes; By turning off the control supply voltage
● communication functionYes
● operating measured value displayYes; Only in conjunction with special accessories
● error logbookYes; Only in conjunction with special accessories
● via software parameterizableNo
● via software configurableYes
● PROFIenergyYes; in connection with the PROFINET Standard communication module
● firmware updateYes
● removable terminal for control circuitYes
● torque controlNo
● analog outputNo
Power Electronics
operational current
● at 40 °C rated value18 A
● at 50 °C rated value16 A
● at 60 °C rated value14 A
operational current at inside-delta circuit
● at 40 °C rated value31.5 A
● at 50 °C rated value28 A
● at 60 °C rated value23.9 A
operating voltage
● rated value200 ... 600 V
● at inside-delta circuit rated value200 ... 600 V
relative negative tolerance of the operating voltage-15 %
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage at inside-delta circuit-15 %
relative positive tolerance of the operating voltage at inside-delta circuit10 %
operating power for 3-phase motors
● at 230 V at 40 °C rated value4 kW
● at 230 V at inside-delta circuit at 40 °C rated value7.5 kW
● at 400 V at 40 °C rated value7.5 kW
● at 400 V at inside-delta circuit at 40 °C rated value15 kW
● at 500 V at 40 °C rated value11 kW
● at 500 V at inside-delta circuit at 40 °C rated value18.5 kW
Operating frequency 1 rated value50 Hz
Operating frequency 2 rated value60 Hz
relative negative tolerance of the operating frequency-10 %
relative positive tolerance of the operating frequency10 %
adjustable motor current
● at rotary coding switch on switch position 17.5 A
● at rotary coding switch on switch position 28.2 A
● at rotary coding switch on switch position 38.9 A
● at rotary coding switch on switch position 49.6 A
● at rotary coding switch on switch position 510.3 A
● at rotary coding switch on switch position 611 A
● at rotary coding switch on switch position 711.7 A
● at rotary coding switch on switch position 812.4 A
● at rotary coding switch on switch position 913.1 A
● at rotary coding switch on switch position 1013.8 A
● at rotary coding switch on switch position 1114.5 A
● at rotary coding switch on switch position 1215.2 A
● at rotary coding switch on switch position 1315.9 A
● at rotary coding switch on switch position 1416.6 A
● at rotary coding switch on switch position 1517.3 A
● at rotary coding switch on switch position 1618 A
● minimum7.5 A
adjustable motor current
● for inside-delta circuit at rotary coding switch on switch position 113 A
● for inside-delta circuit at rotary coding switch on switch position 214.2 A
● for inside-delta circuit at rotary coding switch on switch position 315.4 A
● for inside-delta circuit at rotary coding switch on switch position 416.6 A
● for inside-delta circuit at rotary coding switch on switch position 517.8 A
● for inside-delta circuit at rotary coding switch on switch position 619.1 A
● for inside-delta circuit at rotary coding switch on switch position 720.3 A
● for inside-delta circuit at rotary coding switch on switch position 821.5 A
● for inside-delta circuit at rotary coding switch on switch position 922.7 A
● for inside-delta circuit at rotary coding switch on switch position 1023.9 A
● for inside-delta circuit at rotary coding switch on switch position 1125.1 A
● for inside-delta circuit at rotary coding switch on switch position 1226.3 A
● for inside-delta circuit at rotary coding switch on switch position 1327.5 A
● for inside-delta circuit at rotary coding switch on switch position 1428.8 A
● for inside-delta circuit at rotary coding switch on switch position 1530 A
● for inside-delta circuit at rotary coding switch on switch position 1631.2 A
● at inside-delta circuit minimum13 A
minimum load [%]15 %; Relative to smallest settable Ie
power loss [W] for rated value of the current at AC
● at 40 °C after startup17 W
● at 50 °C after startup17 W
● at 60 °C after startup16 W
power loss [W] at AC at current limitation 350 %
● at 40 °C during startup276 W
● at 50 °C during startup241 W
● at 60 °C during startup200 W
Control circuit/ Control
type of voltage of the control supply voltageAC
control supply voltage at AC
● at 50 Hz110 ... 250 V
● at 60 Hz110 ... 250 V
relative negative tolerance of the control supply voltage at AC at 50 Hz-15 %
relative positive tolerance of the control supply voltage at AC at 50 Hz10 %
relative negative tolerance of the control supply voltage at AC at 60 Hz-15 %
relative positive tolerance of the control supply voltage at AC at 60 Hz10 %
control supply voltage frequency50 ... 60 Hz
relative negative tolerance of the control supply voltage frequency-10 %
relative positive tolerance of the control supply voltage frequency10 %
control supply current in standby mode rated value30 mA
holding current in bypass operation rated value75 mA
locked-rotor current at close of bypass contact maximum0.17 A
inrush current peak at application of control supply voltage maximum12.2 A
duration of inrush current peak at application of control supply voltage2.2 ms
design of the overvoltage protectionVaristor
design of short-circuit protection for control circuit4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply
Inputs/ Outputs
number of digital inputs1
number of digital outputs3
● not parameterizable2
digital output version2 normally-open contacts (NO) / 1 changeover contact (CO)
number of analog outputs0
switching capacity current of the relay outputs
● at AC-15 at 250 V rated value3 A
● at DC-13 at 24 V rated value1 A
Installation/ mounting/ dimensions
mounting position+/- 10° rotation possible and can be tilted forward or backward on vertical mounting surface
fastening methodscrew fixing
height275 mm
width170 mm
depth152 mm
required spacing with side-by-side mounting
● forwards10 mm
● backwards0 mm
● upwards100 mm
● downwards75 mm
● at the side5 mm
weight without packaging2.1 kg
Connections/ Terminals
type of electrical connection
● for main current circuitscrew-type terminals
● for control circuitspring-loaded terminals
wire length for thermistor connection
● with conductor cross-section = 0.5 mm² maximum50 m
● with conductor cross-section = 1.5 mm² maximum150 m
● with conductor cross-section = 2.5 mm² maximum250 m
type of connectable conductor cross-sections
● for main contacts
— solid2x (1.0 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
— finely stranded with core end processing2x (1.0 ... 2.5 mm²), 2x (2.5 ... 6.0 mm²)
● at AWG cables for main current circuit solid2x (16 ... 12), 2x (14 ... 8)
type of connectable conductor cross-sections
● for control circuit solid2x (0.25 ... 1.5 mm²)
● for control circuit finely stranded with core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables for control circuit solid2x (24 ... 16)
● at AWG cables for control circuit finely stranded with core end processing2x (24 ... 16)
wire length
● between soft starter and motor maximum800 m
● at the digital inputs at AC maximum100 m
tightening torque
● for main contacts with screw-type terminals2 ... 2.5 N·m
● for auxiliary and control contacts with screw-type terminals0.8 ... 1.2 N·m
tightening torque [lbf·in]
● for main contacts with screw-type terminals18 ... 22 lbf·in
● for auxiliary and control contacts with screw-type terminals7 ... 10.3 lbf·in
Ambient conditions
installation altitude at height above sea level maximum5 000 m; Derating as of 1000 m, see catalog
ambient temperature
● during operation-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
● during storage and transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4
● during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)
EMC emitted interferenceacc. to IEC 60947-4-2: Class A
Communication/ Protocol
communication module is supported
● PROFINET standardYes
● EtherNet/IPYes
● Modbus RTUYes
● Modbus TCPYes
● PROFIBUSYes
UL/CSA ratings
manufacturer's article number
● of circuit breaker
— usable for Standard Faults at 460/480 V according to ULSiemens type: 3RV2742, max. 60 A or 3VA51, max. 60 A; Iq = 5 kA
— usable for High Faults at 460/480 V according to ULSiemens type: 3RV2742, max. 30 A or 3VA51, max. 35 A; Iq max = 65 kA
— usable for Standard Faults at 460/480 V at inside-delta circuit according to ULSiemens type: 3RV2742, max. 60 A or 3VA51, max. 60 A; Iq = 5 kA
— usable for High Faults at 460/480 V at inside-delta circuit according to ULSiemens type: 3VA51, max. 35 A; Iq max = 65 kA
— usable for Standard Faults at 575/600 V according to ULSiemens type: 3RV2742, max. 60 A or 3VA51, max. 60 A; Iq = 5 kA
— usable for Standard Faults at 575/600 V at inside-delta circuit according to ULSiemens type: 3RV2742, max. 60 A or 3VA51, max. 60 A; Iq = 5 kA
● of the fuse
— usable for Standard Faults up to 575/600 V according to ULType: Class RK5 / K5, max. 70 A; Iq = 5 kA
— usable for High Faults up to 575/600 V according to ULType: Class J / L, max. 70 A; Iq = 100 kA
— usable for Standard Faults at inside-delta circuit up to 575/600 V according to ULType: Class RK5 / K5, max. 70 A; Iq = 5 kA
— usable for High Faults at inside-delta circuit up to 575/600 V according to ULType: Class J / L, max. 70 A; Iq = 100 kA
operating power [hp] for 3-phase motors
● at 200/208 V at 50 °C rated value3 hp
● at 220/230 V at 50 °C rated value5 hp
● at 460/480 V at 50 °C rated value10 hp
● at 575/600 V at 50 °C rated value10 hp
● at 200/208 V at inside-delta circuit at 50 °C rated value7.5 hp
● at 220/230 V at inside-delta circuit at 50 °C rated value7.5 hp
● at 460/480 V at inside-delta circuit at 50 °C rated value20 hp
● at 575/600 V at inside-delta circuit at 50 °C rated value25 hp
contact rating of auxiliary contacts according to ULR300-B300
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
electromagnetic compatibilityin accordance with IEC 60947-4-2
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

CCC

Confirmation

UL

EAC

RCM

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

Marine / Shippingother

PRS / Polski Rejestr Statkow

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Characteristic: Installation altitude
Simulation Tool for Soft Starters (STS)
last modified:4/10/2022
Date
5/7/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RW5214-3TC15
Product DescriptionSIRIUS soft starter 200-600 V 18 A, 110-250 V AC spring-type terminals Thermistor input
Product family3RW52 soft starters
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42S / 42S
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works100 Day/Days
Net Weight (kg)2,300 Kg
Packaging Dimension280,00 x 373,00 x 284,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621036229
UPC804766687457
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group4981
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 15.02.2018
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecamethylcyclohexasiloxane (D6)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dibutylbis(pentane-2,4-dionato-O,O')tin

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-07
eClass7.127-37-09-07
eClass827-37-09-07
eClass927-37-09-07
eClass9.127-37-09-07
ETIM5EC000640
ETIM6EC000640
ETIM7EC000640
ETIM8EC000640
IDEA44740
UNSPSC1539-12-15-21

ETIM data

ETIM: EC000640 - Soft starter

Value Unit
Integrated motor overload protection (EF007297) -
With display (EF000458) -
Degree of protection (NEMA) (EF011959) -
Rated operation current Ie at 40 °C Tu (EF007039) 18A
Rated operating voltage Ue (EF002418) ['200', '600']V
Rated power three-phase motor, inline, at 230 V (EF007053) 4.0kW
Rated power three-phase motor, inline, at 400 V (EF007054) 7.5kW
Rated power three-phase motor, inside delta, at 230 V (EF007055) 7.5kW
Rated power three-phase motor, inside delta, at 400 V (EF007056) 15.0kW
Function (EF000030) Single direction
Internal bypass (EF009214) true
Torque control (EF009215) false
Rated surrounding temperature without derating (EF007074) 40 °C°C
Rated control supply voltage Us at AC 50HZ (EF003978) ['110', '250']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['110', '250']V
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Release class (EF006668) Adjustable
Degree of protection (IP) (EF005474) IP20



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RW5214-3TC15 3RW5214-3TC15 EN_3RW5214-3TC15.pdf 805 Kbytes 3RW5214-3TC15 3RW5214-3TC15 EN_3RW5214-3TC15.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
