3RW4466-6BC44
SIEMENS
1

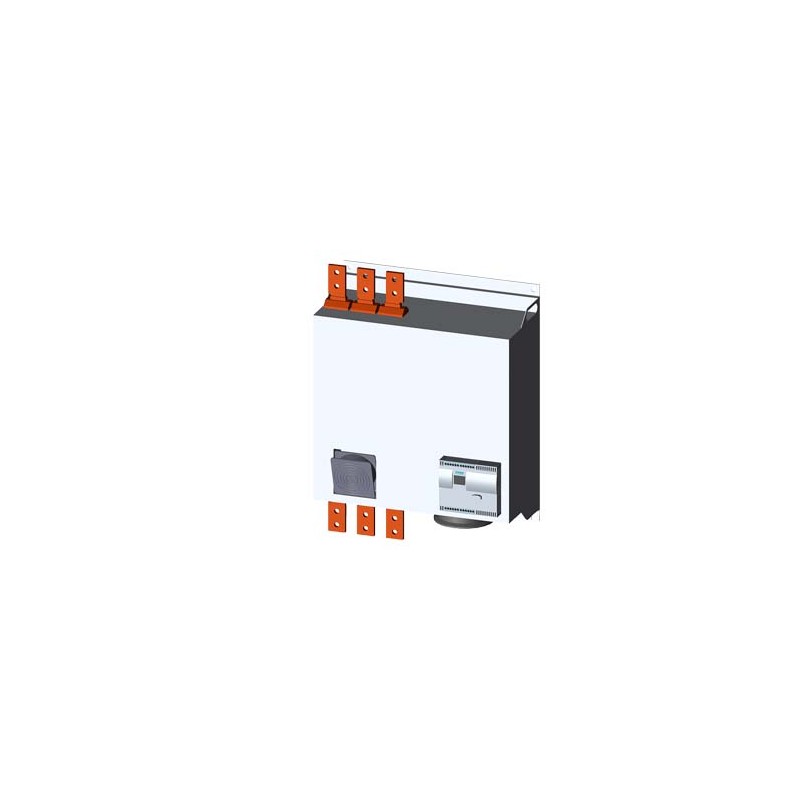

SIRIUS soft starter Values at 400 V, 40 °C standard: 1214 A, 710 kW Inside-delta: 2103 A, 1200 kW 200-460 V AC, 230 V AC Screw terminals !!! Phased-out product !!! Successor is SIRIUS 3RW5, Preferred successor type is >>3RW5558-6HA14<
Low-voltage industrial components > Soft starter
CONTROL AND CONTACTORS > Soft starters for high-feature applications
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | ||||||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3RW4466-6BC44 | |||||||||||||||||||||||||||||||||||||||
Product Description | SIRIUS soft starter Values at 400 V, 40 °C standard: 1214 A, 710 kW Inside-delta: 2103 A, 1200 kW 200-460 V AC, 230 V AC Screw terminals !!! Phased-out product !!! Successor is SIRIUS 3RW5, Preferred successor type is >>3RW5558-6HA14<< | |||||||||||||||||||||||||||||||||||||||
Product family | 3RW44 soft starters | |||||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||||||||
PLM Effective Date | Product phase-out since: 01.10.2019 | |||||||||||||||||||||||||||||||||||||||
Notes | Sucessor:Nachfolger ist SIRIUS 3RW5, Präferierte Nachfolgertype ist >>3RW5558-6HA14<< | |||||||||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 42H / 42H | |||||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
Metal Factor | LAO----- | |||||||||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 50 Day/Days | |||||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 98,000 Kg | |||||||||||||||||||||||||||||||||||||||
Packaging Dimension | 645,00 x 835,00 x 480,00 | |||||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
EAN | 4011209681194 | |||||||||||||||||||||||||||||||||||||||
UPC | 754554945866 | |||||||||||||||||||||||||||||||||||||||
Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
Product Group | 3728 | |||||||||||||||||||||||||||||||||||||||
Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | |||||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Internal bypass (EF009214) | - | |
With display (EF000458) | - | |
Degree of protection (NEMA) (EF011959) | - | |
Release class (EF006668) | - | |
Torque control (EF009215) | - | |
Rated operation current Ie at 40 °C Tu (EF007039) | 1214 | A |
Rated operating voltage Ue (EF002418) | ['200', '460'] | V |
Rated power three-phase motor, inline, at 230 V (EF007053) | 400.0 | kW |
Rated power three-phase motor, inline, at 400 V (EF007054) | 710.0 | kW |
Rated power three-phase motor, inside delta, at 230 V (EF007055) | 710.0 | kW |
Rated power three-phase motor, inside delta, at 400 V (EF007056) | 1200.0 | kW |
Function (EF000030) | Single direction | |
Rated surrounding temperature without derating (EF007074) | 40 | °C |
Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '230'] | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '230'] | V |
Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
Voltage type for actuating (EF008242) | AC | |
Integrated motor overload protection (EF007297) | true | |
Degree of protection (IP) (EF005474) | IP00 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes | |
3RW4466-6BC44 3RW4466-6BC44 EN_3RW4466-6BC44.pdf | 214 Kbytes |
