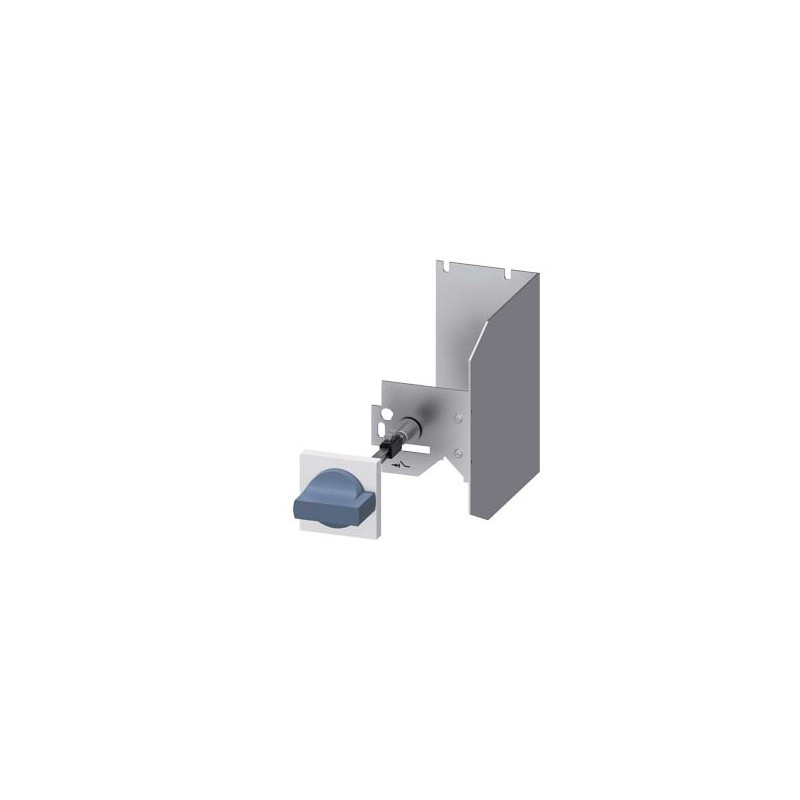

3RV2946-2B SIEMENS Door-coupling rotary operating mechanism for circuit breaker Size S3 Handle gray new desi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV2946-2B SIEMENS Door-coupling rotary operating mechanism for circuit breaker Size S3 Handle gray new desi..

3RV2946-2B

SIEMENS

door-coupling rotary operating mechanism for circuit breaker size S3 handle gray new design !!! phased-out product !!! replacement type is 3RV2946-3B

More details


Low-voltage industrial components > Door coupling handle for switchgear

CONTROL AND CONTACTORS > Motor protection switches

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

door-coupling rotary operating mechanism for circuit breaker size S3 handle gray new design !!! phased-out product !!! replacement type is 3RV2946-3B
General technical data
product brand nameSIRIUS
product designationdoor-coupling rotary operating mechanism for heavy-duty operating conditions
size of the circuit-breakerS3
design of the productstandard
suitability for usecircuit-breakers S3
ambient temperature
● during storage°C-50 ... +80
● during operation°C-20 ... +70
operating frequency maximum1/h15
color of the actuating elementgray
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
widthmm75
heightmm75
depthmm78
lengthmm300
diametermm40
required spacing for grounded parts
● forwardsmm0
● backwardsmm0
● upwardsmm0
● at the sidemm0
● downwardsmm0
Certificates/ approvals
certificate of suitabilityCE / UL / CSA

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shippingother

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

Confirmation

Household and similar appliances

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV2946-2B
Product Descriptiondoor-coupling rotary operating mechanism for circuit breaker size S3 handle gray new design !!! phased-out product !!! replacement type is 3RV2946-3B
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2021
Notes
For this product a successor is available3RV2946-3B
Successor information
Successor3RV2946-3B
Successor DescriptionDoor-coupling rotary operating mechanism for harsh conditions For circuit breaker Size S3 Handle gray
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)1,665 Kg
Packaging Dimension239,00 x 302,00 x 127,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209748293
UPC754554957944
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5335
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-04-15
eClass7.127-37-04-15
eClass827-37-04-15
eClass927-37-04-15
eClass9.127-37-04-15
ETIM5EC000230
ETIM6EC000230
ETIM7EC000230
ETIM8EC000230
IDEA45219
UNSPSC1439-12-15-21
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000230 - Door coupling handle for switchgear

Value Unit
With axis extension (EF001968) TRUE
With door interlock (EF001969) true
Lockable (EF000113) true
With handle red/yellow (EF001970) FALSE
