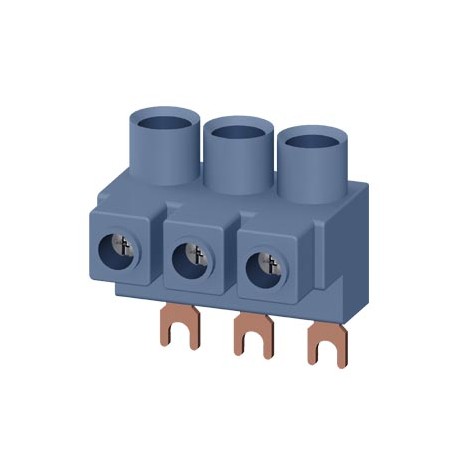

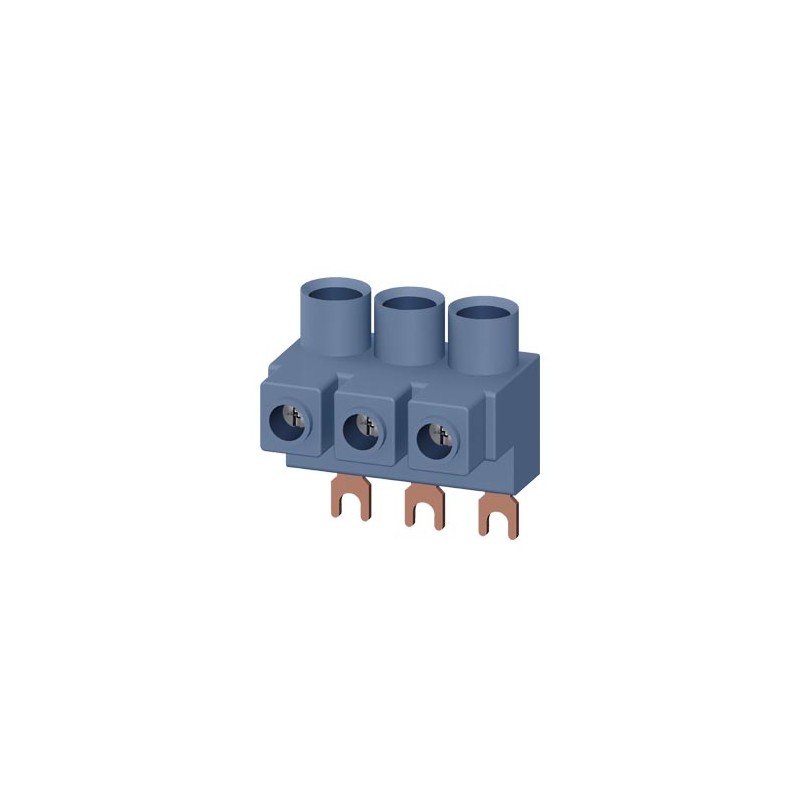

3RV2925-5EB SIEMENS 3-phase supply terminal for 3-phase busbar for self-protection combination motor control.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV2925-5EB SIEMENS 3-phase supply terminal for 3-phase busbar for self-protection combination motor control..

3RV2925-5EB

SIEMENS

3-phase supply terminal for 3-phase busbar for self-protection combination motor controller (type E) for circuit breaker 3RV Size S00/S0

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

CONTROL AND CONTACTORS > Motor protection switches

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $28.41
Unit price: $28.41
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

3-phase supply terminal for 3-phase busbar for self-protection combination motor controller (type E) for circuit breaker 3RV Size S00/S0
General technical data
product brand nameSIRIUS
product designation3-phase supply terminal
design of the productfrom above, Type E, size S0/S00
size of the circuit-breakerS00, S0
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
insulation voltage with degree of pollution 3 at AC rated valueV690
ambient temperature
● during storage°C-50 ... +80
● during operation°C-20 ... +60
ampacity maximumA63
Installation/ mounting/ dimensions
widthmm44
heightmm44.5
depthmm32
Connections/ Terminals
type of electrical connection for main current circuitscrew-type terminals
type of connectable conductor cross-sections
● for main contacts
— solid1x (2.5 ... 16 mm²)
— stranded1x (2.5 ... 25 mm²)
— finely stranded
— with core end processing1x (2.5 ... 16 mm²)
● at AWG cables for main contacts1x (10 ... 4)
Certificates/ approvals
certificate of suitabilityCE / UL / CSA / CCC

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

Marine / ShippingotherRailway

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Household and similar appliances

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV2925-5EB
Product Description3-phase supply terminal for 3-phase busbar for self-protection combination motor controller (type E) for circuit breaker 3RV Size S00/S0
Product familyBusbar accessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,054 Kg
Packaging Dimension52,00 x 78,00 x 49,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209718913
UPC662643925326
Commodity Code85369010
LKZ_FDB/ CatalogIDCC-IC10
Product Group5335
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
UNSPSC1439-12-15-21
UNSPSC1539-12-14-10

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RV2925-5EB 3RV2925-5EB EN_3RV2925-5EB.pdf 304 Kbytes 3RV2925-5EB 3RV2925-5EB EN_3RV2925-5EB.pdf
