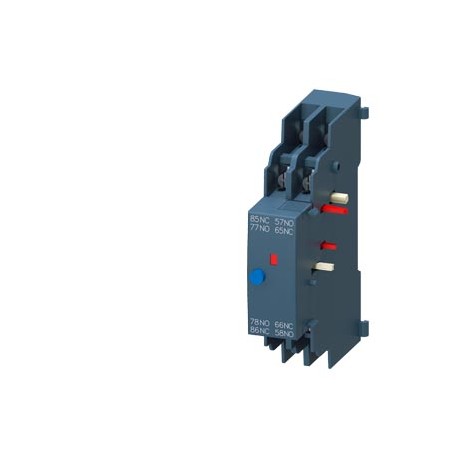

3RV2921-4M SIEMENS signaling switch for circuit breaker 3RV2 with ring cable lug connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV2921-4M SIEMENS signaling switch for circuit breaker 3RV2 with ring cable lug connection

3RV2921-4M

SIEMENS

signaling switch for circuit breaker 3RV2 with ring cable lug connection

More details


Low-voltage industrial components > Trip indicator

CONTROL AND CONTACTORS > Motor protection switches

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

signaling switch for circuit breaker 3RV2 with ring cable lug connection
General technical data
product brand nameSIRIUS
product designationsignaling switch
design of the productseparate tripped signal and short circuit alarm, 1 NO + 1 NC each
size of the circuit-breakerS00, S0, S2, S3
protection class IP on the front according to IEC 60529IP00
ambient temperature
● during storage°C-50 ... +80
● during operation°C-20 ... +60
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact1
number of NO contacts for auxiliary contacts instantaneous contact1
number of CO contacts of auxiliary contacts instantaneous contact0
operational current
● of auxiliary contacts
— at AC-12
— at 24 VA10
— at 230 VA10
— at 400 VA10
— at 690 VA10
— maximumA10
— at AC-15
— at 24 VA6
— at 230 VA4
— at 400 VA3
— at DC-13
— at 24 VA2
— at 110 VA0.5
— at 220 VA0.25
— at 250 VA0.25
● at AC-15 at 690 V rated valueA1
Installation/ mounting/ dimensions
fastening methodplug-in fixing
widthmm18
heightmm90
depthmm68
Connections/ Terminals
type of electrical connection for auxiliary and control circuitring terminal lug connection
Certificates/ approvals
certificate of suitabilityCE / UL / CSA / CCC

Downloads and manuals

General Product Approval

CSA

Confirmation

CCC

UL

KC

EAC

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

BV / Bureau Veritas

Marine / Shippingother

DNV / Det Norske Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

otherRailway

Household and similar appliances

Confirmation

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV2921-4M
Product Descriptionsignaling switch for circuit breaker 3RV2 with ring cable lug connection
Product familyMountable accessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,101 Kg
Packaging Dimension85,00 x 100,00 x 37,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209737150
UPC662643925234
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5335
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-20
eClass7.127-37-04-20
eClass827-37-04-20
eClass927-37-04-20
eClass9.127-37-04-20
ETIM5EC001025
ETIM6EC001025
ETIM7EC001025
ETIM8EC001025
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC001025 - Trip indicator

Value Unit
Function (EF000030) Other
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Other
