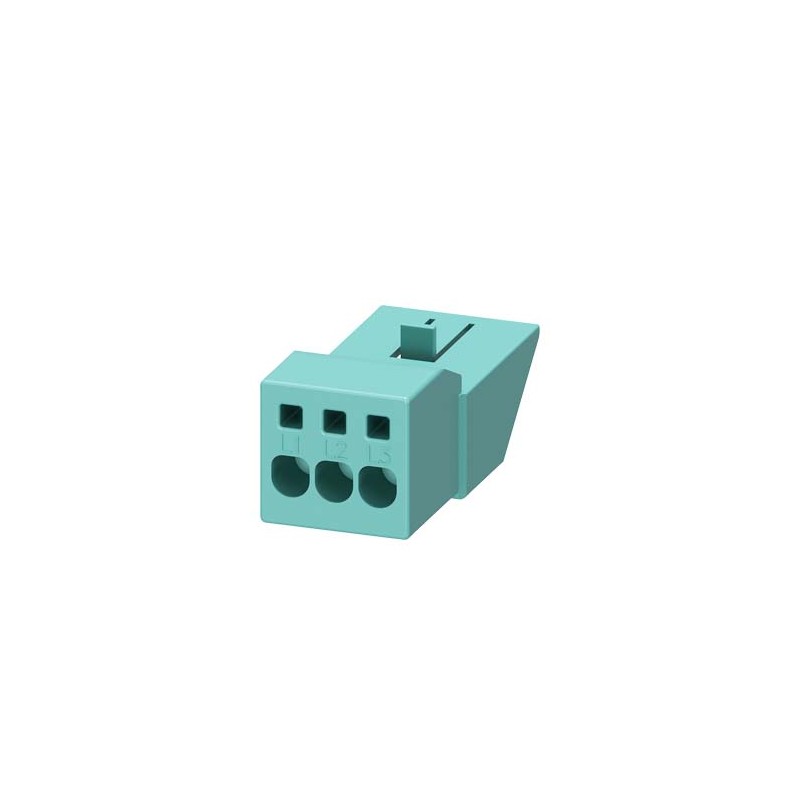

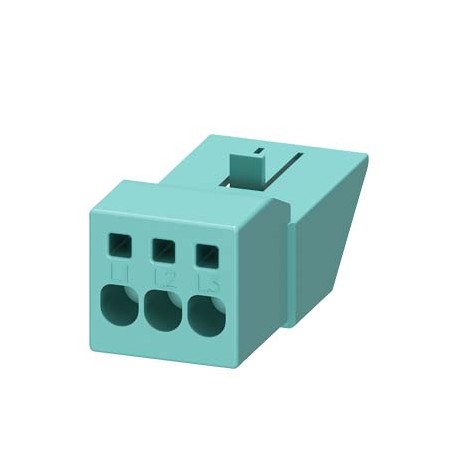

3RV2917-5FA00 SIEMENS Terminal block Device infeed View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV2917-5FA00 SIEMENS Terminal block Device infeed

3RV2917-5FA00

SIEMENS

Terminal block Device infeed

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

CONTROL AND CONTACTORS > Motor protection switches

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $14.75
Unit price: $14.75
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Terminal block Device infeed
General technical data
product brand nameSIRIUS
product designationTerminal block
design of the productfor power outlet
size of the circuit-breakerS00, S0
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
insulation voltage with degree of pollution 3 at AC rated valueV500
ambient temperature
● during storage°C-50 ... +80
● during operation°C-20 ... +60
ampacity maximumA32
Installation/ mounting/ dimensions
widthmm26
heightmm25
depthmm60
Connections/ Terminals
type of electrical connection for main current circuitspring-loaded terminals
type of connectable conductor cross-sections
● for main contacts
— solid1x (1 ... 10 mm²)
— stranded1x (1 ... 10 mm²)
— finely stranded
— with core end processing1x (1 ... 6 mm²)
● at AWG cables for main contacts1x (18 ... 8)
Certificates/ approvals
certificate of suitabilityCE / UL / CSA / CCC

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shippingother

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

Confirmation

Environmental Confirmations

Household and similar appliances

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/15/2020
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV2917-5FA00
Product DescriptionTerminal block Device infeed
Product family3RV29 infeed system
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works110 Day/Days
Net Weight (kg)0,038 Kg
Packaging Dimension52,00 x 59,00 x 45,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621010694
UPC804766190209
Commodity Code85366990
LKZ_FDB/ CatalogIDCC-IC10
Product Group5335
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.03.2017
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
UNSPSC1539-12-22-21

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RV2917-5FA00 3RV2917-5FA00 EN_3RV2917-5FA00.pdf 243 Kbytes 3RV2917-5FA00 3RV2917-5FA00 EN_3RV2917-5FA00.pdf
