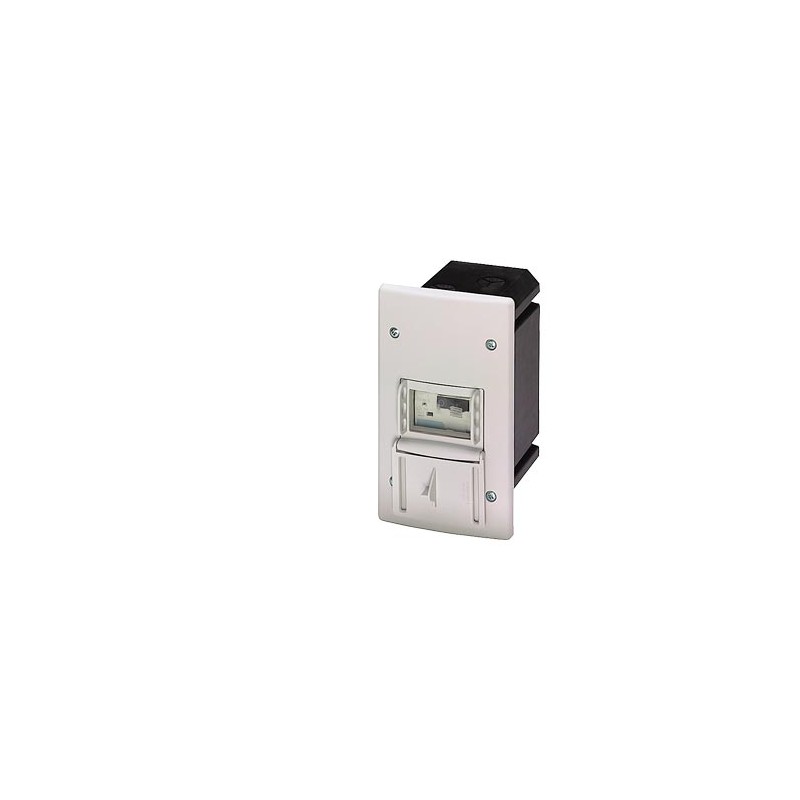

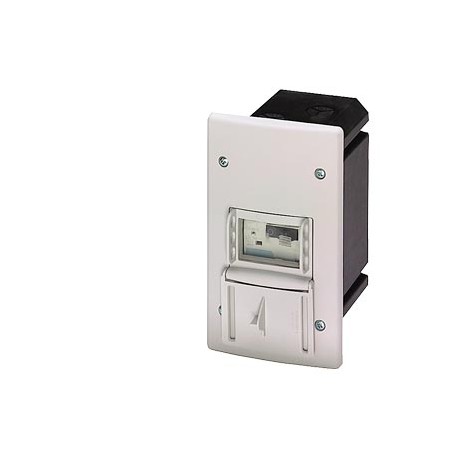

3RV1913-2DA00 SIEMENS Molded-plastic installation enclosure with actuator diaphragm Metric cable gland No UL.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV1913-2DA00 SIEMENS Molded-plastic installation enclosure with actuator diaphragm Metric cable gland No UL..

3RV1913-2DA00

SIEMENS

Molded-plastic installation enclosure with actuator diaphragm Metric cable gland No UL/CSA approval

More details


Low-voltage industrial components > Empty enclosure for switchgear

CONTROL AND CONTACTORS > Motor protection switches

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $33.78
Unit price: $33.78
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Molded-plastic installation enclosure with actuator diaphragm Metric cable gland No UL/CSA approval
General technical data
product designationISO installation housing
design of the productInstallation
material of the enclosureplastic
protection class IP of the enclosureIP55
product component transparent coverNo
Installation/ mounting/ dimensions
widthmm105
heightmm175
depthmm108
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

Confirmation

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

Marine / Shippingother

ABS (American Bureau of Shipping)

BV / Bureau Veritas

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

Miscellaneous

Confirmation

otherRailway

Household and similar appliances

Special Test Certificate

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/9/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV1913-2DA00
Product DescriptionMolded-plastic installation enclosure with actuator diaphragm Metric cable gland No UL/CSA approval
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,397 Kg
Packaging Dimension135,00 x 175,00 x 115,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209518148
UPC754554764481
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group3719
Group CodeR711
Country of originItaly
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-13-01
eClass7.127-37-13-01
eClass827-37-13-01
eClass927-37-13-01
eClass9.127-37-13-01
ETIM5EC000712
ETIM6EC000712
ETIM7EC000712
ETIM8EC000712
IDEA44478
UNSPSC1439-12-15-21
UNSPSC1539-12-13-26

ETIM data

ETIM: EC000712 - Empty enclosure for switchgear

Value Unit
Degree of protection (NEMA) (EF011959) -
Material housing (EF001596) Plastic
Width (EF000008) 105.0mm
Height (EF000040) 175.0mm
Depth (EF000049) 108.0mm
With transparent cover (EF001094) false
Suitable for emergency stop (EF001433) false
Model (EF000010) Built-in
Degree of protection (IP) (EF005474) IP55



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RV1913-2DA00 3RV1913-2DA00 EN_3RV1913-2DA00.pdf 252 Kbytes 3RV1913-2DA00 3RV1913-2DA00 EN_3RV1913-2DA00.pdf
