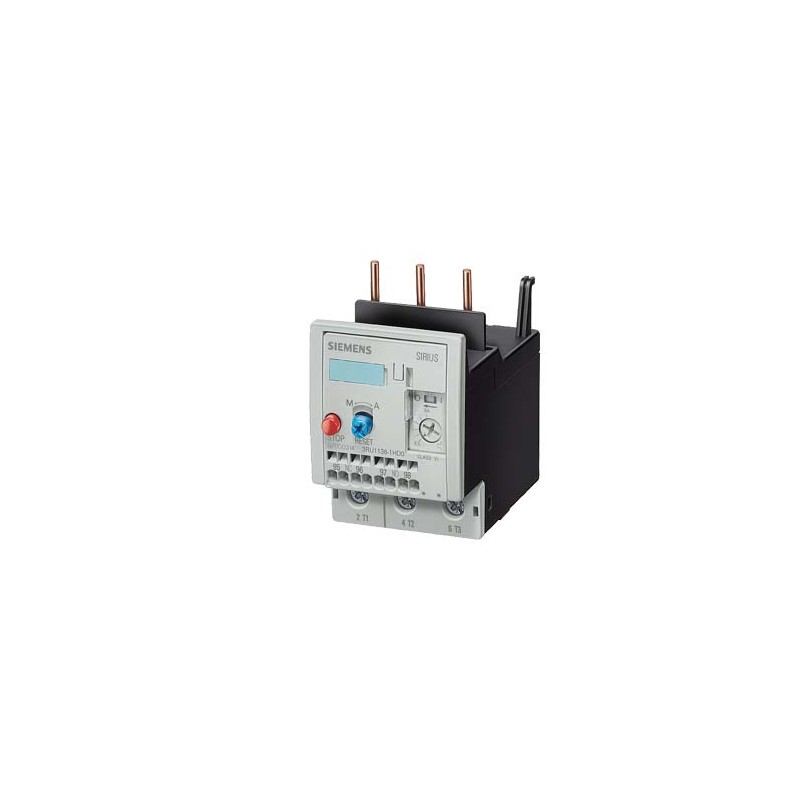

3RU1136-4HD0 SIEMENS Overload relay 40...50 A For motor protection Size S2, Class 10 Contactor mounting Main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RU1136-4HD0 SIEMENS Overload relay 40...50 A For motor protection Size S2, Class 10 Contactor mounting Main..

3RU1136-4HD0

SIEMENS

Overload relay 40...50 A For motor protection Size S2, Class 10 Contactor mounting Main circuit: Screw terminal Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset !!! Phased-out product !!! Successor is SIRIUS 3RU2 Preferred successor type is >>3RU2136-4HD0<

More details


Low-voltage industrial components > Thermal overload relay

CONTROL AND CONTACTORS > Thermal relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000106 - Thermal overload relay

Value Unit
Reset function input (EF011940) -
Reset function automatic (EF011941) -
Mounting method (EF000003) -
Reset function push-button (EF011942) -
Adjustable current range (EF008211) ['40', '50']A
Max. rated operation voltage Ue (EF007357) 690V
Type of electrical connection of main circuit (EF006819) Screw connection
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 0
Release class (EF006668) CLASS 10


Overload relay 40...50 A For motor protection Size S2, Class 10 Contactor mounting Main circuit: Screw terminal Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset !!! Phased-out product !!! Successor is SIRIUS 3RU2 Preferred successor type is >>3RU2136-4HD0<<
product brand nameSIRIUS
product designationthermal overload relay
General technical data
Size of overload relayS2
size of contactor can be combined company-specificS2
● power loss [W] for rated value of the current at AC in hot operating state15.6 W
● power loss [W] for rated value of the current at AC in hot operating state per pole5.2 W
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
protection class IP
● on the frontIP20
● shock resistance8g / 10 ms
Type of protectionDMT 98 ATEX G 001
reference code acc. to DIN EN 81346-2F
Ambient conditions
● installation altitude at height above sea level maximum2 000 m
● ambient temperature during operation-20 ... +70 °C
● ambient temperature during storage-55 ... +80 °C
● ambient temperature during transport-55 ... +80 °C
relative humidity during operation100 %
Main circuit
number of poles for main current circuit3
adjustable pick-up value current of the current-dependent overload release40 ... 50 A
● operating voltage at AC-3 rated value maximum690 V
Auxiliary circuit
● number of NC contacts for auxiliary contacts1
● number of NO contacts for auxiliary contacts1
● number of CO contacts for auxiliary contacts0
operating current of auxiliary contacts at AC-15
● at 24 V3 A
● at 110 V3 A
● at 120 V3 A
● at 125 V3 A
● at 230 V2 A
● at 400 V1 A
operating current of auxiliary contacts at DC-13
● at 24 V1 A
● at 110 V0.22 A
● at 125 V0.22 A
● at 220 V0.11 A
Protective and monitoring functions
trip classCLASS 10
Short-circuit protection
● design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 6 A, quick: 10 A
Installation/ mounting/ dimensions
● mounting positionwith vertical mounting surface +/-135° rotatable, with vertical mounting surface +/- 45° tiltable to the front and back
● mounting typeContactor mounting
height105 mm
width55 mm
depth118 mm
required spacing
● with side-by-side mounting
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
● for grounded parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side6 mm
— downwards0 mm
● for live parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side6 mm
Connections/ Terminals
● product function removable terminal for auxiliary and control circuitNo
type of electrical connection
● for main current circuitscrew-type terminals
● for auxiliary and control current circuitCage Clamp terminals
● type of connectable conductor cross-sections for main contacts solid2x (0.75 ... 16 mm²)
● Type of connectable conductor cross-sections for main contacts stranded2x (0.75 ... 25 mm²), 0.75 ... 35 mm²
● type of connectable conductor cross-sections for main contacts finely stranded with core end processing2x (0.75 ... 16 mm²), 0.75 ... 25 mm²
● type of connectable conductor cross-sections at AWG conductors for main contacts2x (18 ... 3), 1x (18 ... 1)
● type of connectable conductor cross-sections for auxiliary contacts solid2x (0.5 ... 2.5 mm²)
● type of connectable conductor cross-sections for auxiliary contacts finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● type of connectable conductor cross-sections for auxiliary contacts finely stranded without core end processing2x (0.5 ... 1.5 mm²)
● type of connectable conductor cross-sections at AWG conductors for auxiliary contacts2x (20 ... 14)
Certificates/ approvals
General Product ApprovalFor use in hazardous locations

CCC

CSA

UL

EAC

ATEX-EC-Type-Examination-Certificate

IECEx

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Miscellaneous

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

BV / Bureau Veritas

Marine / Shippingother

LR (Lloyds Register)

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

DNV-GL

Miscellaneous

Confirmation

Railway

Special Test Certificate

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:08/27/2020


Product
Article Number (Market Facing Number)3RU1136-4HD0
Product DescriptionOverload relay 40...50 A For motor protection Size S2, Class 10 Contactor mounting Main circuit: Screw terminal Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset !!! Phased-out product !!! Successor is SIRIUS 3RU2 Preferred successor type is >>3RU2136-4HD0<<
Product familyNot available
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 01.10.2019
Notes
Sucessor:Successor SIRIUS Innovations 3RU2
Price data
Price Group41F
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,320 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension61,00 x 96,00 x 111,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209303867
UPC754554412191
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group3707
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
Not available
