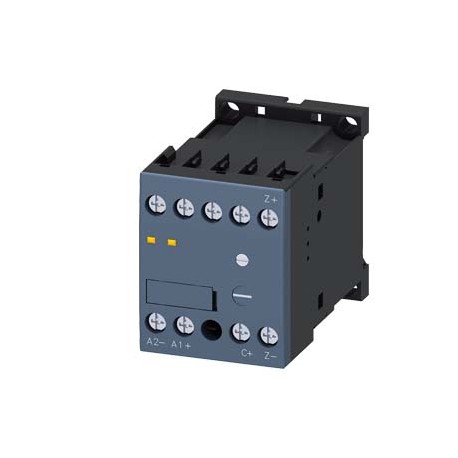

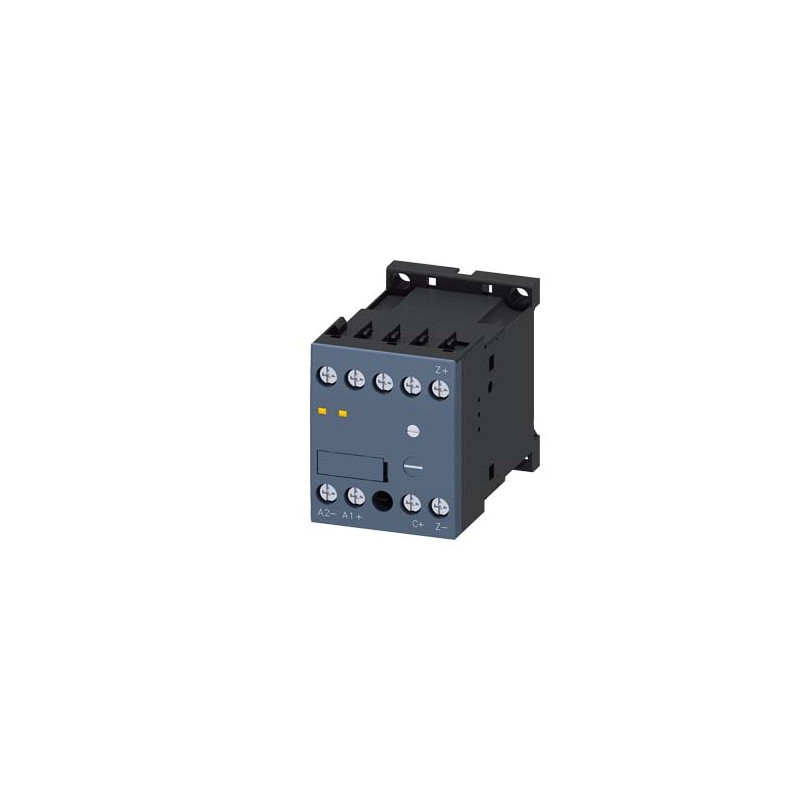

3RT2916-2BL01 SIEMENS OFF delay device, 220 / 230 V UC, for contactor relays and motor contactors 3RT2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RT2916-2BL01 SIEMENS OFF delay device, 220 / 230 V UC, for contactor relays and motor contactors 3RT2

3RT2916-2BL01

SIEMENS

OFF-delay device, 220 / 230 V AC/DC, for contactor relays and motor contactors 3RT2

More details


Low-voltage industrial components > Amplifier module for contactor

CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $140.74
Unit price: $140.74

Quantity Price
1+$140.74
2+$126.62
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

OFF-delay device, 220 / 230 V AC/DC, for contactor relays and motor contactors 3RT2
General technical data
product brand nameSIRIUS
product designationopening delay device for contactor
size of contactorS00, S0
design of the productOFF delay device
ambient temperature
● during storage°C-40 ... +80
● during operation°C-20 ... +60
touch protection against electrical shockfinger-safe
product component protective wiringNo
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
control supply voltage frequency
● 1
— rated valueHz50
● 2 rated valueHz60
control supply voltage 1
● at DCV200 ... 240
● at AC
— at 50 HzV200 ... 240
— at 60 HzV240 ... 200
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shippingother

UK Declaration of Conformity

Type Test Certificates/Test Report

BV / Bureau Veritas

DNV / Det Norske Veritas

RMRS / Russian Maritime Register

Confirmation

other

Environmental Confirmations

Household and similar appliances

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RT2916-2BL01
Product DescriptionOFF-delay device, 220 / 230 V AC/DC, for contactor relays and motor contactors 3RT2
Product familyOther
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorLB------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,134 Kg
Packaging Dimension55,00 x 78,00 x 65,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209739888
UPC662643918656
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5344
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-10-11
eClass7.127-37-10-11
eClass827-37-10-11
eClass927-37-10-11
eClass9.127-37-10-11
ETIM5EC000198
ETIM6EC000198
ETIM7EC000198
ETIM8EC000198
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC000198 - Amplifier module for contactor

Value Unit
Type of set-up (EF008221) Direct attachment
With integrated suppressor (EF001384) false
Rated operation current Ie at DC-13, 230 V (EF001386) -A
Rated operation current Ie at AC-15, 230 V (EF001385) -A
Rated control supply voltage Us at AC 50HZ (EF003978) ['200', '240']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['200', '240']V
Rated control supply voltage Us at DC (EF003980) ['200', '240']V
Voltage type for actuating (EF008242) AC/DC
