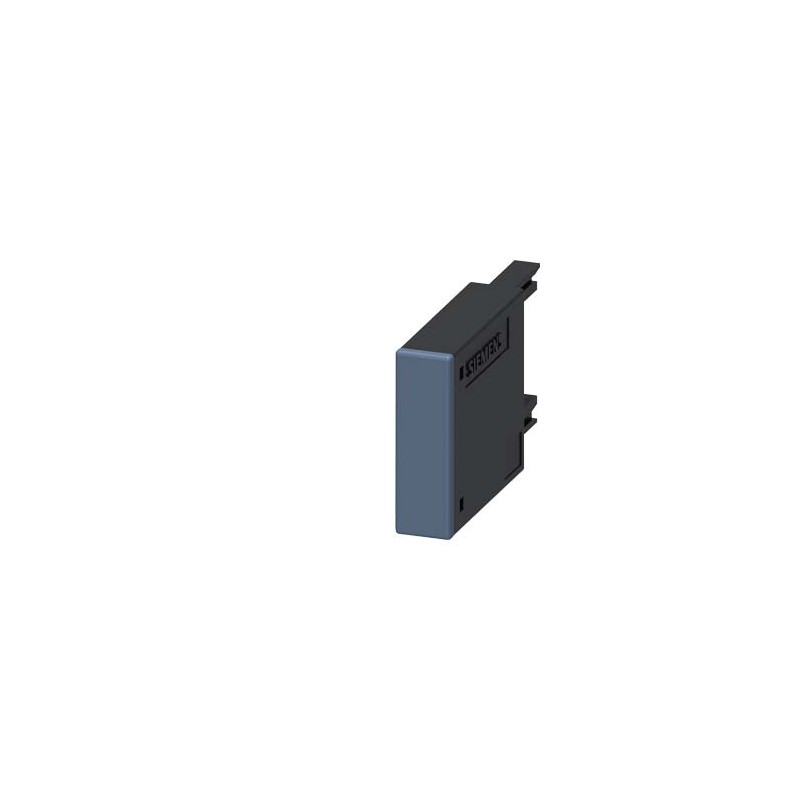

3RT2916-1CD00 SIEMENS Surge suppressor, RC element, 127 ... 240 V AC 150 ... 250 V DC for contactor relays a.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RT2916-1CD00 SIEMENS Surge suppressor, RC element, 127 ... 240 V AC 150 ... 250 V DC for contactor relays a..

3RT2916-1CD00

SIEMENS

Surge suppressor, RC element, 127 ... 240 V AC 150 ... 250 V DC for contactor relays and motor contactors Size S00

More details


CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $11.36
Unit price: $11.36

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

Surge suppressor, RC element, 127 ... 240 V AC 150 ... 250 V DC for contactor relays and motor contactors Size S00
General technical data
product brand nameSIRIUS
product designationsurge suppressor
size of contactorS00
design of the surge suppressorwith RC elements
ambient temperature
● during storage°C-40 ... +80
● during operation°C-25 ... +60
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
control supply voltage frequency
● 1 rated valueHz50
● 2 rated valueHz60
control supply voltage 1
● at DCV150 ... 250
● at AC
— at 50 HzV127 ... 240
— at 60 HzV240 ... 127
Installation/ mounting/ dimensions
mounting positionany
fastening methodclip-on
widthmm28
heightmm46
depthmm9
Certificates/ approvals
certificate of suitabilityCE / UL / CSA

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UR

EAC

RCM

EC/EU-Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

BV / Bureau Veritas

DNV / Det Norske Veritas

PRS / Polski Rejestr Statkow

Marine / ShippingotherRailway

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Environmental Confirmations

Confirmation

Household and similar appliances

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:4/21/2021
Date
5/2/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RT2916-1CD00
Product DescriptionSurge suppressor, RC element, 127 ... 240 V AC 150 ... 250 V DC for contactor relays and motor contactors Size S00
Product familySurge suppressors
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,007 Kg
Packaging Dimension31,00 x 56,00 x 10,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209740044
UPC662643918441
Commodity Code85363010
LKZ_FDB/ CatalogIDCC-IC10
Product Group5344
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-10-13
eClass7.127-37-10-13
eClass827-37-10-13
eClass927-37-10-13
eClass9.127-37-10-13
ETIM5EC000197
ETIM6EC000197
ETIM7EC000197
ETIM8EC000683
IDEA44906
UNSPSC1439-12-15-21
UNSPSC1539-12-16-10

ETIM data

ETIM: EC000197 - Surge voltage protection

Value Unit
Model (EF000010) RC-suppressor
Rated voltage Ue at AC 50 Hz (EF007029) ['127', '240']V
Rated voltage Ue at AC 60 Hz (EF007030) ['127', '240']V
Rated voltage Ue at DC (EF007031) ['150', '250']V
Voltage type (operating voltage) (EF005294) AC/DC
