View larger

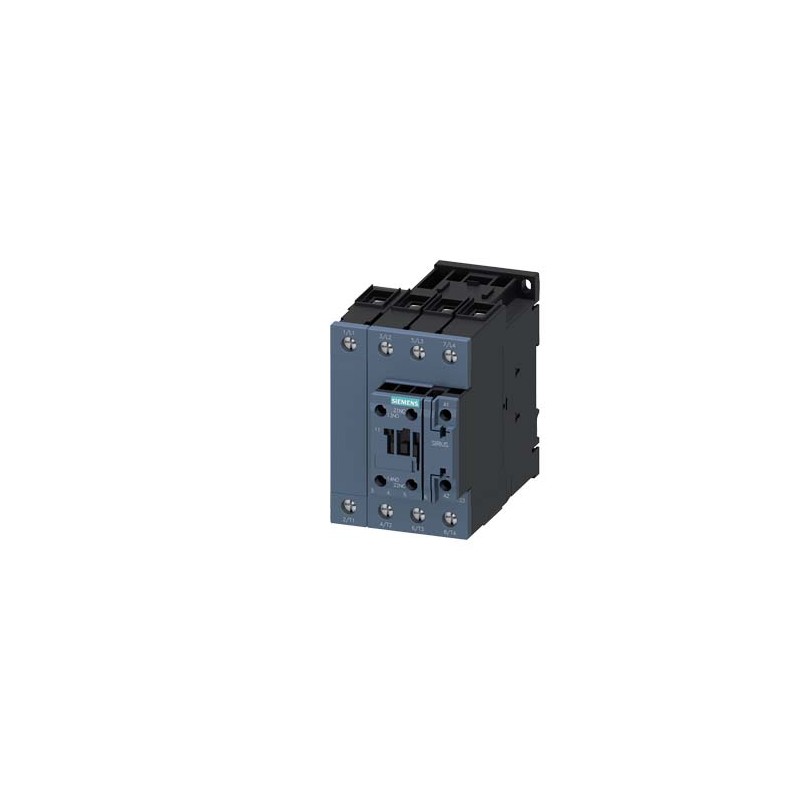

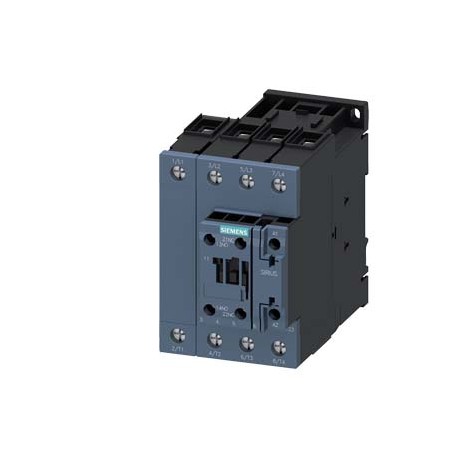

3RT2337-1DA40 SIEMENS Contactor, 4 NO, AC-1: 110 A 12 V DC, varistor, 4-pole, 4 NO, Size S2, Screw terminal ..
3RT2337-1DA40
SIEMENS
Contactor, 4 NO, AC-1: 110 A 12 V DC, varistor, 4-pole, 4 NO, Size S2, Screw terminal 1 NO + 1 NC integrated
CONTROL AND CONTACTORS > Contactors for switching motors
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲ETIM: EC000066 - Power contactor, AC switching
| Value | Unit | |
|---|---|---|
| Rated operation power NEMA (EF011960) | - | kW |
| Rated control supply voltage Us at DC (EF003980) | ['-', '12'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 110 | A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 38 | A |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - | A |
| Modular version (EF001126) | true | |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 | |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Number of normally closed contacts as main contact (EF001375) | - | |
| Number of main contacts as normally open contact (EF001374) | 4 | |
| Rated operation power at AC-4, 400 V (EF008496) | - | kW |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3RT2337-1DA40 SIEMENS 4NO CONTACTOR,AC1:110A 12V DC,VARISTOR, 4-POLE, 4NO, SIZE S2, SCREW TERMINAL 1NO+1N | 91 Kbytes |
|
