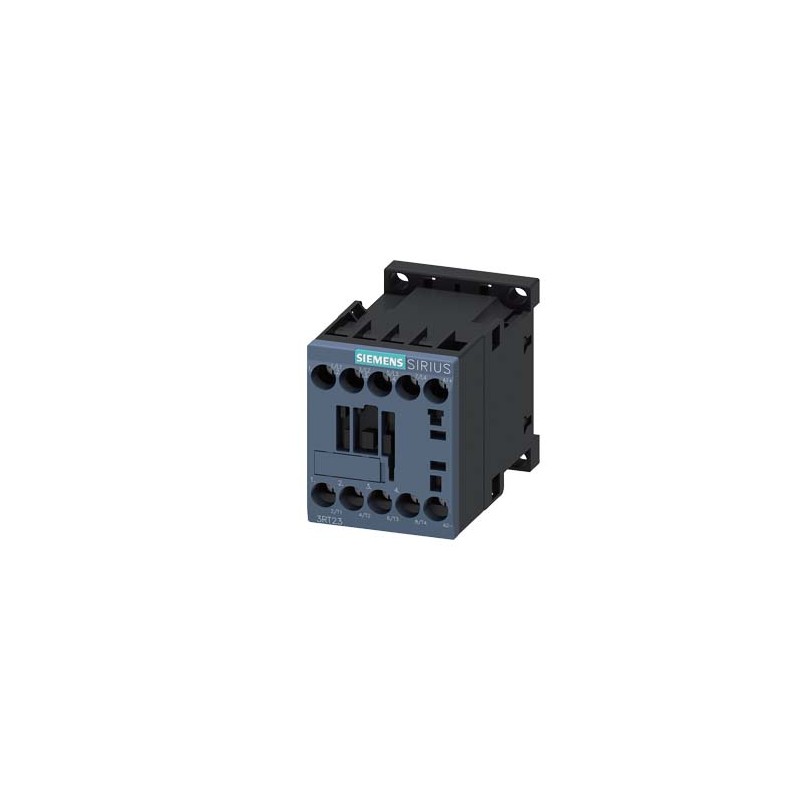

3RT2317-1BB40 SIEMENS Contactor, 4 NO, AC-1: 22 A 24 V DC, 4-pole, 4 NO, Size S00, Screw terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RT2317-1BB40 SIEMENS Contactor, 4 NO, AC-1: 22 A 24 V DC, 4-pole, 4 NO, Size S00, Screw terminal

3RT2317-1BB40

SIEMENS

Contactor, AC-1, 22 A/400 V/40 °C, S00, 4-pole, 24 V DC, screw terminal

More details


Low-voltage industrial components > Power contactor, AC switching

CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $69.57
Unit price: $69.57

Quantity Price
1+$69.57
2+$61.46
3+$56.62
4+$53.87
5+$53.34
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

More info

▲


Technical data

Contactor, AC-1, 22 A/400 V/40 °C, S00, 4-pole, 24 V DC, screw terminal
product brand nameSIRIUS
product designationContactor
product type designation3RT23
General technical data
size of contactorS00
product extension
● function module for communicationNo
● auxiliary switchYes
power loss [W] for rated value of the current
● at AC in hot operating state6.4 W
● at AC in hot operating state per pole1.6 W
● without load current share typical4 W
insulation voltage
● of main circuit with degree of pollution 3 rated value690 V
● of the auxiliary and control circuit with degree of pollution 3 rated value690 V
surge voltage resistance
● of main circuit rated value6 kV
● of auxiliary circuit rated value6 kV
shock resistance at rectangular impulse
● at DC7.3g / 5 ms, 4.7g / 10 ms
shock resistance with sine pulse
● at DC11,4g / 5 ms, 7,3g / 10 ms
mechanical service life (switching cycles)
● of contactor typical30 000 000
● of the contactor with added auxiliary switch block typical10 000 000
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)10/01/2009
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation-25 ... +60 °C
● during storage-55 ... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit4
number of NO contacts for main contacts4
operational current
● at AC-1 at 400 V at ambient temperature 40 °C rated value22 A
● at AC-1
— up to 690 V at ambient temperature 40 °C rated value22 A
— up to 690 V at ambient temperature 60 °C rated value20 A
● at AC-3
— at 400 V rated value12 A
● at AC-4 at 400 V rated value8.5 A
minimum cross-section in main circuit at maximum AC-1 rated value4 mm²
operating power
● at AC-3 at 400 V rated value5.5 kW
● at AC-4 at 400 V rated value4 kW
short-time withstand current in cold operating state up to 40 °C
● limited to 1 s switching at zero current maximumUse minimum cross-section acc. to AC-1 rated value
● limited to 5 s switching at zero current maximumUse minimum cross-section acc. to AC-1 rated value
● limited to 10 s switching at zero current maximumUse minimum cross-section acc. to AC-1 rated value
● limited to 30 s switching at zero current maximumUse minimum cross-section acc. to AC-1 rated value
● limited to 60 s switching at zero current maximumUse minimum cross-section acc. to AC-1 rated value
no-load switching frequency
● at DC10 000 1/h
operating frequency at AC-1 maximum1 000 1/h
Control circuit/ Control
type of voltageDC
type of voltage of the control supply voltageDC
control supply voltage at DC
● rated value24 V
operating range factor control supply voltage rated value of magnet coil at DC
● initial value0.8
● full-scale value1.1
closing power of magnet coil at DC4 W
holding power of magnet coil at DC4 W
closing delay
● at DC30 ... 100 ms
opening delay
● at DC7 ... 13 ms
arcing time10 ... 15 ms
control version of the switch operating mechanismStandard A1 - A2
Auxiliary circuit
number of NC contacts for auxiliary contacts
● attachable2
number of NO contacts for auxiliary contacts
● attachable2
Short-circuit protection
product function short circuit protectionNo
design of the fuse link
● for short-circuit protection of the main circuit
— with type of coordination 1 requiredgG: 35 A (690 V, 100 kA)
— with type of assignment 2 requiredgG: 20 A (690 V, 100 kA)
● for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)
Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
● side-by-side mountingYes
height58 mm
width45 mm
depth73 mm
required spacing
● with side-by-side mounting
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
● for grounded parts
— forwards10 mm
— upwards10 mm
— at the side6 mm
— downwards10 mm
● for live parts
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side6 mm
Connections/ Terminals
type of electrical connection
● for main current circuitscrew-type terminals
● for auxiliary and control circuitscrew-type terminals
● at contactor for auxiliary contactsScrew-type terminals
● of magnet coilScrew-type terminals
type of connectable conductor cross-sections
● for main contacts
— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
● at AWG cables for main contacts2x (20 ... 16), 2x (18 ... 14), 2x 12
connectable conductor cross-section for main contacts
● solid0.5 ... 4 mm²
● solid or stranded0.5 ... 4 mm²
● stranded0.5 ... 4 mm²
● finely stranded with core end processing0.5 ... 2.5 mm²
connectable conductor cross-section for auxiliary contacts
● solid or stranded0.5 ... 4 mm²
● finely stranded with core end processing0.5 ... 2.5 mm²
type of connectable conductor cross-sections
● for auxiliary contacts
— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
● at AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 2x 12
AWG number as coded connectable conductor cross section
● for main contacts20 ... 12
● for auxiliary contacts20 ... 12
Safety related data
product function
● mirror contact according to IEC 60947-4-1Yes; with 3RH29
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Communication/ Protocol
product function bus communicationNo
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

Functional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesMarine / Shipping

Type Examination Certificate

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

Marine / Shipping

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

otherDangerous Good

Environmental Confirmations

Confirmation

Household and similar appliances

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:3/18/2022
Date
5/9/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RT2317-1BB40
Product DescriptionContactor, AC-1, 22 A/400 V/40 °C, S00, 4-pole, 24 V DC, screw terminal
Product familySIRIUS 3RT.3 contactors, 4-pole, up to 525 A
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorLDP-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,294 Kg
Packaging Dimension50,00 x 61,50 x 77,50
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209785175
UPC662643917390
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5330
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-10-03
eClass7.127-37-10-03
eClass827-37-10-03
eClass927-37-10-03
eClass9.127-37-10-03
ETIM5EC000066
ETIM6EC000066
ETIM7EC000066
ETIM8EC000066
IDEA44755
UNSPSC1439-12-15-21
UNSPSC1539-12-15-29

ETIM data

ETIM: EC000066 - Power contactor, AC switching

Value Unit
Rated operation power NEMA (EF011960) -kW
Rated control supply voltage Us at DC (EF003980) ['-', '24']V
Voltage type for actuating (EF008242) DC
Rated operation current Ie at AC-1, 400 V (EF001393) 22A
Rated operation current Ie at AC-3, 400 V (EF001392) 12A
Rated operation power at AC-3, 400 V (EF001364) 5.5kW
Rated operation current Ie at AC-4, 400 V (EF008495) 8.5A
Rated operation power at AC-4, 400 V (EF008496) 4.0kW
Modular version (EF001126) true
Number of auxiliary contacts as normally open contact (EF001376) -
Number of auxiliary contacts as normally closed contact (EF001377) -
Type of electrical connection of main circuit (EF006819) Screw connection
Number of normally closed contacts as main contact (EF001375) -
Number of main contacts as normally open contact (EF001374) 4
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
