View larger

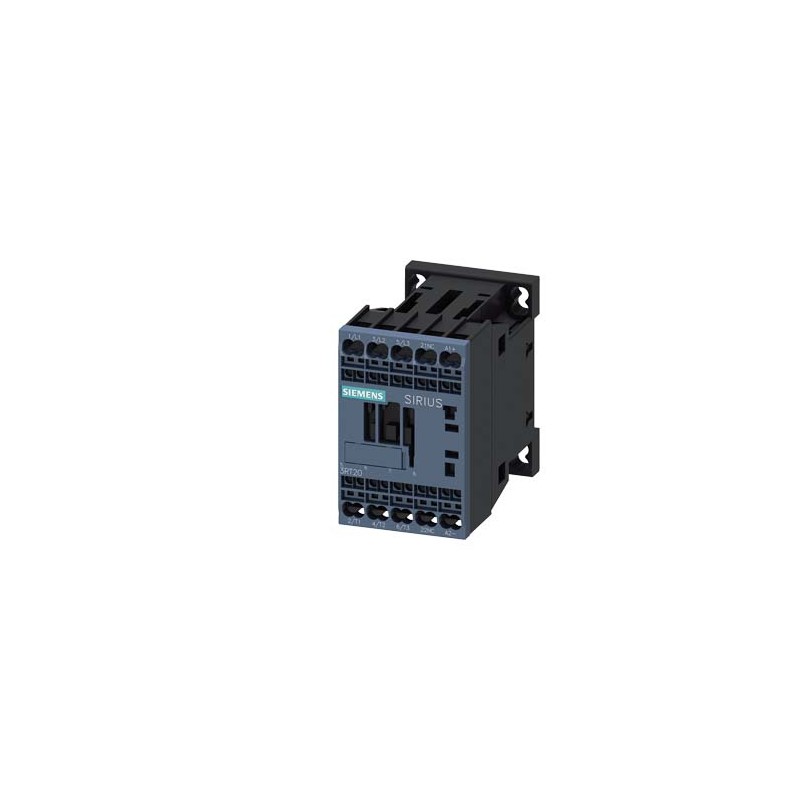

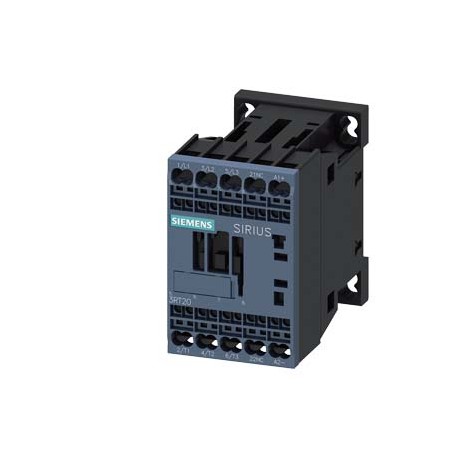

3RT2017-2BW42 SIEMENS power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 48 V DC 3-pole, Size S00 Spring-type ..
3RT2017-2BW42
SIEMENS
power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 48 V DC 3-pole, Size S00 Spring-type terminal
Low-voltage industrial components > Power contactor, AC switching
CONTROL AND CONTACTORS > Contactors for switching motors
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Related products
▲Best sellers
▲More info
▲Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RT2017-2BW42 | |||||||||||||||||||||||||||||||||||||||
| Product Description | power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 48 V DC 3-pole, Size S00 Spring-type terminal | |||||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RT contactors, 3-pole, up to 250 kW | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LDP----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,308 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 50,00 x 73,50 x 77,50 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209827769 | |||||||||||||||||||||||||||||||||||||||
| UPC | 662643911695 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5330 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000066 - Power contactor, AC switching
| Value | Unit | |
|---|---|---|
| Rated operation power at AC-4, 400 V (EF008496) | - | kW |
| Rated control supply voltage Us at DC (EF003980) | ['-', '48'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 22 | A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 12 | A |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 | kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 8.5 | A |
| Rated operation power NEMA (EF011960) | 5.516240625 | kW |
| Modular version (EF001126) | true | |
| Number of auxiliary contacts as normally open contact (EF001376) | - | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 | |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection | |
| Number of normally closed contacts as main contact (EF001375) | - | |
| Number of main contacts as normally open contact (EF001374) | 3 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| 3RT2017-2BW42 3RT2017-2BW42 EN_3RT2017-2BW42.pdf | 298 Kbytes |
|
