3RT1975-5AD32
SIEMENS
1

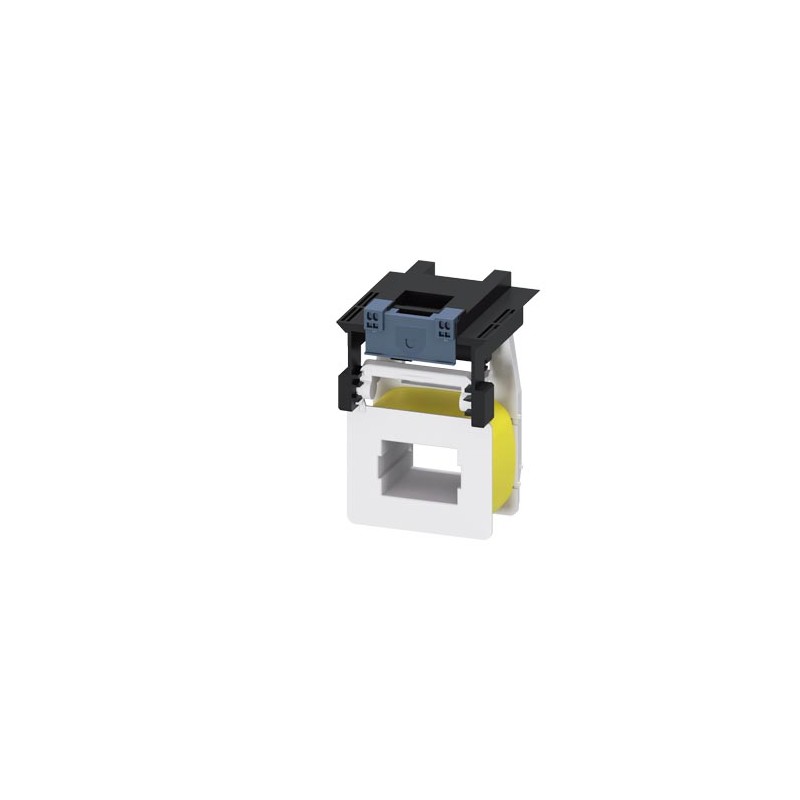

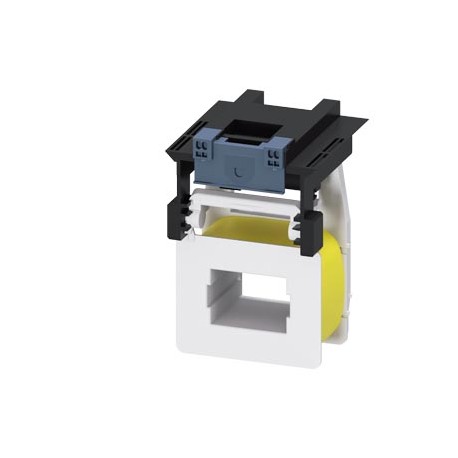

Changeover operating mechanism for contactors 3RT107, 3RT127, 3RT147, AC (50...60 Hz) / DC operation, 42 ... 48 V Operating mechanism: Standard,economy circuit Spring-type terminal
REMOVABLE COIL FOR size S12 P/SIRIUS Contactor 3RT107/3RT127/3RT147 ACCTO. AC/DC 42-48V UC DRIVE: CONVENTIONAL Spring connection. Manufactured to order. Non-Cancelable Non-Returnable.
Low-voltage industrial components > Coil for relay
CONTROL AND CONTACTORS > Contactors for switching motors
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3RT1975-5AD32 | ||||||||||||||||||||||||||||||||||||
Product Description | Changeover operating mechanism for contactors 3RT107, 3RT127, 3RT147, AC (50...60 Hz) / DC operation, 42 ... 48 V Operating mechanism: Standard,economy circuit Spring-type terminal | ||||||||||||||||||||||||||||||||||||
Product family | Solenoid coils | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41B / 41B | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | L-R----- | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | On request | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 1,255 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 110,00 x 125,00 x 172,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209584303 | ||||||||||||||||||||||||||||||||||||
UPC | Not available | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85045000 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 3729 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | ||||||||||||||||||||||||||||||||||||
Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Rated control supply voltage Us at AC 50HZ (EF003978) | ['42', '48'] | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | ['42', '48'] | V |
Rated control supply voltage Us at DC (EF003980) | ['42', '48'] | V |
Voltage type for actuating (EF008242) | AC/DC |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes | |
3RT1975-5AD32 3RT1975-5AD32 EN_3RT1975-5AD32.pdf | 189 Kbytes |
