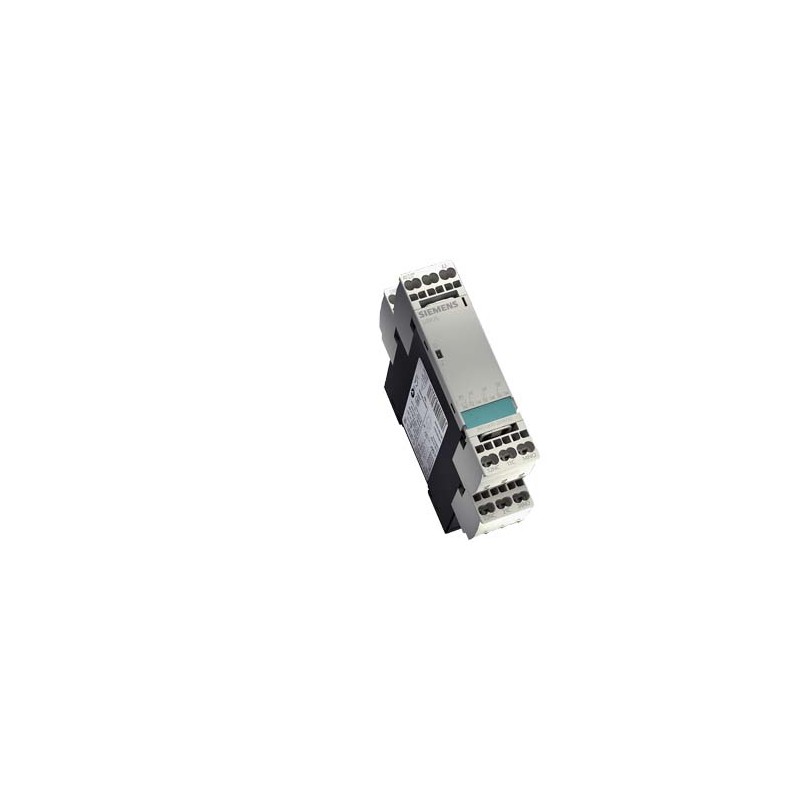

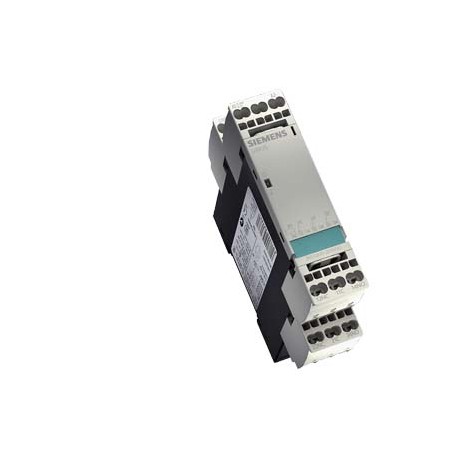

3RS1800-2BP00 SIEMENS !!! Phased-out product !!! The preferred successor is 3RQ2000-2BW00. Coupling relays i..
3RS1800-2BP00
SIEMENS
!!! Phased-out product !!! The preferred successor is 3RQ2000-2BW00. Coupling relays in industrial enclosure 2 change-over contacts Combination voltage 24 V and 220-240 V AC/DC Spring-type terminal
Relays > Switching relay
CONTROL AND CONTACTORS > Function relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲ETIM: EC001437 - Switching relay
| Value | Unit | |
|---|---|---|
| With LED indication (EF005950) | - | |
| Type of switch contact (EF003358) | - | |
| Type of electric connection (EF003961) | Spring clamp connection | |
| With detachable clamps (EF003340) | false | |
| Nominal current (EF000001) | - | A |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['220', '240'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['220', '240'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
| Voltage type for actuating (EF008242) | AC/DC | |
| Drive, polarization (EF003355) | Polarized | |
| Drive, switching attitude (EF003356) | Mono stable | |
| Number of contacts as normally closed contact (EF008255) | 0 | |
| Number of contacts as normally open contact (EF008256) | 0 | |
| Number of contacts as change-over contact (EF008257) | 2 | |
| With forced-guided contacts (EF003357) | false | |
| Complete with socket (EF003359) | false | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Width (EF000008) | 22.5 | mm |
| Height (EF000040) | 94.0 | mm |
| Depth (EF000049) | 91.0 | mm |
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RS1800-2BP00 | ||||||||||||||||||||||||||||||||||||
| Product Description | !!! Phased-out product !!! The preferred successor is 3RQ2000-2BW00. Coupling relays in industrial enclosure 2 change-over contacts Combination voltage 24 V and 220-240 V AC/DC Spring-type terminal | ||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RS18 coupling relays with industrial enclosure | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | ||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 01.10.2018 | ||||||||||||||||||||||||||||||||||||
| Notes | Sucessor:The preferred successor is 3RQ2000-2BW00. | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Price Group | |||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LA------ | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,122 Kg | ||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 29,00 x 99,00 x 107,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209584549 | ||||||||||||||||||||||||||||||||||||
| UPC | 754554879574 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 4948 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.11.2009 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3RS1800-2BP00 3RS1800-2BP00 EN_3RS1800-2BP00.pdf | 164 Kbytes |
|
