3RP2025-2AP30
SIEMENS
1

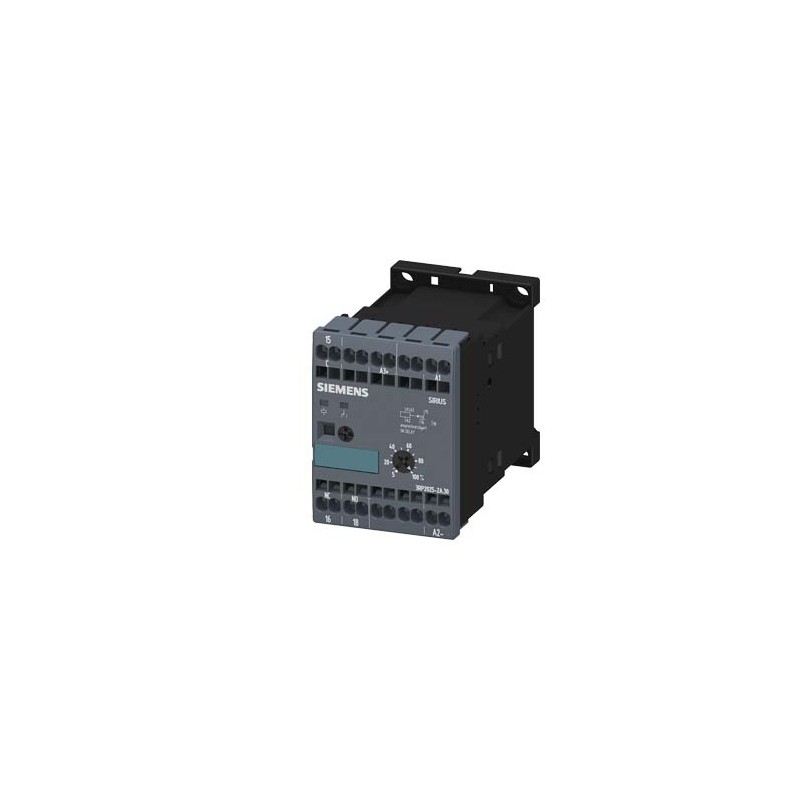

Timing relay, electronic ansprechverzögert 1 change-over contact 24 V AC/DC, 200 to 240 V AC at 50/60 Hz AC 0.05 s to 100 h Overall width 45 mm Spring-type terminal
Relays > Timer relay
CONTROL AND CONTACTORS > Function relays
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | ||||||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3RP2025-2AP30 | |||||||||||||||||||||||||||||||||||||||
Product Description | Timing relay, electronic ansprechverzögert 1 change-over contact 24 V AC/DC, 200 to 240 V AC at 50/60 Hz AC 0.05 s to 100 h Overall width 45 mm Spring-type terminal | |||||||||||||||||||||||||||||||||||||||
Product family | SIRIUS 3RP20 timing relays 45 mm | |||||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41H / 41H | |||||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
Metal Factor | LA------ | |||||||||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 2 Day/Days | |||||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,095 Kg | |||||||||||||||||||||||||||||||||||||||
Packaging Dimension | 49,00 x 64,00 x 76,00 | |||||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
EAN | 4011209569461 | |||||||||||||||||||||||||||||||||||||||
UPC | 754554843629 | |||||||||||||||||||||||||||||||||||||||
Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
Product Group | 4952 | |||||||||||||||||||||||||||||||||||||||
Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | |||||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Type of electric connection (EF003961) | Spring clamp connection | |
Function delay-on energization (EF003374) | true | |
Function delay on de-energization (EF003401) | false | |
Function floating contact on energization (EF003378) | false | |
Function floating contact on de-energization (EF003402) | false | |
Function star-delta (EF003380) | false | |
Function pulse shaping (EF003403) | false | |
Function flashing, starting with pause, fixed time (EF003363) | false | |
Function flashing, starting with pulse, fixed time (EF003364) | false | |
Clock function, starting with pause, variable (EF003365) | false | |
Clock function, starting with pulse, variable (EF003366) | false | |
With plug-in socket (EF003360) | false | |
Remote operation possible (EF003361) | false | |
Suitable as remote control (EF003362) | false | |
Pluggable on auxiliary contact block (EF006952) | false | |
Rated control supply voltage Us at AC 50HZ (EF003978) | ['24', '200'] | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | ['200', '240'] | V |
Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
Voltage type for actuating (EF008242) | AC/DC | |
Nominal current (EF000001) | - | A |
Time range (EF003384) | ['0.05', '360000.0'] | s |
Number of outputs, undelayed, normally closed contact (EF006835) | 0 | |
Number of outputs, undelayed, normally open contact (EF006836) | 0 | |
Number of outputs, undelayed, change-over contact (EF006837) | 0 | |
Number of outputs, delayed, normally closed contact (EF006838) | 0 | |
Number of outputs, delayed, normally open contact (EF006839) | 0 | |
Number of outputs, delayed, change-over contact (EF006840) | 1 | |
Outputs, reversible delayed/undelayed (EF006988) | - | |
With semiconductor output (EF003373) | false | |
Suitable for DIN rail (top hat rail) mounting (EF007250) | screw and snap-on mounting onto 35 mm standard mounting rail | |
Suitable for front mounting (EF001127) | screw and snap-on mounting onto 35 mm standard mounting rail | |
Width (EF000008) | 45.0 | mm |
Height (EF000040) | 57.0 | mm |
Depth (EF000049) | 73.0 | mm |
