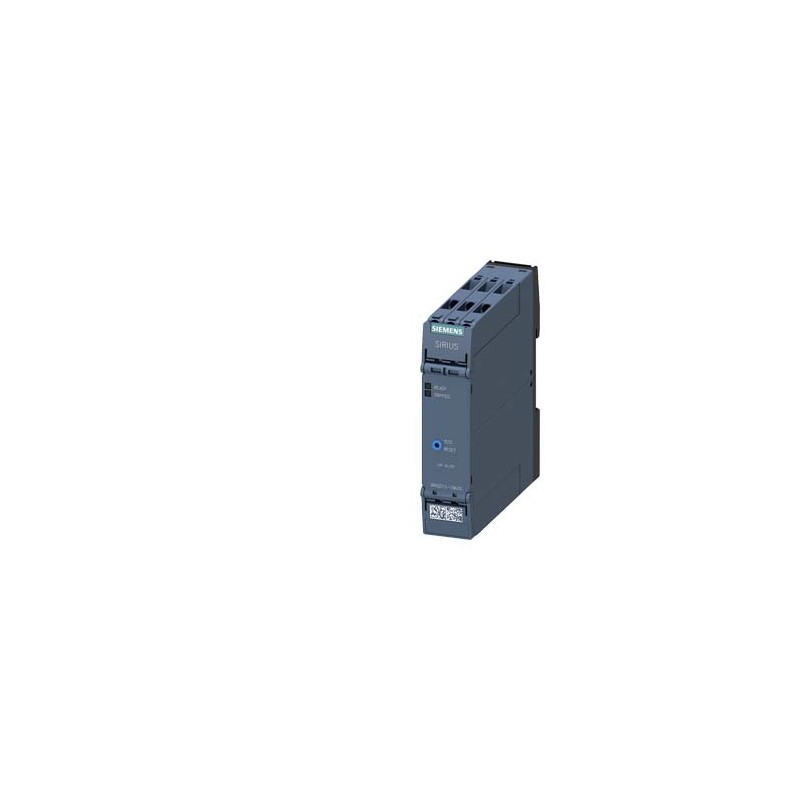

3RN2012-1BA30 SIEMENS thermistor motor protection relay standard evaluation unit 22.5 mm enclosure screw ter.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RN2012-1BA30 SIEMENS thermistor motor protection relay standard evaluation unit 22.5 mm enclosure screw ter..

3RN2012-1BA30

SIEMENS

thermistor motor protection relay standard evaluation unit 22.5 mm enclosure screw terminal 2 changeover contacts Us = 24 V AC/DC manual/auto/remote RESET with ATEX approval 2 LEDs (ready/tripped) electrical isolation test/RESET button wire-break monitoring short-circuit monitoring non-volatile

Prot. relay Thermistor motor EVAL unit. standard 22.5 mm box Screw terminals 2 switched US = AC/DC 24 V Manual/Auto/Remote reset with ATEX approval 2 LEDs (READY/TRIPPED) Galvanic isolation Test/reset button Wire break monitoring Short circuit monitoring Non-volatile signaling.

More details


Low-voltage industrial components > Relay for thermistor protection (PTC)

CONTROL AND CONTACTORS > Function relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $290.58
Unit price: $290.58
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)3RN2012-1BA30
Product Descriptionthermistor motor protection relay standard evaluation unit 22.5 mm enclosure screw terminal 2 changeover contacts Us = 24 V AC/DC manual/auto/remote RESET with ATEX approval 2 LEDs (ready/tripped) electrical isolation test/RESET button wire-break monitoring short-circuit monitoring non-volatile
Product familySIRIUS 3RN2 thermistor motor protection
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,170 Kg
Packaging Dimension37,00 x 109,00 x 132,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621006642
UPC804766415593
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group4953
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 28.05.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-37-15-03
eClass1427-37-15-03
eClass627-37-15-03
eClass7.127-37-15-03
eClass827-37-15-03
eClass927-37-15-03
eClass9.127-37-15-03
ETIM10EC002568
ETIM7EC002568
ETIM8EC002568
ETIM9EC002568
IDEA45282
UNSPSC1539-12-22-29

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RN2012-1BA30 3RN2012-1BA30 EN_3RN2012-1BA30.pdf 394 Kbytes 3RN2012-1BA30 3RN2012-1BA30 EN_3RN2012-1BA30.pdf
