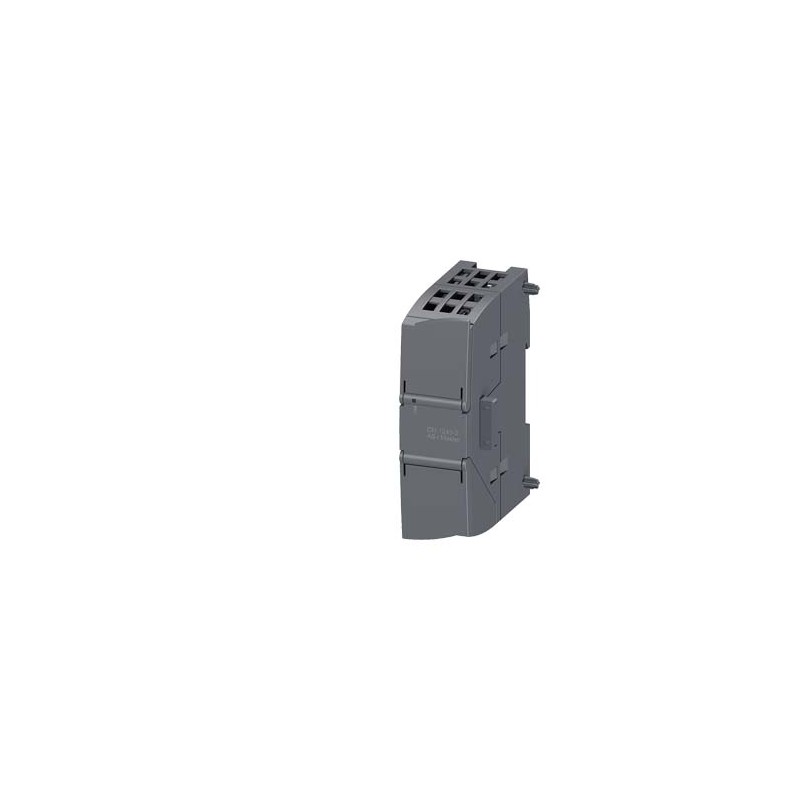

3RK7243-2AA30-0XB0 SIEMENS SIMATIC S7-1200, CM 1243-2 communication module AS-Interface master according to .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK7243-2AA30-0XB0 SIEMENS SIMATIC S7-1200, CM 1243-2 communication module AS-Interface master according to ..

3RK7243-2AA30-0XB0

SIEMENS

SIMATIC S7-1200, CM 1243-2 communication module AS-Interface master according to AS-i specification V3.0

SIMATIC S7-1200, CM 1243-2, AS-interface master module for S7-1200, spec. V3.0.

More details


PLC's > PLC communication module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $718.47
Unit price: $718.47
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

SIMATIC S7-1200, CM 1243-2 communication module AS-Interface master according to AS-i specification V3.0
General technical data
product designationAS-Interface Master
product type designationCM 1243-2
protection class IPIP20
type of electrical connection of the AS-InterfaceScrew-type connection
type of voltage supplyvia backplane bus
operating condition separate power supply 24 VNo
consumed current
● from profile conductors of the AS-Interface
— at 30 V maximummA100
● from backplane bus maximummA250
power loss [W]W2.9
insulation voltage rated valueV500
product function suitable for AS-i Power24VYes
● noteAll product versions
product feature redundancy capabilityNo
product function
● web-based managementNo
● diagnostics via emailNo
● galvanic isolationYes
display version
● as status display by LEDAS-i, PF, CM, CER, DIAG
type of configuration of the AS-InterfaceWith STEP 7, command interface
Communication/ Protocol
version of the AS-Interface specificationV 3.0
AS-Interface master profile is supportedM4 (in acc. with AS-interface specification V 3.0)
type of data transmissionS7-1200 backplane bus
number of units per CPU maximum3
number of units per CPU maximum noteMax. 3 communication modules in total (CM /CP)
number of interfaces
● as AS-Interface1
● according to RS 4850
● according to Industrial Ethernet0
● according to PROFINET0
● according to wireless0
● according to USB0
● other0
product component optical interfaceNo
protocol is supported
● ASIsafe (Safety at work) protocolNo
● PROFIsafe protocolNo
● PROFIBUS protocolNo
● PROFINET IO protocolNo
● PROFINET CBA protocolNo
● TCP/IPNo
● SNMPNo
standard for wireless communication IEEE 802.11No
Inputs/ Outputs
number of inputs for AS-Interface maximum496
number of outputs for AS-Interface maximum496
number of AS-i slaves per AS-Interface maximum62
bus cycle time of the AS-Interface
● for 31 slavesms5
● for 62 slavesms10
access to digital I/O datavia process image/peripheral addresses
access to analog I/O datavia process diagram/peripheral addresses and data record transfer
Mechanical data
widthmm30
heightmm100
depthmm75
fastening methodsnap-on fastening on 35 mm standard rail
module formatS7-1200 design
Ambient conditions
ambient temperature
● if installed on horizontal mounting rail°C0 ... 55
● if installed on vertical mounting rail during operation°C0 ... 45
● during transport°C-40 ... +70
● during storage°C-40 ... +70
relative humidity at 25 °C during operation maximum%95
installation altitude at height above sea level maximumm2 000
Safety related data
suitability for use safety-related functionNo
explosion protection marking for intrinsic safety of related equipment
● EEx iaNo
● EEx ibNo
explosion protection category for gasnone
explosion protection category for dustnone
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCFor use in hazardous locations

Confirmation

FM

UL

EAC

RCM

ATEX-EC-Type-Examination-Certificate

For use in hazardous locationsMarine / Shippingother

IECEx

Explosion Protection Certificate

DNV-GL

ASI-Certification

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/7/2021
Date
5/7/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK7243-2AA30-0XB0
Product DescriptionSIMATIC S7-1200, CM 1243-2 communication module AS-Interface master according to AS-i specification V3.0
Product familyCM 1243-2
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,154 Kg
Packaging Dimension80,00 x 124,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209878181
UPC040892915679
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5321
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-22-08
eClass7.127-24-22-08
eClass827-24-22-08
eClass927-24-22-08
eClass9.127-24-22-08
ETIM5EC001423
ETIM6EC001423
ETIM7EC001423
ETIM8EC001423
IDEA43564
UNSPSC1439-12-15-21
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001423 - PLC communication module

Value Unit
Category according to EN 954-1 (EF006782) -
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) false
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
Redundancy (EF003156) false
Type of data transmission (EF008225) Module rack extension
Transmission rate (EF003271) 167.0kBit/s
With potential separation (EF003272) true
SIL according to IEC 61508 (EF009889) None
Suitable for safety functions (EF001597) false
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) false
Appendant operation agent (Ex ib) (EF004142) false
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 30.0mm
Height (EF000040) 100.0mm
Depth (EF000049) 75.0mm
