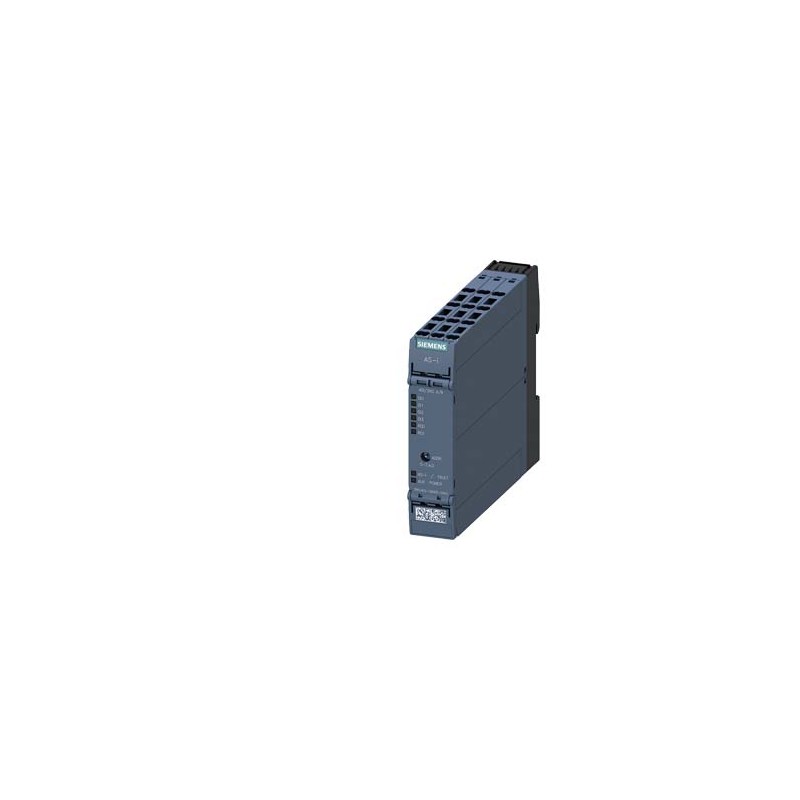

3RK2402-2MG00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/2 RQ, IP20 4 x inputs.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK2402-2MG00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/2 RQ, IP20 4 x inputs..

3RK2402-2MG00-2AA2

SIEMENS

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/2 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 2 x outlet relay 1 A DC 24 V spring-type terminals Overall width 22.5 mm

COMPACT MODULE AS-I SLIMLINE IP20, SLAVE A/B DIG, 4DI/2RQ SPRING TERMINALS, 22.5 MM 4 INPUTS P. SENSORS 3 WIRES ALIMENT. SWITCHABLE SENSORS 2 OUTPUTS TO RELE 1A

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $264.78
Unit price: $264.78
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/2 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 2 x outlet relay 1 A DC 24 V spring-type terminals Overall width 22.5 mm
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC22.5, 4DI/2RQ A/B
General technical data
protection class IPIP20
design of the slave typeA/B slave
AS-Interface slave profileS-7.A.0
ID1 code7; Factory setting, changeable
operating voltage according to AS-Interface specification18 ... 31.6 V
product function suitable for AS-i Power24VYes
protocol is supported AS-Interface protocolYes
consumed current from profile conductors of the AS-Interface
● at 30 V maximum270 mA
● at 24 V with AS-i Power24V maximum270 mA
type of address setting of AS-i slavesvia front addressing socket
display version
● as status display of the inputs/outputsYellow LED
● for AS-InterfaceLED green/red
reference code
● according to EN 61346-2K
● according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15g / 11 ms (modules) or 10g / 11 ms (modules with device connector)
other informationSensor supply via Uaux: Auxiliary feed 20 to 30 V DC required to supply the sensor. Sensor supply via AS-i: No additional power required.
Digital Inputs
number of digital inputs4
number of digital inputs safety-related0
type of input characteristicPNP Type 2
type of connection technology2- and 3-wire technology
Sensor supply
type of voltage supply for power supplyAS-Interface / U_AUX switchable
ampacity of the sensor supply for all inputs at ambient temperature 40 °C500 mA
● note200 mA with supply via AS interface / 500 mA with supply via Uaux
property of the sensor supply short-circuit and overload resistantYes
voltage drop at the sensor supply
● from AS-interface8.5 V
● from external auxiliary voltage1 V
Digital Outputs
number of digital outputs2
type of switching outputRelays, CO contacts
property of the output short-circuit proofNo
ampacity of the output relay at AC-15 at 230 V at 50/60 Hz3 A
ampacity of the output relay at DC-13
● at 24 V1 A
● at 110 V0.2 A
● at 230 V0.1 A
thermal current5 A
Analog inputs
number of analog inputs0
Analog outputs
number of analog outputs0
Device connector
ampacity of the interface to the device connector
● for AS-Interface2 A
● for external auxiliary voltage4 A
Installation/ mounting/ dimensions
fastening methodscrew and snap-on mounting
height100 mm
width22.5 mm
depth120 mm
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsSpring-loaded terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
● finely stranded with core end processing1x (0,25 ... 1,0 mm²), 2x (0,25 ... 1,0 mm²)
● finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
● at AWG cables solid1x (20 ... 16), 2x (20 ... 16)
● at AWG cables stranded1x (20 ... 16), 2x (20 ... 16)
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

DNV-GL

other

ASI-Certification

Confirmation

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/18/2021
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK2402-2MG00-2AA2
Product DescriptionAS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/2 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 2 x outlet relay 1 A DC 24 V spring-type terminals Overall width 22.5 mm
Product familySlimLine Compact
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,247 Kg
Packaging Dimension111,00 x 157,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209974531
UPC804766359866
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
ETIM8EC001599
IDEA43566
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
Supporting protocol for DeviceNet (EF003059) -
Output current (EF003202) -A
System accessory (EF004118) -
Degree of protection (IP) (EF005474) -
Supporting protocol for PROFINET IO (EF007525) -
Permitted voltage at output (EF007553) -V
Category according to EN 954-1 (EF006782) -
Permitted voltage at input (EF007554) -V
Supporting protocol for LON (EF003017) -
Number of HW-interfaces other (EF003027) -
Number of digital inputs (EF001992) -
Type of voltage (input voltage) (EF003033) -
Supply voltage AC 60 Hz (EF007533) -V
Type of output voltage (EF008222) -
SIL according to IEC 61508 (EF009889) -
Supporting protocol for KNX (EF003055) -
IO link master (EF007298) -
Width (EF000008) -mm
Number of HW-interfaces serial TTY (EF003024) -
Supporting protocol for PROFIBUS (EF003052) -
Fieldbus connection over separate bus coupler possible (EF004002) -
Appendant operation agent (Ex ib) (EF004142) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Digital inputs configurable (EF008516) -
Supporting protocol for SUCONET (EF003060) -
Supporting protocol for SafetyBUS p (EF007527) -
Explosion safety category for dust (EF003998) -
Radio standard GPRS (EF008523) -
Supporting protocol for DeviceNet Safety (EF007520) -
Depth (EF000049) -mm
Suitable for safety functions (EF001597) -
Number of digital outputs (EF001993) -
Time delay at signal exchange (EF002382) -ms
Number of HW-interfaces industrial Ethernet (EF003020) -
Supporting protocol for CAN (EF003053) -
Explosion safety category for gas (EF003997) -
Performance level according to EN ISO 13849-1 (EF007399) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Supporting protocol for EtherNet/IP (EF007521) -
Radio standard GSM (EF008524) -
Rail mounting possible (EF003972) -
Appendant operation agent (Ex ia) (EF004141) -
Type of digital output (EF003601) -
Supporting protocol for SERCOS (EF006657) -
Height (EF000040) -mm
Input current at signal 1 (EF001428) -mA
Number of HW-interfaces RS-232 (EF003021) -
Number of HW-interfaces parallel (EF003026) -
Supporting protocol for TCP/IP (EF003050) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for Modbus (EF003057) -
Supporting protocol for Data-Highway (EF003058) -
Type of electric connection (EF003961) -
Radio standard WLAN 802.11 (EF007179) -
Supply voltage DC (EF007534) -V
Radio standard UMTS (EF008525) -
Number of HW-interfaces RS-422 (EF003022) -
Number of HW-interfaces RS-485 (EF003023) -
Number of HW-interfaces USB (EF003025) -
Supporting protocol for other bus systems (EF003062) -
Short-circuit protection, outputs available (EF003203) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Front build in possible (EF007016) -
Supporting protocol for PROFINET CBA (EF007524) -
Supporting protocol for PROFIsafe (EF007526) -
Digital outputs configurable (EF008520) -
Supply voltage AC 50 Hz (EF007532) -V
Voltage type of supply voltage (EF002991) -
With optical interface (EF003028) -
Supporting protocol for ASI (EF003051) -
Number of interfaces PROFINET (EF006932) -
Number of HW-interfaces Wireless (EF006933) -
Rack-assembly possible (EF007018) -
Wall mounting/direct mounting (EF007020) -
Radio standard Bluetooth (EF007178) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK2402-2MG00-2AA2 3RK2402-2MG00-2AA2 EN_3RK2402-2MG00-2AA2.pdf 411 Kbytes 3RK2402-2MG00-2AA2 3RK2402-2MG00-2AA2 EN_3RK2402-2MG00-2AA2.pdf
