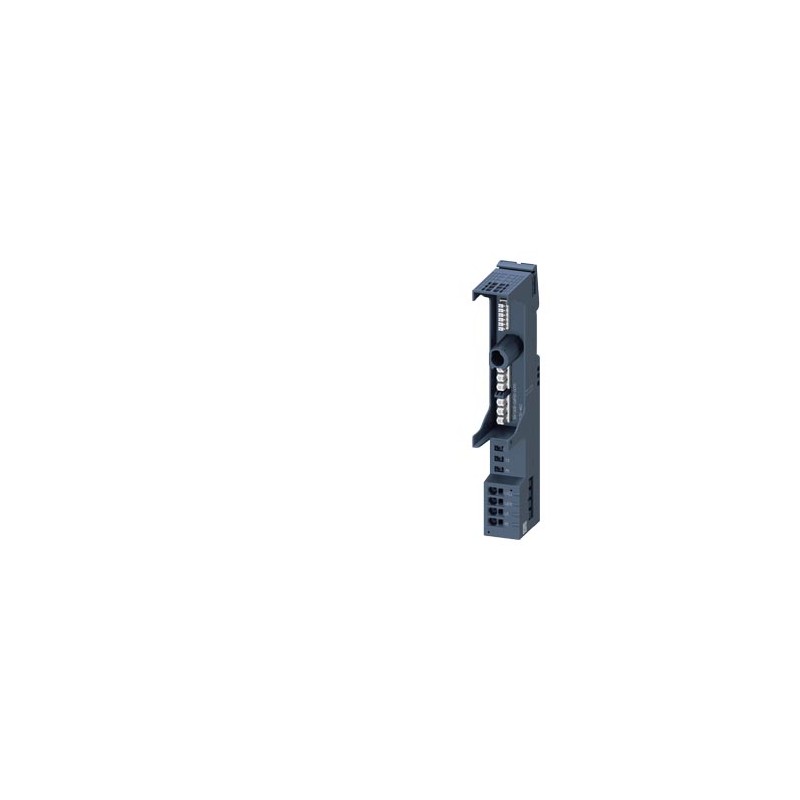

3RK1908-0AP00-0CP0 SIEMENS Base unit (BU30-MS2) For ET 200SP motor starter With infeed 500 V Incl. infeed bu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1908-0AP00-0CP0 SIEMENS Base unit (BU30-MS2) For ET 200SP motor starter With infeed 500 V Incl. infeed bu..

3RK1908-0AP00-0CP0

SIEMENS

Base unit (BU30-MS2) For ET 200SP motor starter With infeed 500 V Incl. infeed bus cover

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $235.25
Unit price: $235.25
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Base unit (BU30-MS2) For ET 200SP motor starter With infeed 500 V Incl. infeed bus cover
product brand nameSIMATIC
product categoryAccessories
product designationBaseUnit
design of the productFor AC feed in
product type designationET 200SP
General technical data
insulation voltage rated value500 V
degree of pollution2
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation
● between main and auxiliary circuit500 V
shock resistance6g / 11 ms
vibration resistance15 mm to 6 Hz; 2g to 500 Hz
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)04/15/2016
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe
Main circuit
number of poles for main current circuit3
type of voltage of the operating voltageAC
operating voltage rated value500 V
operating voltage of AC supply500 V
operational current at AC at 400 V rated value32 A; Derating, see Manual
Inputs/ Outputs
number of digital inputs0
Supply voltage
type of voltage of the supply voltageDC
supply voltage 1 at DC rated value24 V
● minimum permissible20.4 V
● maximum permissible28.8 V
ampacity maximum7 A
Installation/ mounting/ dimensions
mounting positionvertical, horizontal
fastening methodstandard rail
height215 mm
width30 mm
depth75 mm
required spacing with side-by-side mounting
● upwards50 mm
● downwards50 mm
Ambient conditions
installation altitude at height above sea level maximum4 000 m; For derating see manual
ambient temperature
● during operation-25 ... +60 °C; For derating see manual
● during storage-40 ... +70 °C
● during transport-40 ... +70 °C
environmental category during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices)
relative humidity during operation10 ... 95 %
air pressure according to SN 31205900 ... 1 060 hPa
Connections/ Terminals
type of electrical connection
● for main current circuitspring-loaded terminals (push-in)
● for auxiliary and control circuitspring-loaded terminals (push-in)
type of connecting terminalPush-in terminal
type of connectable conductor cross-sections for supply
● solid1x 1 ... 6 mm²
● finely stranded without core end processing1x 1 ... 6 mm²
● finely stranded with core end processing1x 1 ... 6 mm²
type of connectable conductor cross-sections
● at AWG cables for supply1x 18 ... 10
type of connectable conductor cross-sections for load-side outgoing feeder
● solid1x 0,5 ... 2,5 mm²
● finely stranded without core end processing1x 0,5 ... 2,5 mm²
● finely stranded with core end processing1x 0,5 ... 2,5 mm²
type of connectable conductor cross-sections at AWG cables for load-side outgoing feeder1x 20 ... 12
shape of the screwdriver tipSlot
size of the screwdriver tipStandard screwdriver 0.6 mm x 3.5 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of ConformityTest CertificatesMarine / Shipping

Confirmation

EAC

RCM

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

Marine / Shippingother

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/16/2020
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1908-0AP00-0CP0
Product DescriptionBase unit (BU30-MS2) For ET 200SP motor starter With infeed 500 V Incl. infeed bus cover
Product familyET 200SP motor starters
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42D / 42D
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,224 Kg
Packaging Dimension55,00 x 219,00 x 86,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621021331
UPC804766246968
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3724
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 15.04.2016
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-05
eClass7.127-37-09-05
eClass827-37-09-05
eClass927-37-09-05
eClass9.127-37-09-05
ETIM5EC001037
ETIM6EC001037
ETIM7EC001037
ETIM8EC001037

ETIM data

ETIM: EC001037 - Motor starter/Motor starter combination

Value Unit
Supporting protocol for SERCOS (EF006657) -
Supporting protocol for PROFINET IO (EF007525) -
Supporting protocol for INTERBUS (EF003054) -
Number of indicator lights (EF001965) -
Degree of protection (NEMA) (EF011959) -
Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) -A
Rated conditional short-circuit current, type 2, 400 V (EF009605) -A
Release class (EF006668) -
Supporting protocol for INTERBUS-Safety (EF006662) -
External reset possible (EF003426) -
Supporting protocol for Data-Highway (EF003058) -
Supporting protocol for other bus systems (EF003062) -
Supporting protocol for EtherNet/IP (EF007521) -
Rated power, 575 V, 60 Hz, 3-phase (EF009601) -kW
Coordination class according to IEC 60947-4-3 (EF012390) -
Supporting protocol for Modbus (EF003057) -
Rated control supply voltage Us at AC 60HZ (EF003979) -V
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Supporting protocol for PROFIsafe (EF007526) -
Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) -A
Number of auxiliary contacts as normally closed contact (EF001377) -
Supporting protocol for LON (EF003017) -
Supporting protocol for DeviceNet Safety (EF007520) -
Supporting protocol for PROFINET CBA (EF007524) -
Rated power, 460 V, 60 Hz, 3-phase (EF009600) -kW
Rated operation power at AC-3, 400 V (EF001364) -kW
Supporting protocol for TCP/IP (EF003050) -
Rated control supply voltage Us at DC (EF003980) -V
Temperature compensated overload protection (EF009604) -
With fuse (EF006693) -
Rated operation power at AC-3, 230 V, 3-phase (EF009599) -kW
Number of command positions (EF001372) -
Number of auxiliary contacts as normally open contact (EF001376) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for CAN (EF003053) -
Supporting protocol for SUCONET (EF003060) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Rated conditional short-circuit current, type 2, 230 V (EF009606) -A
Suitable for emergency stop (EF001433) -
Overload release current setting (EF002336) -A
Supporting protocol for ASI (EF003051) -
Supporting protocol for DeviceNet (EF003059) -
Rail mounting possible (EF003972) -
With short-circuit release (EF006691) -
Supporting protocol for SafetyBUS p (EF007527) -
Rated operation current at AC-3, 400 V (EF009602) -A
Ambient temperature, upper operating limit (EF009603) -°C
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Type of motor starter (EF009598) Other
Voltage type for actuating (EF008242) DC
Rated operation current Ie (EF001443) 32A
Type of electrical connection of main circuit (EF006819) Other
Type of electrical connection for auxiliary- and control current circuit (EF006979) Other
With transformer (EF000278) false
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 30.0mm
Height (EF000040) 215.0mm
Depth (EF000049) 75.0mm
