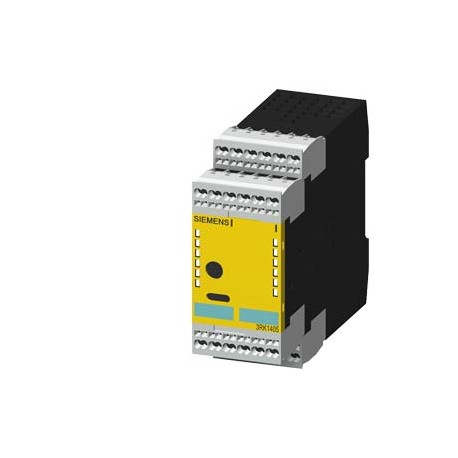

3RK1405-1SG15-0AA2 SIEMENS ASIsafe SlimLine module S45F digital safety IP20 1F-RQ/3DI/2DQ 1 x safe output Re.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1405-1SG15-0AA2 SIEMENS ASIsafe SlimLine module S45F digital safety IP20 1F-RQ/3DI/2DQ 1 x safe output Re..

3RK1405-1SG15-0AA2

SIEMENS

ASIsafe SlimLine module S45F digital safety IP20 1F-RQ/3DI/2DQ 1 x safe output Relay 2-channel 3 x standard input 2 x standard output 24 V DC spring-type terminals Width 45 mm

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

ASIsafe SlimLine module S45F digital safety IP20 1F-RQ/3DI/2DQ 1 x safe output Relay 2-channel 3 x standard input 2 x standard output 24 V DC spring-type terminals Width 45 mm
General technical data
design of the productSafe SlimLine module S45F, 1F-RO/2DI/2DO
I/O configuration7
ID/ID2 codeA/E
protocol is supported AS-Interface protocolYes
type of electrical connection of the inputs and outputsspring-loaded terminals
AS interface total current input maxmA200
Addressingfront addressing socket
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
reference code according to EN 61346-2A
Inputs
number of digital inputs2
Inputs
● switching level High10
● switching level Low5
input current at digital input for signal <1> minimummA5
Outputs
number of digital outputs2
type of voltage of output voltagesDC
Outputs external power supply 24 V DCvia AUX POWER
property of the output short-circuit proofYes
Outputs
● short-ciruit protectionbuilt-in
● induction protectionbuilt-in
● watchdogbuilt-in
Status display
● display of I/Osyellow LED
● display of Uauxgreen LED
● display of AS-Interface/diagnosticsgreen/red LED
Ambient conditions
ambient temperature
● during operation°C-25 ... +70
● during storage°C-40 ... +85
protection class IPIP20
Mechanical data
widthmm45
heightmm107.7
depthmm120
fastening methodstandard rail mounting/wall mounting
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCFunctional Safety/Safety of Machinery

CSA

Confirmation

UL

EAC

RCM

Type Examination Certificate

Declaration of ConformityMarine / Shipping

EC/EU-Declaration of Conformity

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Marine / Shippingother

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/18/2021
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1405-1SG15-0AA2
Product DescriptionASIsafe SlimLine module S45F digital safety IP20 1F-RQ/3DI/2DQ 1 x safe output Relay 2-channel 3 x standard input 2 x standard output 24 V DC spring-type terminals Width 45 mm
Product familyAS-Interface safety modules
Product Lifecycle (PLM)PM300:Active Product
PLM Effective DateProduct phase-out since: 01.10.2022
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,360 Kg
Packaging Dimension120,00 x 135,00 x 60,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209860216
UPC040892624793
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
ETIM8EC001599
IDEA43566
UNSPSC1439-12-15-21
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
Digital inputs configurable (EF008516) -
Permitted voltage at output (EF007553) -V
Type of digital output (EF003601) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Supply voltage DC (EF007534) ['-', '-']V
Voltage type of supply voltage (EF002991) DC
Number of digital inputs (EF001992) 2
Number of digital outputs (EF001993) 2
Digital outputs configurable (EF008520) false
Input current at signal 1 (EF001428) 5.0mA
Permitted voltage at input (EF007554) ['-', '-']V
Type of voltage (input voltage) (EF003033) DC
Type of output voltage (EF008222) DC
Short-circuit protection, outputs available (EF003203) true
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) true
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP20
Type of electric connection (EF003961) Spring clamp connection
Time delay at signal exchange (EF002382) ['-', '-']ms
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) false
Rack-assembly possible (EF007018) false
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) 4
SIL according to IEC 61508 (EF009889) 3
Performance level according to EN ISO 13849-1 (EF007399) Level e
Appendant operation agent (Ex ia) (EF004141) false
Appendant operation agent (Ex ib) (EF004142) false
Explosion safety category for gas (EF003997) FALSE
Explosion safety category for dust (EF003998) FALSE
Width (EF000008) 45.0mm
Height (EF000040) 107.7mm
Depth (EF000049) 120.0mm
Output current (EF003202) -A



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1405-1SG15-0AA2 3RK1405-1SG15-0AA2 EN_3RK1405-1SG15-0AA2.pdf 213 Kbytes 3RK1405-1SG15-0AA2 3RK1405-1SG15-0AA2 EN_3RK1405-1SG15-0AA2.pdf
