> SIEMENS>CONTROL AND CONTACTORS>AS-Interface switchgear, SIMOCODE>3RK1405-0BQ00-0AA3 SIEMENS ASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mecha..
Previous Product Next Product

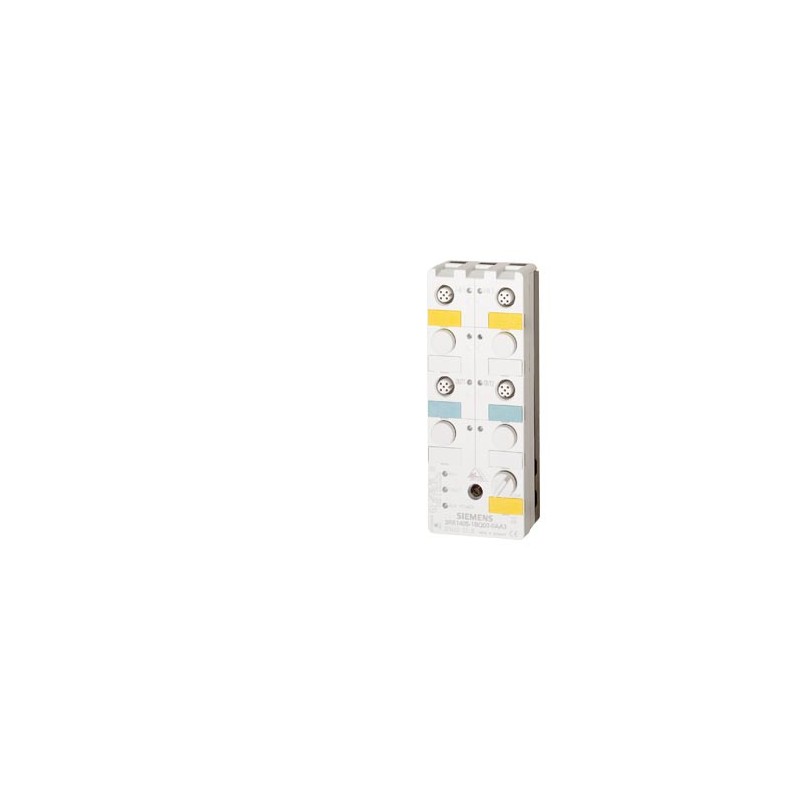

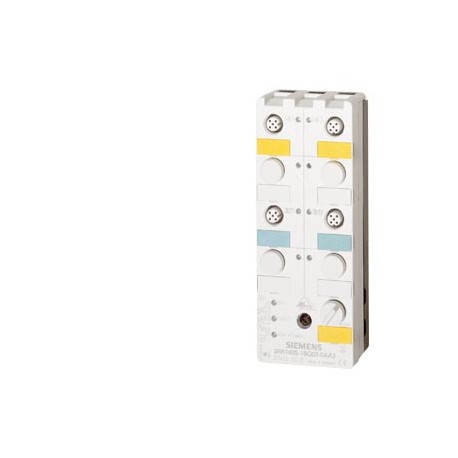

3RK1405-0BQ00-0AA3 SIEMENS ASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mecha.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1405-0BQ00-0AA3 SIEMENS ASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mecha..

3RK1405-0BQ00-0AA3

SIEMENS

ASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply from U_ASI 4 x M12 socket Mounting plate 3RK1901-0CA00 must be ordered separately

More details


PLC's > Fieldbus, decentr. periphery - digital I/O module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
Suitable for safety functions (EF001597) -
Permitted voltage at output (EF007553) -V
Supply voltage DC (EF007534) -V
Digital inputs configurable (EF008516) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Voltage type of supply voltage (EF002991) DC
Number of digital inputs (EF001992) -
Number of digital outputs (EF001993) 2
Digital outputs configurable (EF008520) false
Input current at signal 1 (EF001428) 5.0mA
Permitted voltage at input (EF007554) ['-', '-']V
Type of voltage (input voltage) (EF003033) DC
Type of digital output (EF003601) Other
Output current (EF003202) 0.18A
Type of output voltage (EF008222) DC
Short-circuit protection, outputs available (EF003203) true
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) true
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP67
Type of electric connection (EF003961) Screw connection
Time delay at signal exchange (EF002382) ['-', '-']ms
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) false
Rack-assembly possible (EF007018) false
Category according to EN 954-1 (EF006782) 4
SIL according to IEC 61508 (EF009889) 3
Performance level according to EN ISO 13849-1 (EF007399) Level e
Appendant operation agent (Ex ia) (EF004141) false
Appendant operation agent (Ex ib) (EF004142) false
Explosion safety category for gas (EF003997) FALSE
Explosion safety category for dust (EF003998) FALSE
Width (EF000008) 60.0mm
Height (EF000040) 152.0mm
Depth (EF000049) 29.0mm


ASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply from U_ASI 4 x M12 socket Mounting plate 3RK1901-0CA00 must be ordered separately
General technical data
Design of the productSafe compact module K60F, 2F-DI/2DO
Type2 inputs, safe, 2 outputs, standard
I/O configuration7
ID/ID2 codeB/F
Protocol is supported AS-Interface protocolYes
Number I/O sockets4
Type of electrical connection of the inputs and outputsM12
operating voltage according to AS-Interface spezificationV26.5 ... 31.5
AS interface total current input maxmA270
Ground terminalPIN 5 of each M12 socket is connected to the grounding wrist strap in the mounting plate using a pin (outputs only, socket 5 and 6)
Addressingfront addressing socket
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750A
Reference code acc. to DIN EN 61346-2A
Inputs
Number of digital inputs safety-related2
Inputs
● sensorsmechanical switching contact
● switching level Highcontact closed
● switching level Lowcontact open
Input current at digital input for signal <1> minimummA5
Design of the pin assignment of the inputsspecial assignement
Outputs
Number of digital outputs2
Type of voltage of output voltagesDC
Outputs external power supply 24 V DCvia AS-Interface
Output current at digital output for signal <1> Rated valueA0.18
Type of switching outputsolid state
Design of the pin assignment of the outputsstandard assignement
Property of the output Short-circuit proofYes
Outputs
● short-ciruit protectionbuilt-in
● induction protectionbuilt-in
● watchdogbuilt-in
Status display
● display of I/Osyellow LED
● display of AS-Interface/diagnosticsgreen/red LED
Ambient conditions
Ambient temperature
● during operation°C-25 ... +70
● during storage°C-40 ... +85
Protection class IPIP67
Mechanical data
Widthmm60
Heightmm152
Depthmm29
Mounting typestandard rail mounting/wall mounting using mounting plate for K60 compact module
Certificates/ approvals
General Product ApprovalEMCFunctional Safety/Safety of Machinery

CSA

UL

EAC

RCM

Miscellaneous

Type Examination Certificate

Declaration of ConformityShipping Approval

EC/EU-Declaration of Conformity

Miscellaneous

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

Shipping Approvalother

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:05/15/2020


Product
Article Number (Market Facing Number)3RK1405-0BQ00-0AA3
Product DescriptionASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply from U_ASI 4 x M12 socket Mounting plate 3RK1901-0CA00 must be ordered separately
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2019
Notes
For this product a successor is available3RK1405-0BQ20-0AA3
Successor information
Successor3RK1405-0BQ20-0AA3
Successor DescriptionASIsafe compact module K45F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply from U_ASI 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately
Price data
Price Group42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)0,200 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension45,00 x 165,00 x 72,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209533639
UPC783087661066
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM4EC001599
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
IDEA43566
UNSPSC1432-15-17-05
