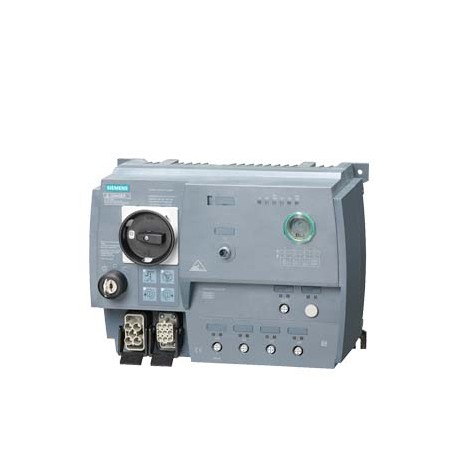

3RK1315-6LS41-3AA0 SIEMENS SIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter Bas.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1315-6LS41-3AA0 SIEMENS SIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter Bas..

3RK1315-6LS41-3AA0

SIEMENS

SIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter Basic Mechanical switching AC-3, 5.5 kW / 400 V 1.5 A...12.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC without brake contact 2DI AS-i + 2DI / 1DO on device Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch

SIRIUS ARRANCANC. ENGINE M200D AS-I COMMUNICATION: AS-ENTERFACE START. BASIC INVERTER MECHANICAL CLOSURE 3 AC 400V/5,5KW; 1,5A... 12.00A; PROTEC. ELECT. AGAINST OVERLOAD; THERMISTOR: TERMOCLICK / PTC NON-CONTACT BRAKE 2DI AS-I + 2DI / 1DO ON THE DEVICE HAN Q4/2-HAN Q8/0 C / MANUAL AND LOCAL CONTROL AND SECURITY LOCK. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Motor starter/Motor starter combination

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $1,128.41
Unit price: $1,128.41
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

SIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter Basic Mechanical switching AC-3, 5.5 kW / 400 V 1.5 A...12.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC without brake contact 2DI AS-i + 2DI / 1DO on device Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch
product brand nameSIRIUS
product designationMotor starters
design of the productreversing starter
product type designationM200D
trip classCLASS 10
product function
● on-site operationYes
● control circuit interface to parallel wiringNo
insulation voltage rated value500 V
degree of pollution3
surge voltage resistance rated value6 000 V
maximum permissible voltage for safe isolation
● between main and auxiliary circuit400 V
● between control and auxiliary circuit24 V
protection class IPIP65
shock resistance12g / 11 ms
vibration resistance7 mm / 2g
mechanical service life (switching cycles) of the main contacts typical10 000 000
type of assignment1
certificate of suitabilityCE
Substance Prohibitance (Date)07/01/2006
product function
● direct startNo
● reverse startingYes
product component motor brake outputNo
product feature
● brake control with 230 V ACNo
● brake control with 400 V ACNo
● brake control with 24 V DCNo
● brake control with 180 V DCNo
● brake control with 500 V DCNo
product extension braking module for brake controlNo
product function short circuit protectionYes
design of short-circuit protectioncircuit-breakers
breaking capacity maximum short-circuit current (Icu)
● at 400 V rated value50 000 A
● at 500 V rated value50 000 A
EMC emitted interference according to IEC 60947-1CISPR11, ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3, ambience A (industrial sector)
conducted interference
● due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
touch protection against electrical shockfinger-safe
Main circuit
number of poles for main current circuit3
design of the switching contactelectromechanical
adjustable current response value current of the current-dependent overload release1.5 ... 12 A
type of the motor protectionfull motor protection
operating voltage rated value200 ... 440 V
operational current
● at AC at 400 V rated value12 A
● at AC-3 at 400 V rated value12 A
operating power
● at AC-3
— at 400 V rated value5.5 kW
— at 500 V rated value5 500 W
product function
● digital inputs parameterizableNo
● digital outputs parameterizableNo
number of digital inputs4
number of sockets
● for digital output signals1
● for digital input signals4
number of digital outputs1
Supply voltage
type of voltage of the supply voltageDC
supply voltage 1 at DC24 V
supply voltage 1 at DC rated value30 V
● minimum permissible26.5 V
● maximum permissible31.6 V
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value20.4 ... 28.8 V
control supply voltage 1
● at DC rated value24 V
● at DC rated value20.4 ... 28.8 V
● at DC20.4 ... 28.8 V
control current at DC
● in standby mode of operation0.1 A
● during operation0.6 A
power loss [W] in auxiliary and control circuit
● in switching state OFF with bypass circuit2.0736 W
● in switching state ON with bypass circuit4.1184 W
Response times
ON-delay time85 ms
OFF-delay time65 ms
mounting positionvertical, horizontal, flat
● recommendedhorizontal
fastening methodscrew fixing
height215 mm
width294 mm
depth159 mm
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation-25 ... +55 °C
● during storage-40 ... +70 °C
● during transport-40 ... +70 °C
relative humidity during operation10 ... 95 %
protocol is supported
● PROFIBUS DP protocolNo
● PROFINET protocolNo
design of the interface
● AS-Interface protocolYes
● PROFINET protocolNo
● PROFIBUS DP protocolNo
product function bus communicationYes
protocol is supported AS-Interface protocolYes
product function control circuit interface with IO linkNo
type of electrical connection of the communication interfaceM12 plug
type of electrical connection
● for main current circuitplug according to ISO 23570, HAN Q4/2
● for auxiliary and control circuitconnector
type of electrical connection
● 1 for digital input signalsM12 socket
● 1 for digital output signalsM12 socket
● 2 for digital input signalsM12 socket
● 3 for digital input signalsM12 socket
● 4 for digital input signalsM12 socket
type of electrical connection
● at the manufacturer-specific device interfaceoptical interface
● for device addressingM12 plug
● for supply voltage line-sideM12 plug
full-load current (FLA) for 3-phase AC motor at 480 V rated value11 A
yielded mechanical performance [hp]
● for 3-phase AC motor
— at 220/230 V rated value3 hp
— at 460/480 V rated value7.5 hp
— at 575/600 V rated value10 hp
operating voltage at AC at 60 Hz according to CSA and UL rated value600 V
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

Declaration of ConformityTest CertificatesotherDangerous Good

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ASI-Certification

Confirmation

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2021
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1315-6LS41-3AA0
Product DescriptionSIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter Basic Mechanical switching AC-3, 5.5 kW / 400 V 1.5 A...12.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC without brake contact 2DI AS-i + 2DI / 1DO on device Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch
Product familyM200D Basic motor starters
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42D / 42D
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works100 Day/Days
Net Weight (kg)4,018 Kg
Packaging Dimension287,00 x 377,00 x 221,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209823273
UPC040892547047
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3722
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-05
eClass7.127-37-09-05
eClass827-37-09-05
eClass927-37-09-05
eClass9.127-37-09-05
ETIM5EC001037
ETIM6EC001037
ETIM7EC001037
ETIM8EC001037
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC001037 - Motor starter/Motor starter combination

Value Unit
Suitable for emergency stop (EF001433) -
Supporting protocol for CAN (EF003053) -
Rated power, 575 V, 60 Hz, 3-phase (EF009601) -kW
Number of indicator lights (EF001965) -
Number of auxiliary contacts as normally closed contact (EF001377) -
Number of auxiliary contacts as normally open contact (EF001376) -
Supporting protocol for PROFINET IO (EF007525) -
With fuse (EF006693) -
Degree of protection (NEMA) (EF011959) -
Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) -A
Supporting protocol for DeviceNet Safety (EF007520) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Rail mounting possible (EF003972) -
Supporting protocol for DeviceNet (EF003059) -
Temperature compensated overload protection (EF009604) -
Rated operation power at AC-3, 230 V, 3-phase (EF009599) -kW
Supporting protocol for SERCOS (EF006657) -
External reset possible (EF003426) -
Supporting protocol for LON (EF003017) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Supporting protocol for PROFIsafe (EF007526) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for EtherNet/IP (EF007521) -
Supporting protocol for Data-Highway (EF003058) -
Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) -A
Supporting protocol for PROFINET CBA (EF007524) -
Supporting protocol for SUCONET (EF003060) -
Rated power, 460 V, 60 Hz, 3-phase (EF009600) -kW
Ambient temperature, upper operating limit (EF009603) -°C
Rated conditional short-circuit current, type 2, 400 V (EF009605) -A
Supporting protocol for Modbus (EF003057) -
Number of command positions (EF001372) -
Supporting protocol for TCP/IP (EF003050) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for other bus systems (EF003062) -
Supporting protocol for SafetyBUS p (EF007527) -
Rated conditional short-circuit current, type 2, 230 V (EF009606) -A
Type of motor starter (EF009598) Reversing starter
With short-circuit release (EF006691) true
Rated control supply voltage Us at AC 50HZ (EF003978) ['-', '-']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['-', '-']V
Rated control supply voltage Us at DC (EF003980) ['20.4', '28.8']V
Voltage type for actuating (EF008242) DC
Rated operation power at AC-3, 400 V (EF001364) 5.5kW
Rated operation current Ie (EF001443) 12A
Rated operation current at AC-3, 400 V (EF009602) 12A
Overload release current setting (EF002336) ['1.5', '12']A
Release class (EF006668) CLASS 10
Type of electrical connection of main circuit (EF006819) Other
Type of electrical connection for auxiliary- and control current circuit (EF006979) Other
With transformer (EF000278) false
Coordination class according to IEC 60947-4-3 (EF012390) Class 1
Degree of protection (IP) (EF005474) IP65
Supporting protocol for ASI (EF003051) true
Width (EF000008) 294.0mm
Height (EF000040) 215.0mm
Depth (EF000049) 159.0mm



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1315-6LS41-3AA0 3RK1315-6LS41-3AA0 EN_3RK1315-6LS41-3AA0.pdf 324 Kbytes 3RK1315-6LS41-3AA0 3RK1315-6LS41-3AA0 EN_3RK1315-6LS41-3AA0.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
