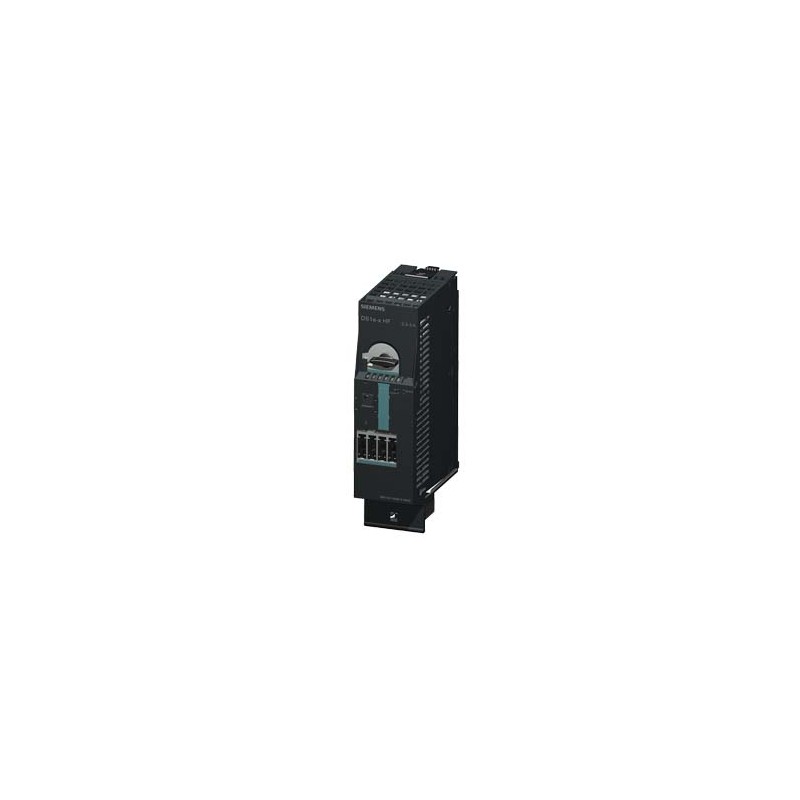

3RK1301-0BB13-0AA2 SIEMENS F-DS1E-X for ET 200S Fail-safe DOL starter Setting range 2.4...8 A Mechanical swi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1301-0BB13-0AA2 SIEMENS F-DS1E-X for ET 200S Fail-safe DOL starter Setting range 2.4...8 A Mechanical swi..

3RK1301-0BB13-0AA2

SIEMENS

F-DS1E-X for ET 200S Fail-safe DOL starter Setting range 2.4...8 A Mechanical switching Electronic protection AC-3, up to 3 kW / 400 V expandable for brake control module for 2DI control module

F-DS1E-X FOR ET 200S DIRECT STARTER FAILSAFE RANGE REGULATION 2,4...8A, MECHANICAL MANEUVER ELECTRONIC PROTECTION AC-3, UP TO 3KW / 400V, EXPANDABLE FOR BRAKE CONTROL MODULE. Manufactured to order. Non-Cancelable Non-Returnable.

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

F-DS1E-X for ET 200S Fail-safe DOL starter Setting range 2.4...8 A Mechanical switching Electronic protection AC-3, up to 3 kW / 400 V expandable for brake control module for 2DI control module
product brand nameSIMATIC
product designationMotor starters
design of the productdirect starter
product type designationET 200S
General technical data
trip classCLASS 10 and 20 adjustable
product function on-site operationYes
power loss [W] for rated value of the current without load current share typical4.22 W
insulation voltage rated value500 V
degree of pollution3 at 400 V, 2 at 500 V according to IEC60664 (IEC61131)
surge voltage resistance rated value6 kV
maximum permissible voltage for safe isolation between main and auxiliary circuit400 V
shock resistance5g / 11 ms
vibration resistance2g
operating frequency maximum80 1/h
mechanical service life (switching cycles) of the main contacts typical100 000
type of assignment2
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)10/26/2016
product function
● direct startYes
● reverse startingNo
product component motor brake outputYes
product feature
● brake control with 230 V ACNo
● brake control with 24 V DCNo
● brake control with 180 V DCNo
● brake control with 500 V DCNo
product extension braking module for brake controlYes
product function short circuit protectionYes
design of short-circuit protectioncircuit-breakers
breaking capacity maximum short-circuit current (Icu)
● at 400 V rated value50 kA
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1CISPR11, ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3, ambience A (industrial sector)
conducted interference
● due to burst according to IEC 61000-4-42 kV on voltage supply, inputs and outputs
● due to conductor-earth surge according to IEC 61000-4-52 kV (U > 24 V DC)
● due to conductor-conductor surge according to IEC 61000-4-51 kV (U > 24 V DC)
field-based interference according to IEC 61000-4-380 MHz ... 1 GHz 10 V/m, 1.4 GHz ...2 Hz 3 V/m, 2 GHz ... 2.7 GHz 1 V/m
Safety related data
safety device type according to IEC 61508-2Type B
SIL Claim Limit (subsystem) according to EN 62061SILCL 3
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-14
stop category according to EN 60204-10
Safe failure fraction (SFF)99.5 %
average diagnostic coverage level (DCavg)99 %
failure rate [FIT]
● at rate of recognizable hazardous failures (λdd)3 800 FIT
● at rate of non-recognizable hazardous failures (λdu)25 FIT
PFHD with high demand rate according to EN 620610.0000000018 1/h
PFDavg with low demand rate according to IEC 615080.00008
Average probability of failure on demand (PFDavg) with low demand rate acc. to IEC 615080.00008 1/y
MTBF14 y
MTTFd31 y
hardware fault tolerance according to IEC 615081
T1 value for proof test interval or service life according to IEC 6150820 y
safe stateLoad circuit open
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe
Main circuit
number of poles for main current circuit3
design of the switching contactelectromechanical
adjustable current response value current of the current-dependent overload release2.4 ... 8 A
type of the motor protectionsolid-state
operating voltage rated value200 ... 400 V
operating frequency 1 rated value50 Hz
operating frequency 2 rated value60 Hz
relative positive tolerance of the operating frequency10 %
relative negative tolerance of the operating frequency10 %
operating range relative to the operating voltage at AC at 50 Hz200 ... 440 V
operational current
● at AC-3 at 400 V rated value8 A
operating power at AC-3 at 400 V rated value3 kW
operating power for 3-phase motors at 400 V at 50 Hz1.1 ... 3 kW
Inputs/ Outputs
product function
● digital inputs parameterizableYes
● digital outputs parameterizableNo
number of digital inputs2
number of sockets
● for digital output signals0
● for digital input signals0
Supply voltage
type of voltage of the supply voltageDC
supply voltage 1 at DC24 ... 24 V
supply voltage 1 at DC rated value
● minimum permissible20.4 V
● maximum permissible28.8 V
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value21.6 ... 26.4 V
control supply voltage 1
● at DC rated value21.6 ... 26.4 V
● at DC24 ... 24 V
Installation/ mounting/ dimensions
mounting positionvertical, horizontal
fastening methodpluggable on terminal module
height290 mm
width65 mm
depth150 mm
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation0 ... 60 °C
● during storage-40 ... +70 °C
● during transport-40 ... +70 °C
relative humidity during operation5 ... 95 %
Communication/ Protocol
protocol is supported
● PROFIBUS DP protocolYes
● PROFINET protocolYes
design of the interface PROFINET protocolYes
product function bus communicationYes
protocol is supported AS-Interface protocolNo
address space memory of address range
● of the inputs2 byte
● of the outputs2 byte
type of electrical connection
● of the communication interfacevia backplane bus
● for communication transmissionvia backplane bus
Connections/ Terminals
type of electrical connection for main current circuitscrew-type terminals
type of electrical connection
● 1 for digital input signalsusing control module
● 2 for digital input signalsusing control module
type of electrical connection
● at the manufacturer-specific device interfaceplug
● for main energy infeedscrew-type terminals
● for load-side outgoing feederScrew-type terminals
● for main energy transmissionvia energy bus
● for supply voltage line-sidevia backplane bus
● for supply voltage transmissionvia backplane bus
UL/CSA ratings
operating voltage at AC at 60 Hz according to CSA and UL rated value600 V
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

Functional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesotherDangerous Good

Type Examination Certificate

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Confirmation

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/15/2020
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1301-0BB13-0AA2
Product DescriptionF-DS1E-X for ET 200S Fail-safe DOL starter Setting range 2.4...8 A Mechanical switching Electronic protection AC-3, up to 3 kW / 400 V expandable for brake control module for 2DI control module
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2020
Notes
Sucessor:The successor is the ET 200SP system with its compact motor starter modules.
Price data
Region Specific PriceGroup / Headquarter Price Group42D / 42D
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works10 Day/Days
Net Weight (kg)1,687 Kg
Packaging Dimension229,00 x 333,00 x 132,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209548602
UPC662643244748
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group4962
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 26.10.2016
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-05
eClass7.127-37-09-05
eClass827-37-09-05
eClass927-37-09-05
eClass9.127-37-09-05
ETIM5EC001037
ETIM6EC001037
ETIM7EC001037
ETIM8EC001037
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC001037 - Motor starter/Motor starter combination

Value Unit
Supporting protocol for SERCOS (EF006657) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Rated conditional short-circuit current, type 2, 230 V (EF009606) -A
Rail mounting possible (EF003972) -
Number of indicator lights (EF001965) -
Ambient temperature, upper operating limit (EF009603) -°C
Supporting protocol for DeviceNet Safety (EF007520) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for TCP/IP (EF003050) -
Number of command positions (EF001372) -
Rated power, 460 V, 60 Hz, 3-phase (EF009600) -kW
Supporting protocol for PROFINET CBA (EF007524) -
With fuse (EF006693) -
Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) -A
Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) -A
Rated conditional short-circuit current, type 2, 400 V (EF009605) -A
Supporting protocol for INTERBUS-Safety (EF006662) -
External reset possible (EF003426) -
Supporting protocol for CAN (EF003053) -
Supporting protocol for PROFIBUS (EF003052) -
Degree of protection (NEMA) (EF011959) -
Rated power, 575 V, 60 Hz, 3-phase (EF009601) -kW
Supporting protocol for PROFIsafe (EF007526) -
Number of auxiliary contacts as normally closed contact (EF001377) -
Suitable for emergency stop (EF001433) -
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for SafetyBUS p (EF007527) -
Rated operation power at AC-3, 230 V, 3-phase (EF009599) -kW
Supporting protocol for SUCONET (EF003060) -
Temperature compensated overload protection (EF009604) -
Supporting protocol for PROFINET IO (EF007525) -
Supporting protocol for Modbus (EF003057) -
Number of auxiliary contacts as normally open contact (EF001376) -
Supporting protocol for LON (EF003017) -
Supporting protocol for other bus systems (EF003062) -
Type of electrical connection for auxiliary- and control current circuit (EF006979) -
Supporting protocol for Data-Highway (EF003058) -
Supporting protocol for EtherNet/IP (EF007521) -
Type of motor starter (EF009598) Direct online starter (DOL)
With short-circuit release (EF006691) true
Rated control supply voltage Us at DC (EF003980) ['21.6', '26.4']V
Voltage type for actuating (EF008242) DC
Rated operation power at AC-3, 400 V (EF001364) 3.0kW
Rated operation current Ie (EF001443) -A
Rated operation current at AC-3, 400 V (EF009602) -A
Overload release current setting (EF002336) ['2.4', '8']A
Release class (EF006668) Other
Type of electrical connection of main circuit (EF006819) Screw connection
With transformer (EF000278) false
Coordination class according to IEC 60947-4-3 (EF012390) Class 2
Degree of protection (IP) (EF005474) IP20
Supporting protocol for ASI (EF003051) false
Width (EF000008) 65.0mm
Height (EF000040) 290.0mm
Depth (EF000049) 150.0mm
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1301-0BB13-0AA2 3RK1301-0BB13-0AA2 EN_3RK1301-0BB13-0AA2.pdf 168 Kbytes 3RK1301-0BB13-0AA2 3RK1301-0BB13-0AA2 EN_3RK1301-0BB13-0AA2.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
