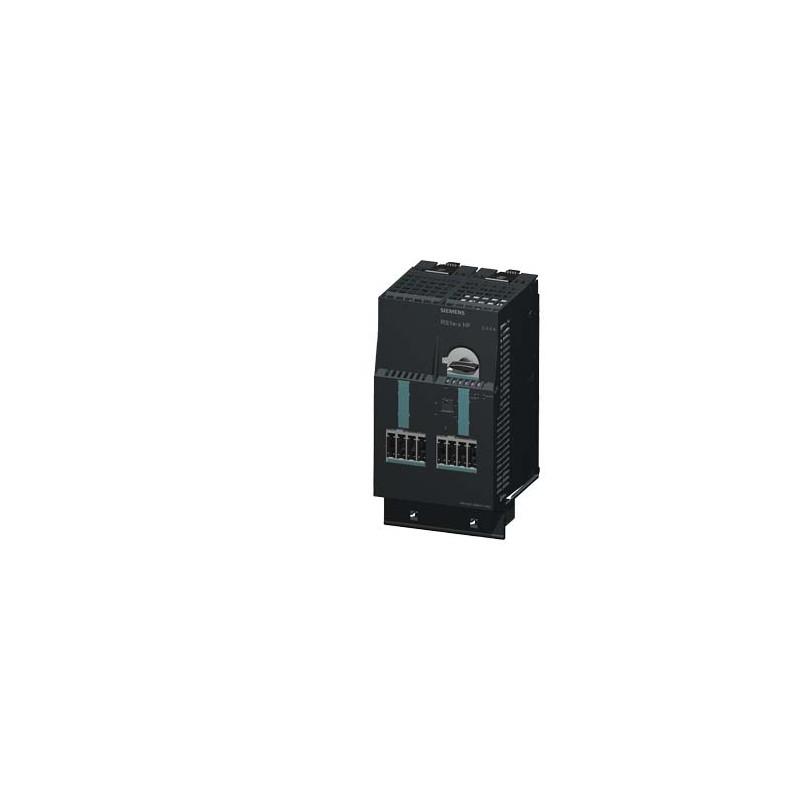

3RK1301-0BB10-1AB4 SIEMENS RS1E-X for ET200S High Feature reversing starter Setting range 2.4...8 A Mechanic.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

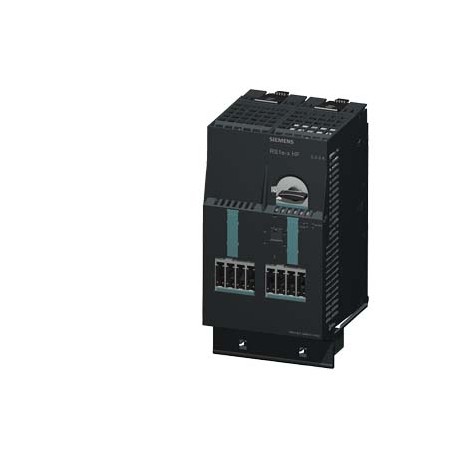

3RK1301-0BB10-1AB4 SIEMENS RS1E-X for ET200S High Feature reversing starter Setting range 2.4...8 A Mechanic..

3RK1301-0BB10-1AB4

SIEMENS

RS1E-X for ET200S High Feature reversing starter Setting range 2.4...8 A Mechanical switching Electronic protection AC-3, up to 3 kW / 400 V expandable for Brake control module 2DI module 2DI module Motor starter ES Circuit breaker signaling parameterizable DPV 1-capable PROFIENERGY-capable to PN

RS1E-X FOR ET200S INVERSES STARTER. HIGH FEATURE RANGE OF REGULATION 2,4...8A MECHANICAL MANEUVER ELECTRONIC PROTECTION AC-3/UP TO 3KW/400V EXPANDABLE FOR MODULE BRAKE CONTROL 2DI MODULE MODULE 2DI MOTOR STARTER IS SENALIZ. PARAMETERIZABLE AUTOMATIC SWITCH SUITABLE FOR DPV 1 SUITABLE FOR PROFIENERGY IN PN. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Motor starter/Motor starter combination

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
