3RH2131-2VB40
SIEMENS
1

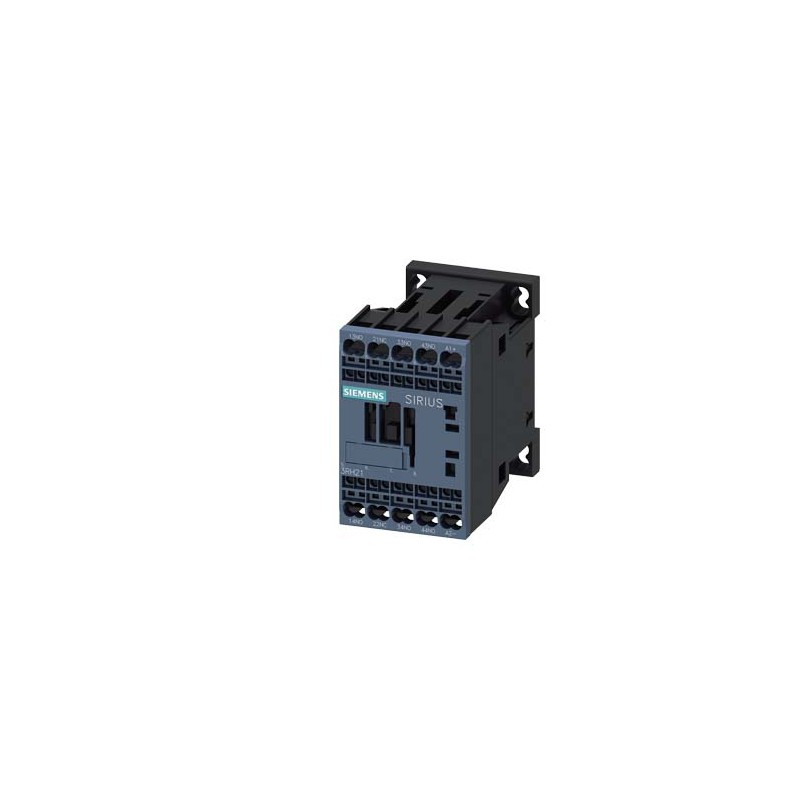

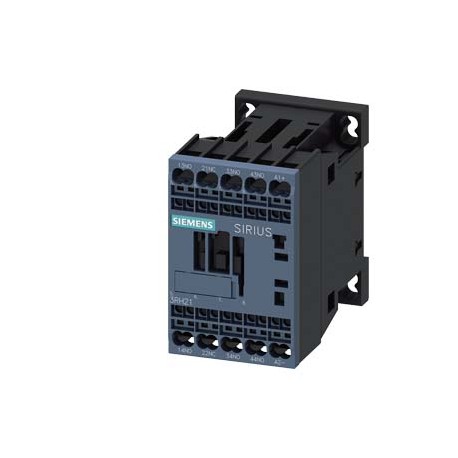

Coupling contactor relay, 3 NO + 1 NC, 24 V DC, 0.85 ... 1.85* US, with integrated diode, Size S00, Spring-type terminal
Low-voltage industrial components > Contactor relay
CONTROL AND CONTACTORS > Contactor relays
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | ||||||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3RH2131-2VB40 | |||||||||||||||||||||||||||||||||||||||
Product Description | Coupling contactor relay, 3 NO + 1 NC, 24 V DC, 0.85 ... 1.85* US, with integrated diode, Size S00, Spring-type terminal | |||||||||||||||||||||||||||||||||||||||
Product family | SIRIUS 3RH2 contactor relays, 4- and 8-pole | |||||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41A / 41A | |||||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
Metal Factor | LBP----- | |||||||||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 200 Day/Days | |||||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,320 Kg | |||||||||||||||||||||||||||||||||||||||
Packaging Dimension | 50,00 x 73,50 x 77,50 | |||||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
EAN | 4011209848979 | |||||||||||||||||||||||||||||||||||||||
UPC | 662643906660 | |||||||||||||||||||||||||||||||||||||||
Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
Product Group | 5331 | |||||||||||||||||||||||||||||||||||||||
Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 | |||||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Mounting method (EF000003) | - | |
Manual operation possible (EF005881) | - | |
Interface (EF000594) | - | |
With LED indication (EF005950) | - | |
Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
Voltage type for actuating (EF008242) | DC | |
Rated operation current Ie, 400 V (EF001378) | 3 | A |
Connection type auxiliary circuit (EF006820) | Spring clamp connection | |
Number of auxiliary contacts as normally closed contact (EF001377) | 1 | |
Number of auxiliary contacts as normally open contact (EF001376) | 3 | |
Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | - | |
Number of auxiliary contacts as normally open contact, leading (EF007282) | - | |
Number of auxiliary contacts as change-over contact (EF003531) | - | |
Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes | |
3RH2131-2VB40 3RH2131-2VB40 EN_3RH2131-2VB40.pdf | 276 Kbytes |
