> SIEMENS>CONTROL AND CONTACTORS>Contactors for switching motors>3RF2900-2TB88 SIEMENS control connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping p..
Previous Product Next Product

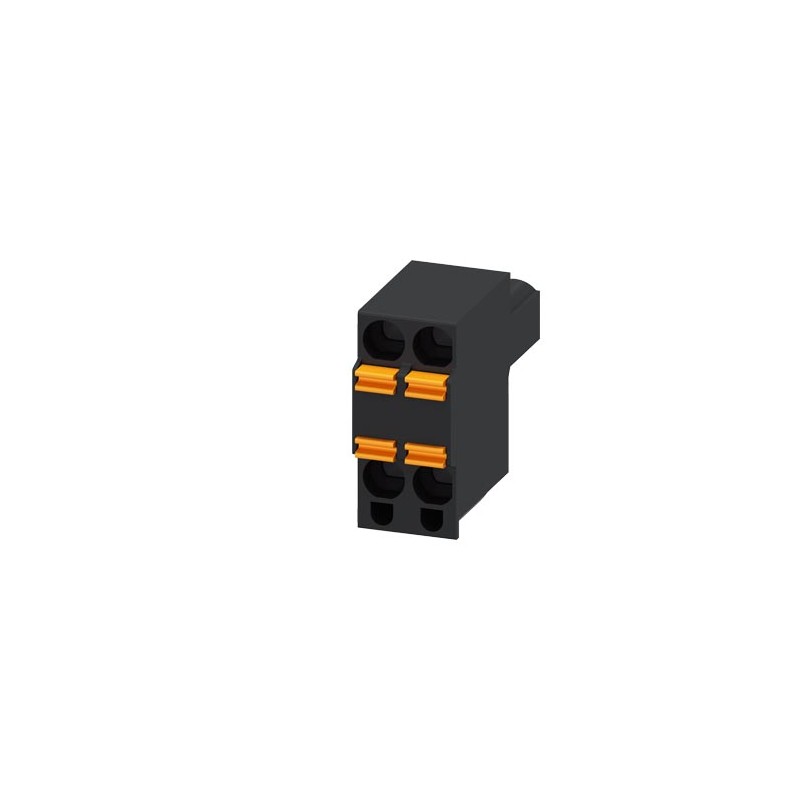

3RF2900-2TB88 SIEMENS control connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RF2900-2TB88 SIEMENS control connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping p..

3RF2900-2TB88

SIEMENS

10

control connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping points per contact color black

CONTROL CONNECTOR FOR 3RF20/21/22/3RF23/24 WITH SPRING TERMINALS. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Power contactor, AC switching

CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $117.57
Unit price: $11.76

Quantity Price
10+$11.76
20+$10.27
30+$10.08
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

control connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping points per contact color black
product brand nameSIRIUS
product designationcontrol plug
General technical data
product functionsolid-state relay / solid-state contactor 3RF2
degree of pollution3
shock resistance according to IEC 60068-2-2715g / 11 ms
vibration resistance according to IEC 60068-2-62g
reference code according to IEC 81346-2X
Substance Prohibitance (Date)07/01/2006
Main circuit
operating frequency rated value50 ... 60 Hz
derating temperature40 °C
Auxiliary circuit
number of CO contacts for auxiliary contacts0
Installation/ mounting/ dimensions
fastening methodclip-on
● side-by-side mountingYes
width10 mm
Connections/ Terminals
type of electrical connection
● for auxiliary and control circuitspring-loaded terminals
type of connectable conductor cross-sections
● for auxiliary and control contacts
— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
● at AWG cables for auxiliary and control contacts1x (AWG 20 ... 12)
stripped length of the cable for auxiliary and control contacts10 mm
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Ambient conditions
installation altitude at height above sea level maximum1 000 m
ambient temperature
● during storage-55 ... +80 °C
Electromagnetic compatibility
conducted interference
● due to burst according to IEC 61000-4-42 kV / 5 kHz behavior criterion 2
● due to conductor-earth surge according to IEC 61000-4-52 kV behavior criterion 2
● due to conductor-conductor surge according to IEC 61000-4-51 kV behavior criterion 2
● due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1
electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2
conducted HF interference emissions according to CISPR11Class A for industrial environment
field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformityother

Confirmation

EAC

RCM

EC/EU-Declaration of Conformity

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:3/17/2021
Date
5/9/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RF2900-2TB88
Product Descriptioncontrol connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping points per contact color black
Product familySIRIUS 3RF2 solid-state relays and solid-state contactors
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41C / 41C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works25 Day/Days
Net Weight (kg)0,006 Kg
Packaging Dimension49,00 x 113,50 x 54,50
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity10
Additional Product Information
EAN4011209899308
UPCNot available
Commodity Code85369010
LKZ_FDB/ CatalogIDCC-IC10
Product Group3726
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498

ETIM data

ETIM: EC000066 - Power contactor, AC switching

Value Unit
Rated operation power NEMA (EF011960) -kW
Type of electrical connection of main circuit (EF006819) -
Voltage type for actuating (EF008242) -
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Rated operation current Ie at AC-1, 400 V (EF001393) -A
Rated operation current Ie at AC-3, 400 V (EF001392) -A
Rated operation current Ie at AC-4, 400 V (EF008495) -A
Modular version (EF001126) true
Number of auxiliary contacts as normally open contact (EF001376) -
Number of auxiliary contacts as normally closed contact (EF001377) -
Number of normally closed contacts as main contact (EF001375) -
Number of main contacts as normally open contact (EF001374) -
Rated operation power at AC-4, 400 V (EF008496) -kW
Rated operation power at AC-3, 400 V (EF001364) -kW
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3RF2900-2TB88 3RF2900-2TB88 EN_3RF2900-2TB88.pdf 133 Kbytes 3RF2900-2TB88 3RF2900-2TB88 EN_3RF2900-2TB88.pdf
