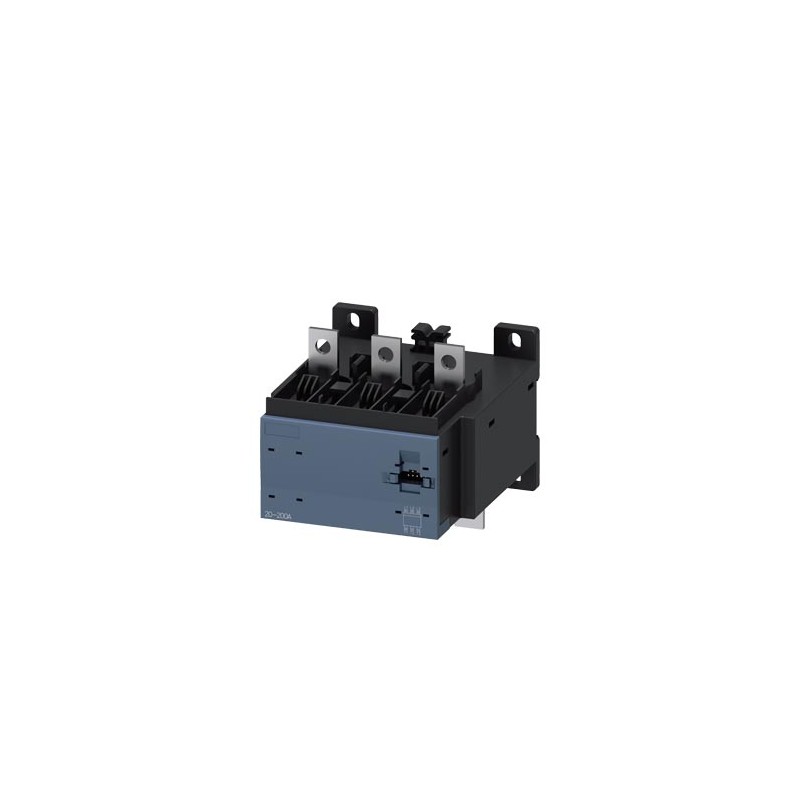

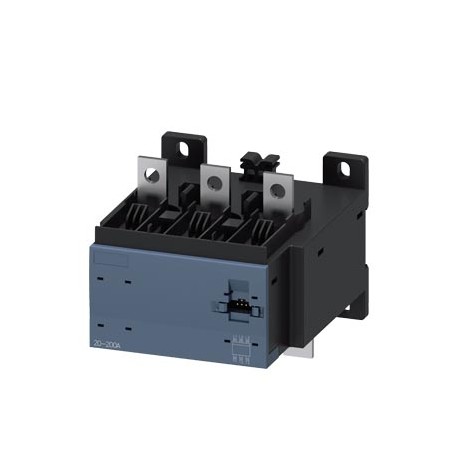

3RB2956-2TH2 SIEMENS Current transformer 20...200 A for 3RB22/23/24 Size S6 Contactor mounting/stand-alone i.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RB2956-2TH2 SIEMENS Current transformer 20...200 A for 3RB22/23/24 Size S6 Contactor mounting/stand-alone i..

3RB2956-2TH2

SIEMENS

Current transformer 20...200 A for 3RB22/23/24 Size S6 Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: --

SIRIUS, overload relay accessory, Current transformer, 20...200 A for 3RB22/23 size S6 mounting on SIRIUS Contactor/independent. Main connections: to bars Auxiliary connections: --.

More details


CONTROL AND CONTACTORS > Thermal relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $496.28
Unit price: $496.28
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Current transformer 20...200 A for 3RB22/23/24 Size S6 Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: --
product brand nameSIRIUS
product designationCurrent measuring module
General technical data
type of protection according to ATEX directive 2014/34/EUEx II (2) GD
certificate of suitability according to ATEX directive 2014/34/EUPTB 05 ATEX 3022
Substance Prohibitance (Date)07/01/2006
Main circuit
adjustable current response value current of the current-dependent overload release20 ... 200 A
operating voltage
● at AC-3e rated value maximum1 000 V
operational current rated value200 A
operational current at AC-3e at 400 V rated value200 A
Installation/ mounting/ dimensions
fastening methodContactor mounting/stand-alone installation
Connections/ Terminals
type of electrical connection
● for main current circuitscrew-type terminals
Safety related data
protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with box terminal/cover
Certificates/ approvals

Downloads and manuals

General Product ApprovalFor use in hazardous locations

CSA

Confirmation

CCC

UL

EAC

ATEX-EC-Type-Examination-Certificate

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

Marine / Shippingother

RINA / Registro Italiano Navale

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:2/9/2022
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RB2956-2TH2
Product DescriptionCurrent transformer 20...200 A for 3RB22/23/24 Size S6 Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: --
Product familyCurrent measuring modules for 3RB22, 3RB23, 3RB24
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41G / 41G
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works1 Day/Days
Net Weight (kg)1,003 Kg
Packaging Dimension140,00 x 145,00 x 175,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209632738
UPC040892553789
Commodity Code85043180
LKZ_FDB/ CatalogIDCC-IC10
Product Group5812
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-02
eClass7.127-37-92-02
eClass827-37-92-02
eClass927-37-92-02
eClass9.127-37-92-02
ETIM5EC002027
ETIM6EC002027
ETIM7EC002027
ETIM8EC002027
UNSPSC1439-12-10-32
UNSPSC1539-12-15-52

ETIM data

ETIM: EC002027 - Accessories/spare parts for overload protection device

Value Unit
Type of accessory/spare part (EF000215) -
