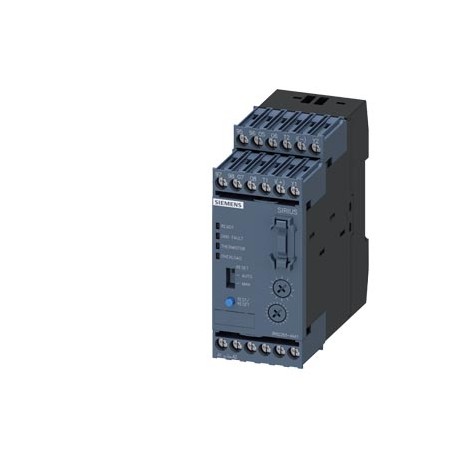

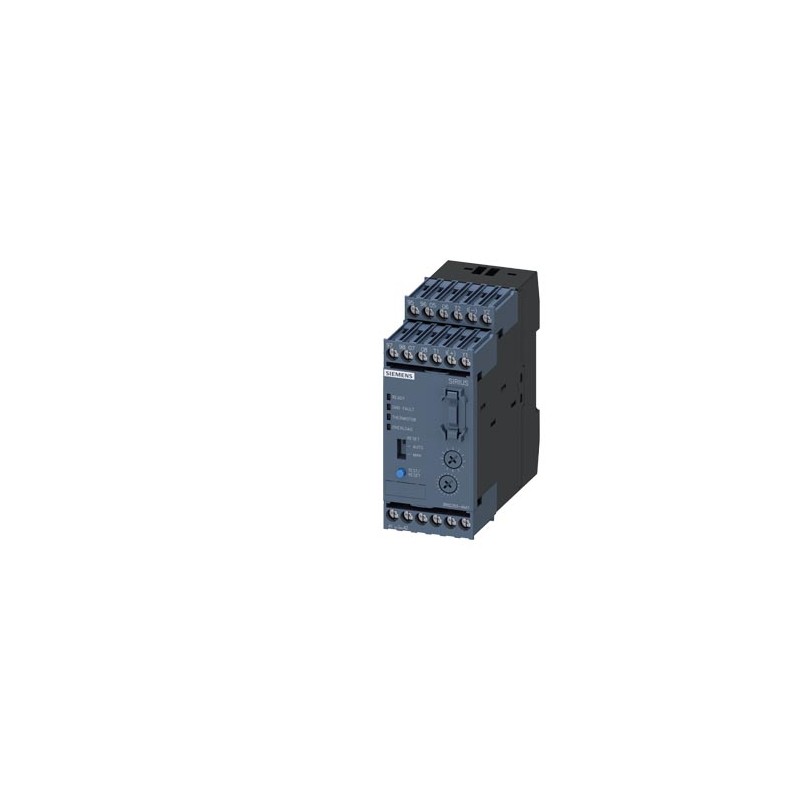

3RB2283-4AA1 SIEMENS Evaluation unit for full motor protection (monostable) Size S00...S12, class 5...30 Sta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RB2283-4AA1 SIEMENS Evaluation unit for full motor protection (monostable) Size S00...S12, class 5...30 Sta..

3RB2283-4AA1

SIEMENS

Evaluation unit for full motor protection (monostable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Screw terminal Manual-Automatic-Reset

More details


Low-voltage industrial components > Electronic overload relay

CONTROL AND CONTACTORS > Thermal relays

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $244.10
Unit price: $244.10

Quantity Price
1+$244.10
2+$240.33
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

Evaluation unit for full motor protection (monostable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Screw terminal Manual-Automatic-Reset
product brand nameSIRIUS
product designationsolid-state overload relay
product type designation3RB22
General technical data
size of overload relayS00 ... S12
size of contactor can be combined company-specificS00 ... S12
power loss [W] for rated value of the current at AC in hot operating state0.5 W
● per pole0.17 W
insulation voltage with degree of pollution 3 at AC rated value300 V
surge voltage resistance rated value4 kV
type of protection according to ATEX directive 2014/34/EUEx II (2) GD
certificate of suitability according to ATEX directive 2014/34/EUPTB 05 ATEX 3022
reference code according to IEC 81346-2F
Substance Prohibitance (Date)05/28/2009
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
● during transport-40 ... +80 °C
relative humidity during operation100 %
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release0.3 ... 630 A
operational current rated value630 A
control supply voltage at AC
● at 50 Hz rated value24 ... 240 V
● at 60 Hz rated value24 ... 240 V
Auxiliary circuit
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
operational current of auxiliary contacts at AC-15
● at 24 V6 A
● at 110 V6 A
● at 120 V6 A
● at 125 V6 A
● at 230 V3 A
operational current of auxiliary contacts at DC-13
● at 24 V2 A
● at 60 V0.55 A
● at 110 V0.3 A
● at 125 V0.3 A
● at 220 V0.2 A
Protective and monitoring functions
trip classCLASS 5, 10, 20 and 30 adjustable
Short-circuit protection
design of the fuse link
● for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 6 A
Installation/ mounting/ dimensions
mounting positionany
fastening methodstand-alone installation
height111 mm
width45 mm
depth95 mm
required spacing
● with side-by-side mounting
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
● for grounded parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side6 mm
— downwards0 mm
● for live parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side6 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYes
type of electrical connection
● for auxiliary and control circuitscrew-type terminals
type of connectable conductor cross-sections
● for auxiliary contacts
— finely stranded with core end processing0.5 ... 2.5 mm², 2x (0.5 ... 1.5 mm²)
● at AWG cables for auxiliary contacts2x (24 ... 16)
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

For use in hazardous locationsDeclaration of ConformityTest CertificatesMarine / Shipping

ATEX-EC-Type-Examination-Certificate

EC/EU-Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

Marine / Shippingother

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:2/9/2022
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RB2283-4AA1
Product DescriptionEvaluation unit for full motor protection (monostable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Screw terminal Manual-Automatic-Reset
Product family3RB22, 3RB23 for high-feature applications
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41G / 41G
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,305 Kg
Packaging Dimension115,00 x 130,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209641983
UPC040892553680
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5812
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 28.05.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dicyclohexyl phthalate (DCHP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Tris(2-chloroethyl) phosphate (TCEP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-15-02
eClass7.127-37-15-02
eClass827-37-15-02
eClass927-37-15-02
eClass9.127-37-15-02
ETIM5EC001080
ETIM6EC001080
ETIM7EC001080
ETIM8EC001080
IDEA45365
UNSPSC1439-12-23-30
UNSPSC1539-12-23-30

ETIM data

ETIM: EC001080 - Electronic overload relay

Value Unit
Rated control supply voltage Us at AC 60HZ (EF003979) -V
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Reset function input (EF011940) -
Reset function automatic (EF011941) -
Type of electrical connection of main circuit (EF006819) -
Rated control supply voltage Us at DC (EF003980) -V
Reset function push-button (EF011942) -
Voltage type for actuating (EF008242) -
Adjustable current range (EF008211) ['0.3', '630']A
Mounting method (EF000003) Separate positioning
Number of auxiliary contacts as normally closed contact (EF001377) 2
Number of auxiliary contacts as normally open contact (EF001376) 2
Number of auxiliary contacts as change-over contact (EF003531) 0
Release class (EF006668) Other
