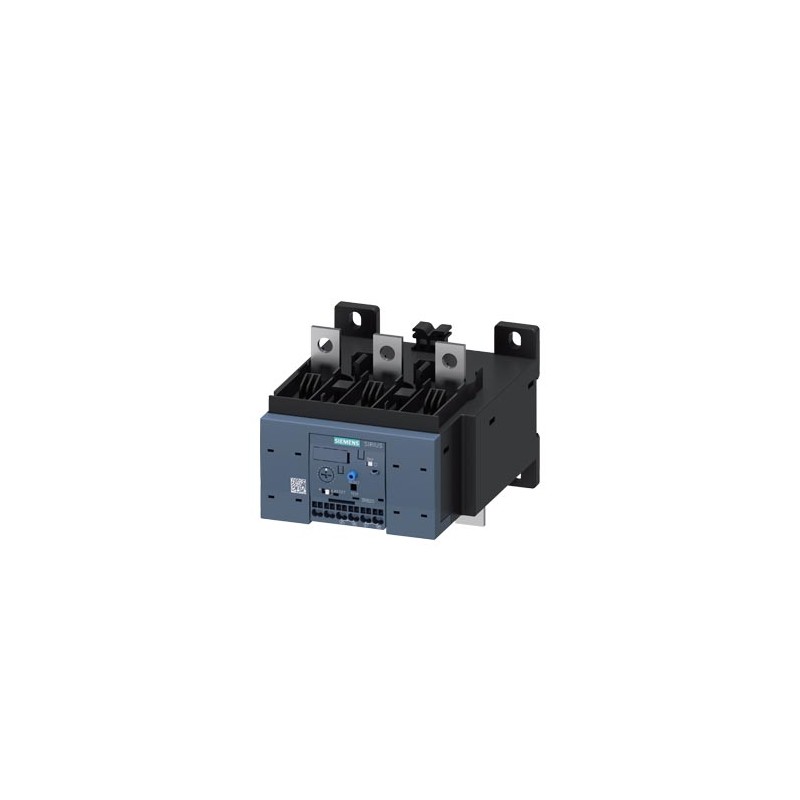

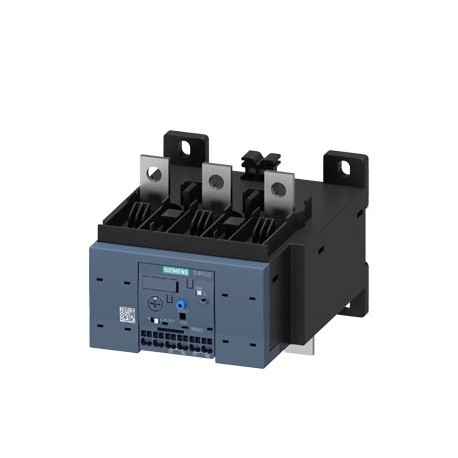

3RB2056-1FF2 SIEMENS Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/st..
3RB2056-1FF2
SIEMENS
Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset
SIRIUS Overload relay 50...200 A for motor protection size S6, Class 10 mounting on Sirius Contactor. independent. Main connections: to bars Auxiliary connections: terminals Spring connection manual-automatic reset..
CONTROL AND CONTACTORS > Thermal relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RB2056-1FF2 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset | |||||||||||||||||||||||||||||||||||||||
| Product family | 3RB20, 3RB21 for standard applications | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41G / 41G | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99 | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 110 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,069 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 136,00 x 147,00 x 177,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209638273 | |||||||||||||||||||||||||||||||||||||||
| UPC | 040892553451 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5808 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001080 - Electronic overload relay
| Value | Unit | |
|---|---|---|
| Reset function automatic (EF011941) | - | |
| Reset function input (EF011940) | - | |
| Mounting method (EF000003) | - | |
| Reset function push-button (EF011942) | - | |
| Adjustable current range (EF008211) | ['50', '200'] | A |
| Type of electrical connection of main circuit (EF006819) | Other | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Release class (EF006668) | CLASS 10 | |
| Voltage type for actuating (EF008242) | - |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3RB2056-1FF2 3RB2056-1FF2 EN_3RB2056-1FF2.pdf | 349 Kbytes |
|
